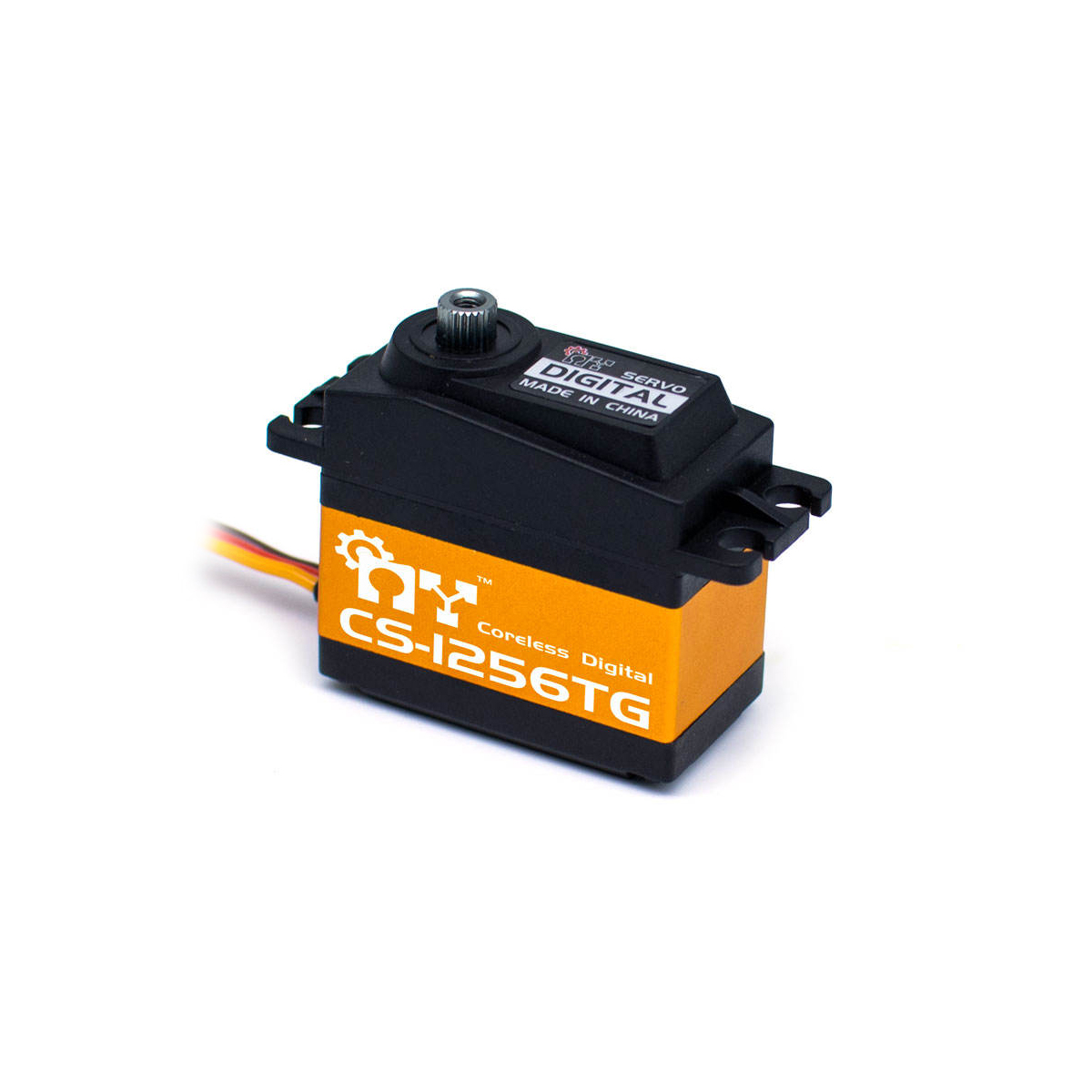

MY Servo CS-1256TG 6V 20kg Titanium Alloy Aluminum Gear Coreless Motor High Torque Digital Servo
MY Servo CS-1256TG 6V 20kg Titanium Alloy Aluminum Gear Coreless Motor High Torque Digital Servo
6.0V 20kg high performance coreless standard digital servo

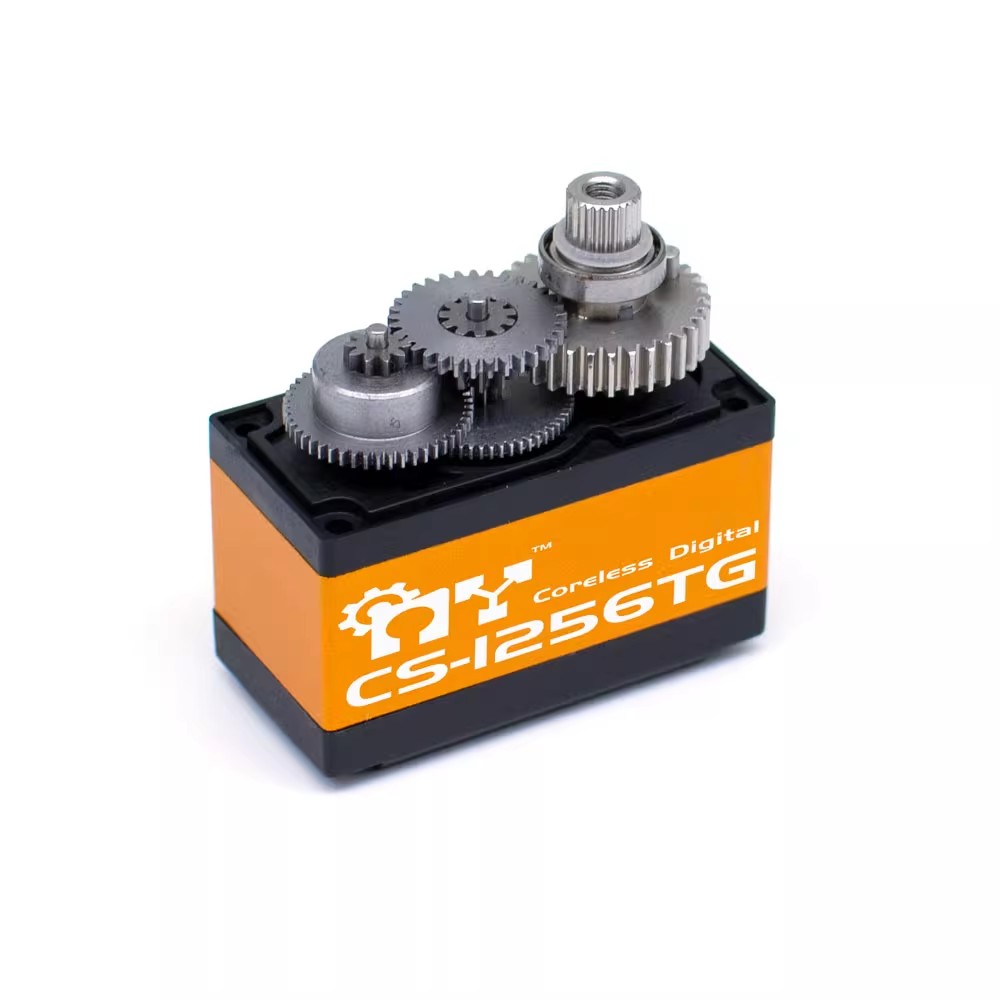

High precision titanium alloy aluminum gears
Aluminum mid shell structure housing
Double ball bearings

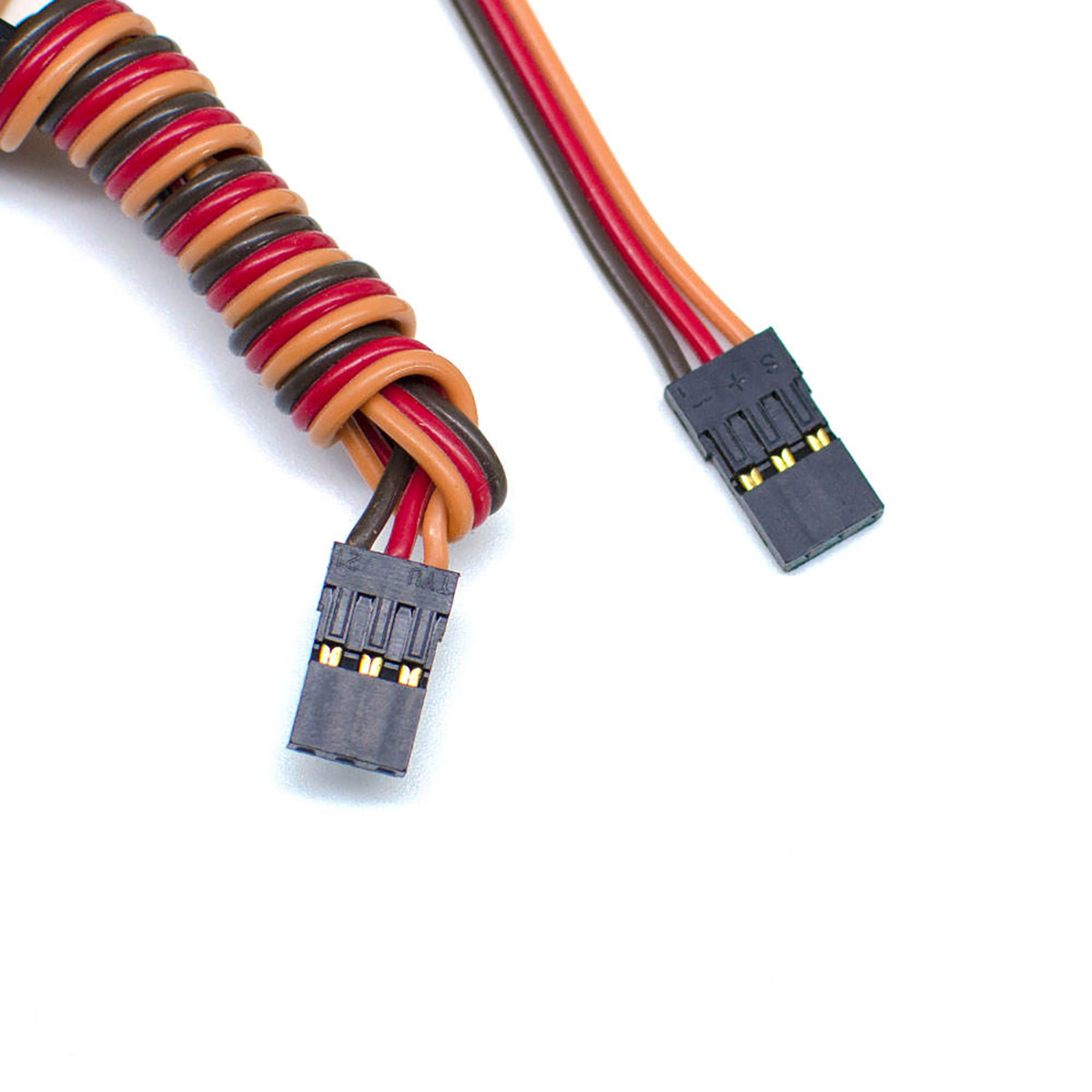

JR plug
High torque, ultra long service life, low noise
32 bit programmable servo
Model: CS-1256TG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor: Coreless Motor
Operating Speed 4.8V): 0.18sec/60°
Operating Speed (6.0V): 0.15sec/60°
Stall Torque (4.8V): 16.0kg.cm
Stall Torque (6.0V): 20.0kg.cm

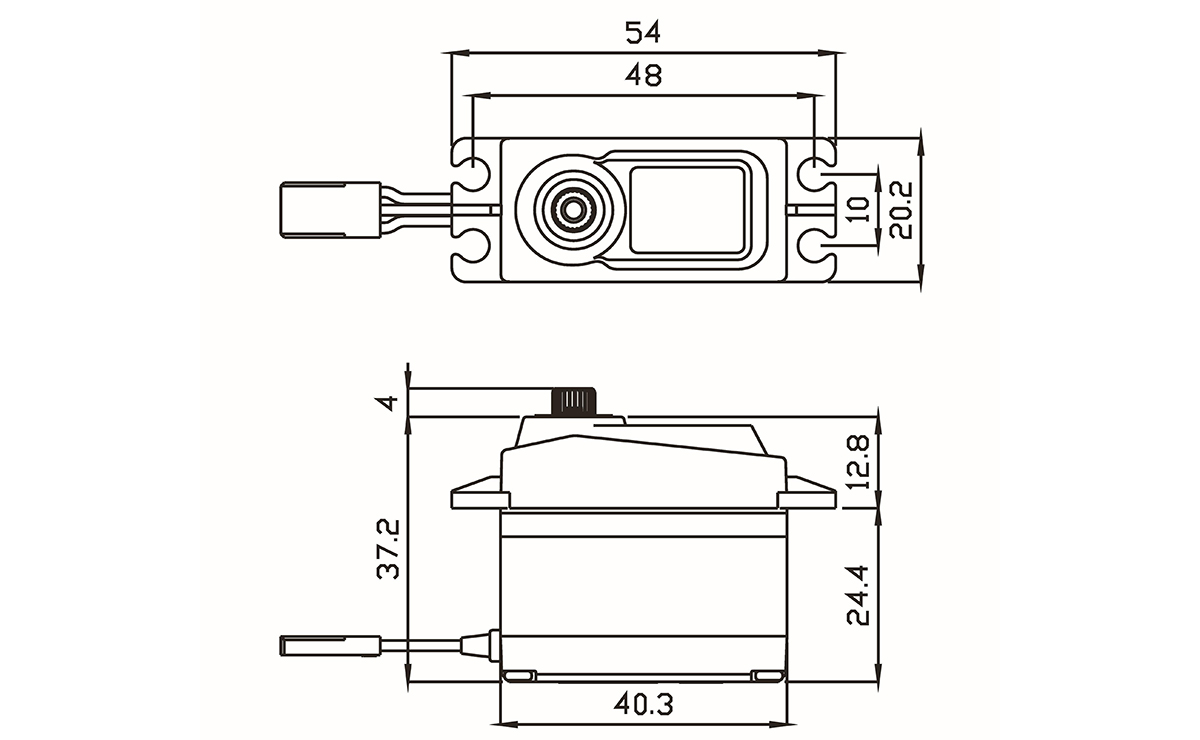

Dimensions: 40.3×20.2×37.2mm
Weight: 64g
Connector Wire Length: JR 265mm
Bearing: 2BB
Output Gear Spline: 25T

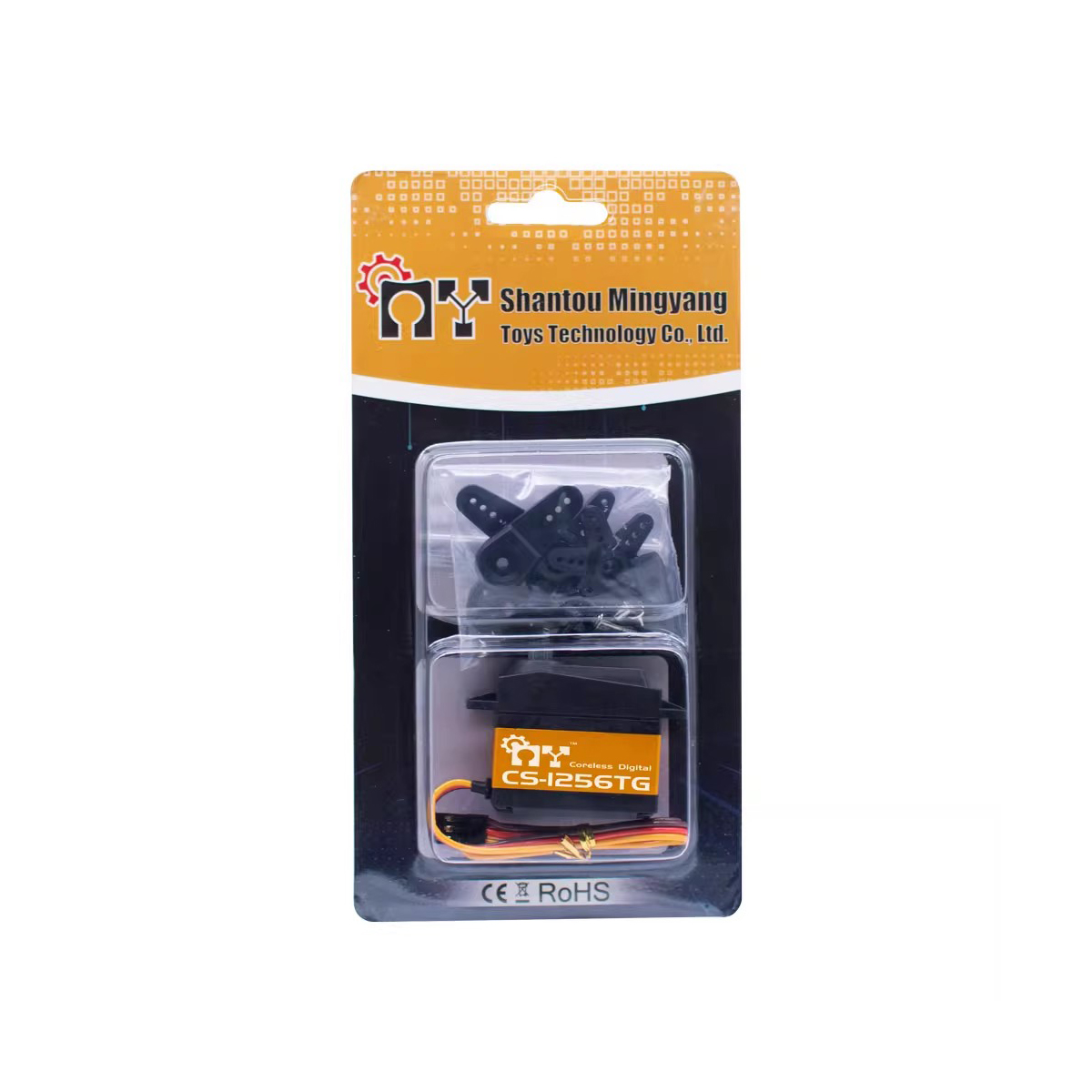

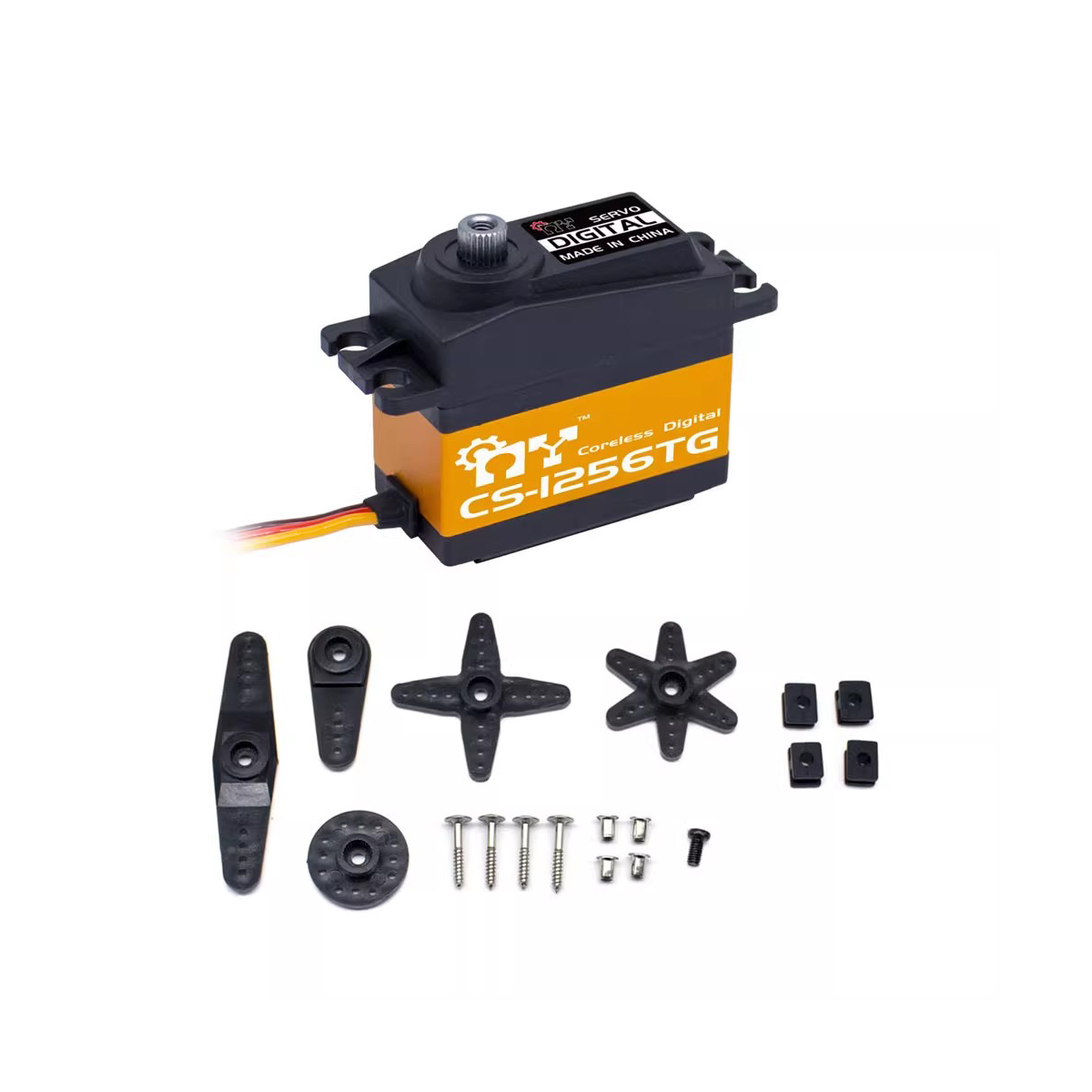

CS-1256TG Servo x1
Pack of Accessories x1
