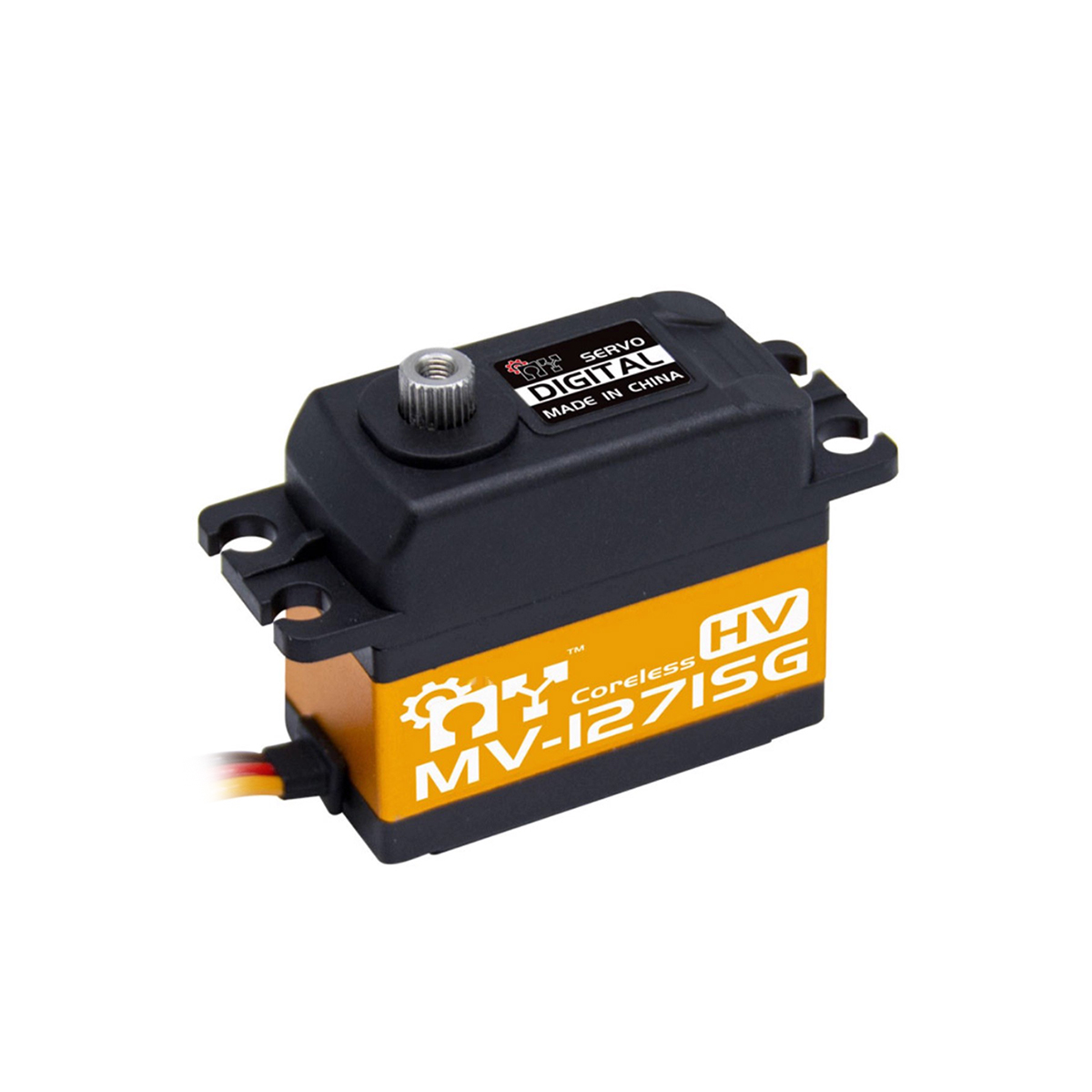

MY Servo MV-1271SG 7.4V 25kg Steel Gear Coreless Motor 32-Bit Programmable Digital Servo
7.4V 25kg high performance coreless standard digital servo
High precision stainless steel gears
Aluminum mid shell structure housing
Double ball bearings
JR plug

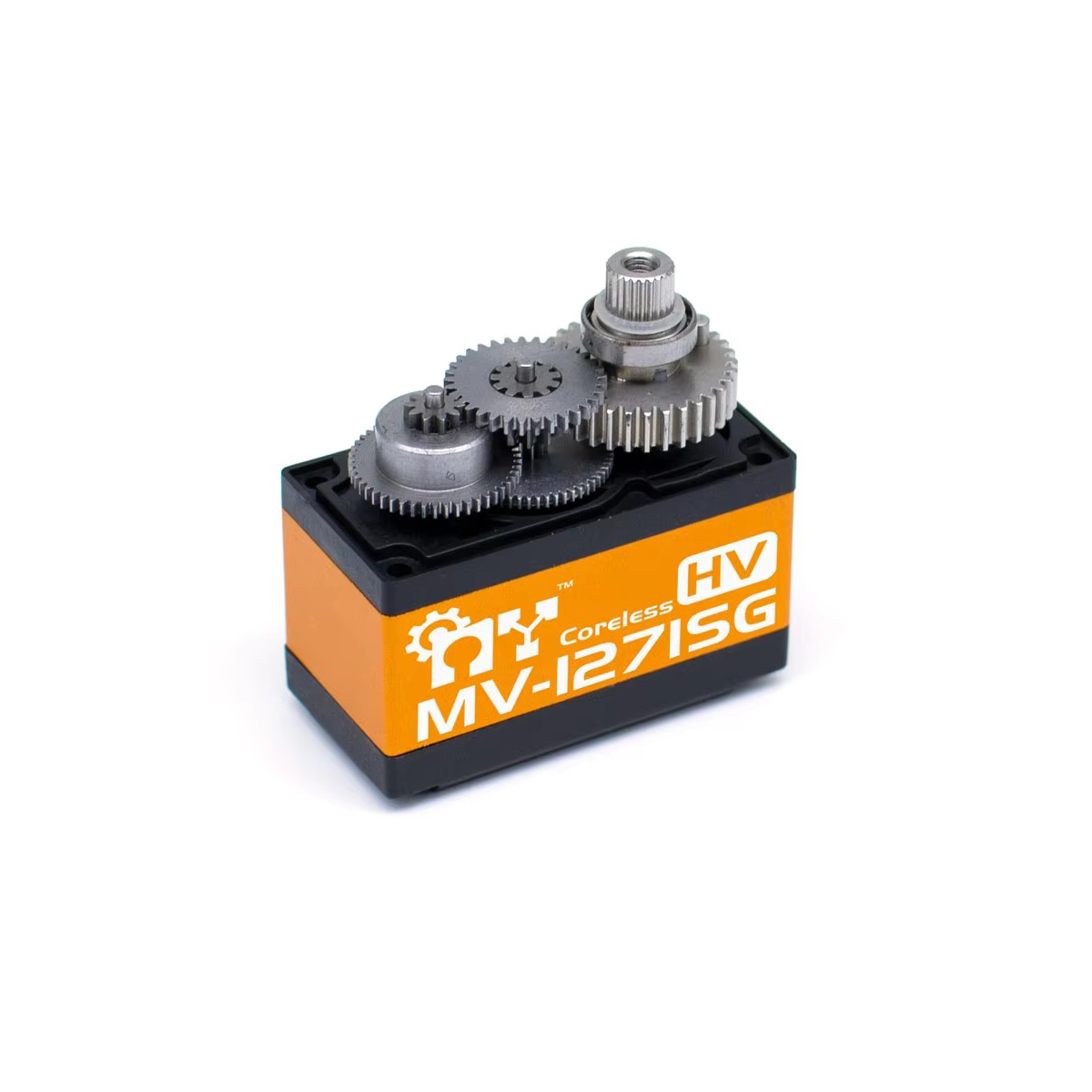

Super strong steel gears ensure long service life, durability and lower noise
32 bit programmable servo
Model: MV-1271SG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor: Coreless Motor
Operating Speed 6.0V): 0.11sec/60°
Operating Speed (7.4V): 0.08sec/60°
Stall Torque (6.0V): 20.0kg.cm
Stall Torque (7.4V): 25.0kg.cm

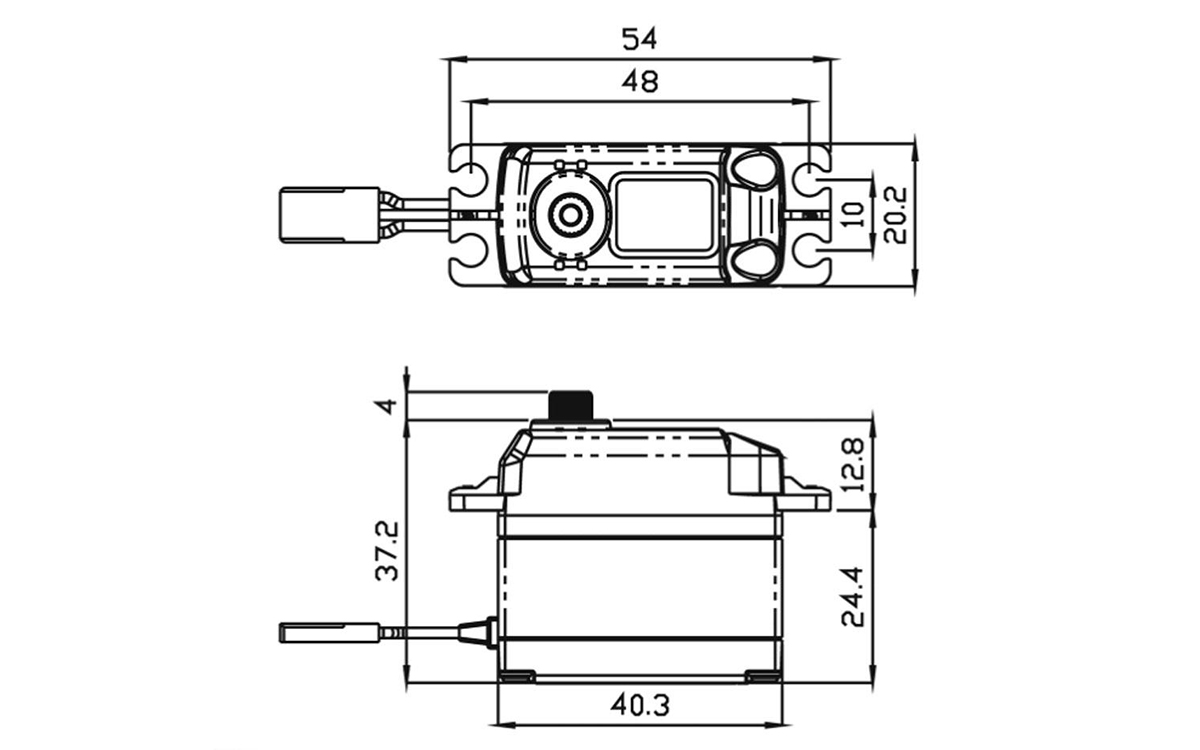

Dimensions: 40.3×20.2×37.2mm
Weight: 63g
Connector Wire Length: JR 265mm
Bearing: 2BB
Output Gear Spline: 25T

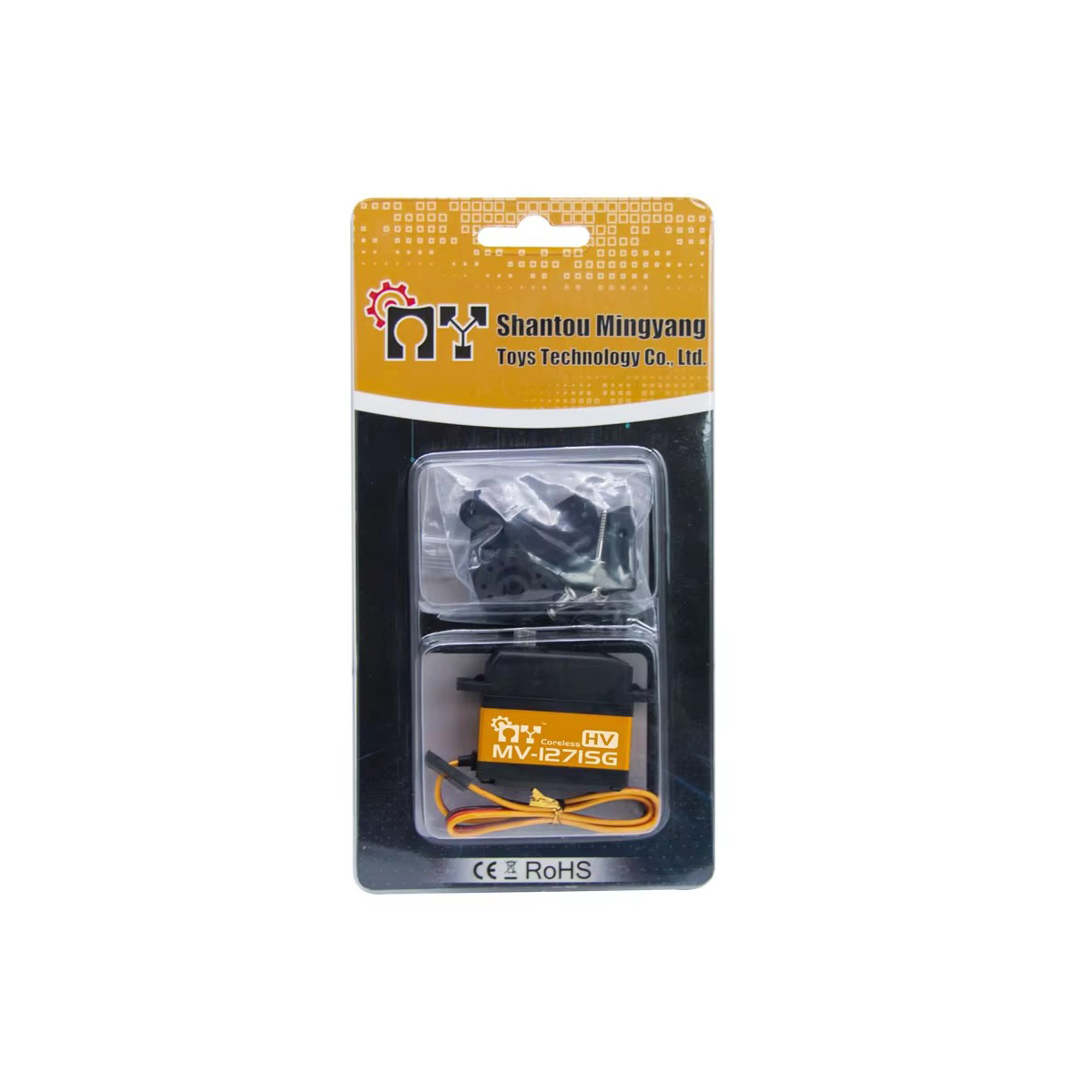

MV-1271SG Servo x1

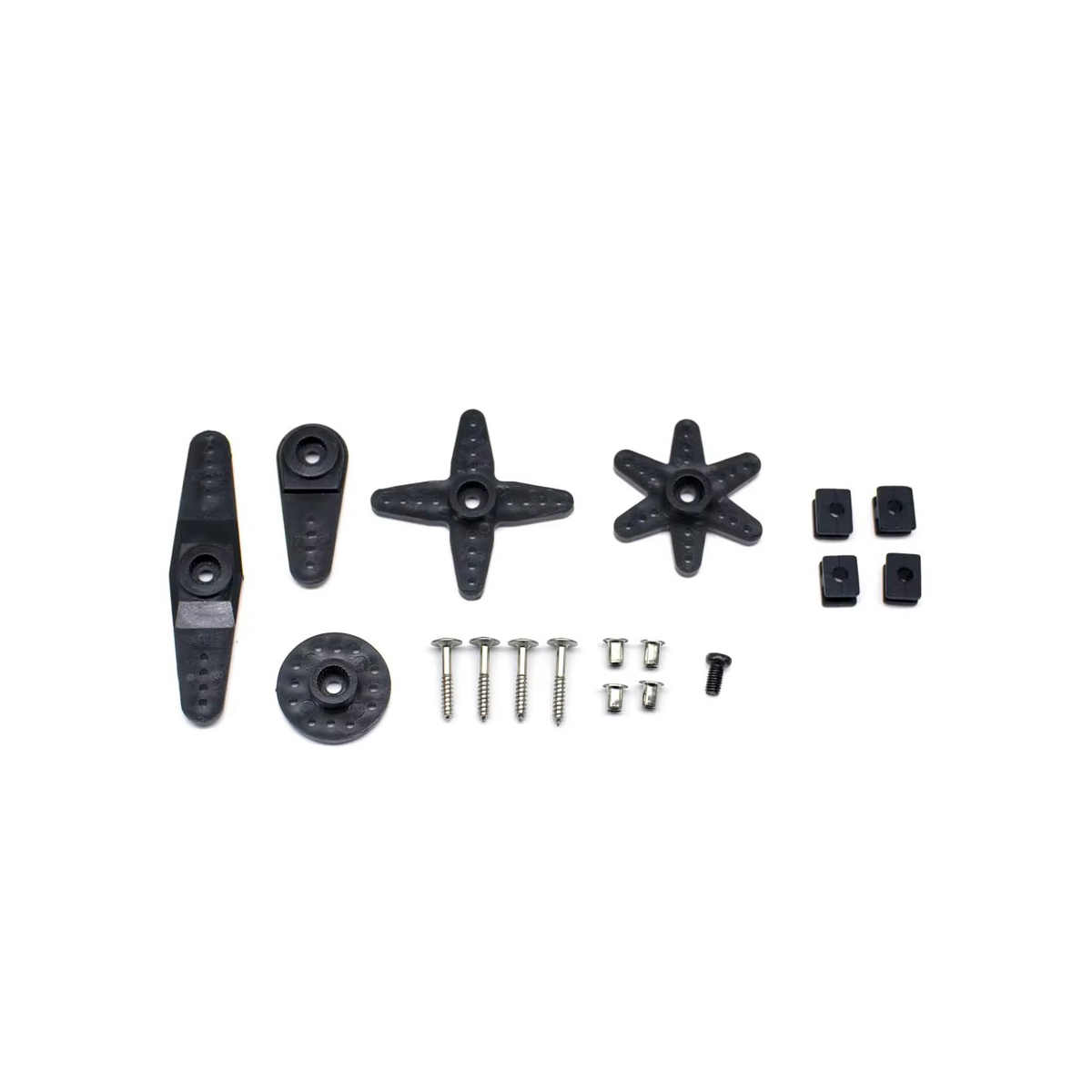

Pack of Accessories x1
