PDI-HV5523MG JX Servo 23KG 8.4V 0.16 Sec Metal Gear Standard Servo for 1:8 1:10 RC Car Robot Airplane
PDI-HV5523MG JX Servo 23KG 8.4V 0.16 Sec Metal Gear Standard Servo for 1:8 1:10 RC Car Robot Airplane
— High performance HV digital standard servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— Dual ball bearings

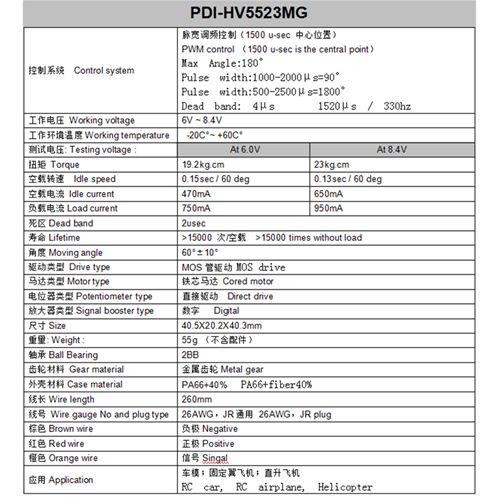

Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16 sec/60°
Stall Torque (6.0V): 19.2 kg.cm
Stall Torque (8.4V): 23 kg.cm

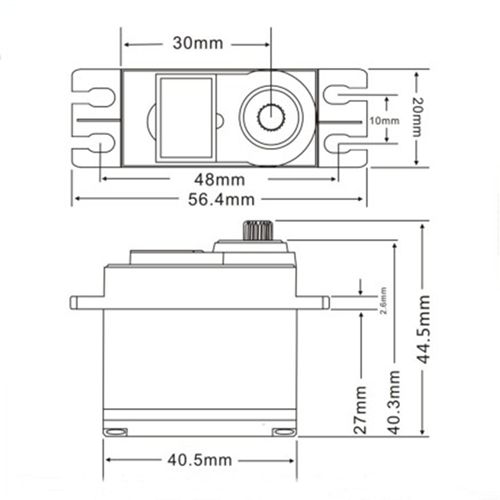

Dimensions: 40.5X20.2X38mm
Weight: 55.6 g
Connector Wire Length: JR 265 mm
Bearing: 2BB

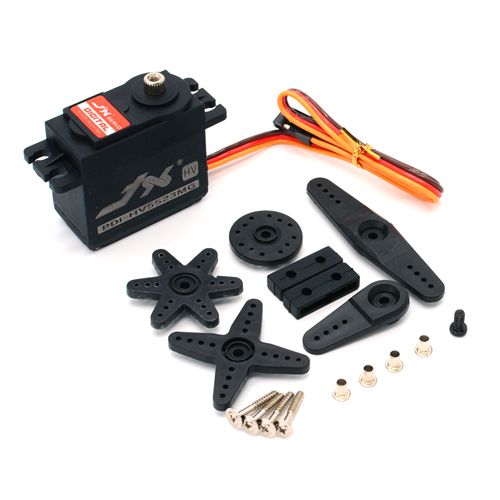

PDI-HV5523MG Servo x1
Set of Accessories x1
