PMC006B4 RS485 Stepper motor driver CAN Bus 2.0B communication miniature stepper motor controller
PMC006B4 RS485 Stepper motor driver CAN Bus 2.0B communication miniature stepper motor controller

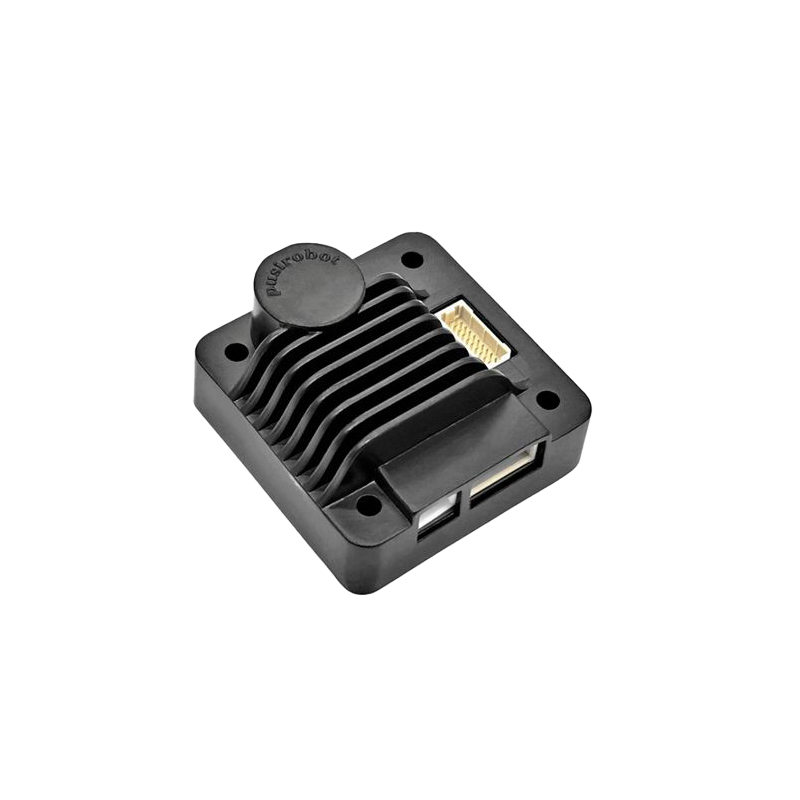

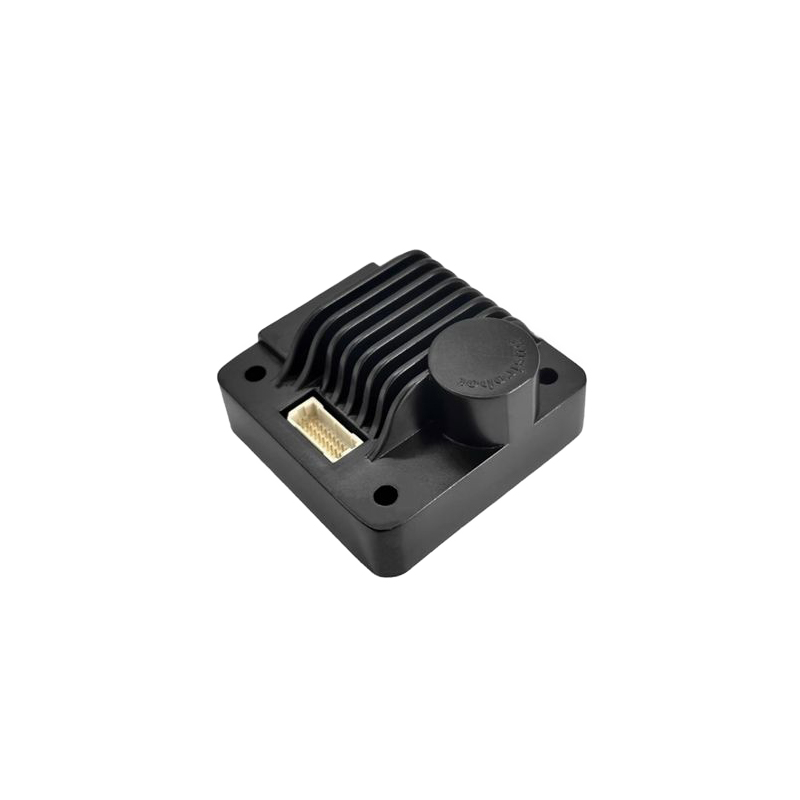

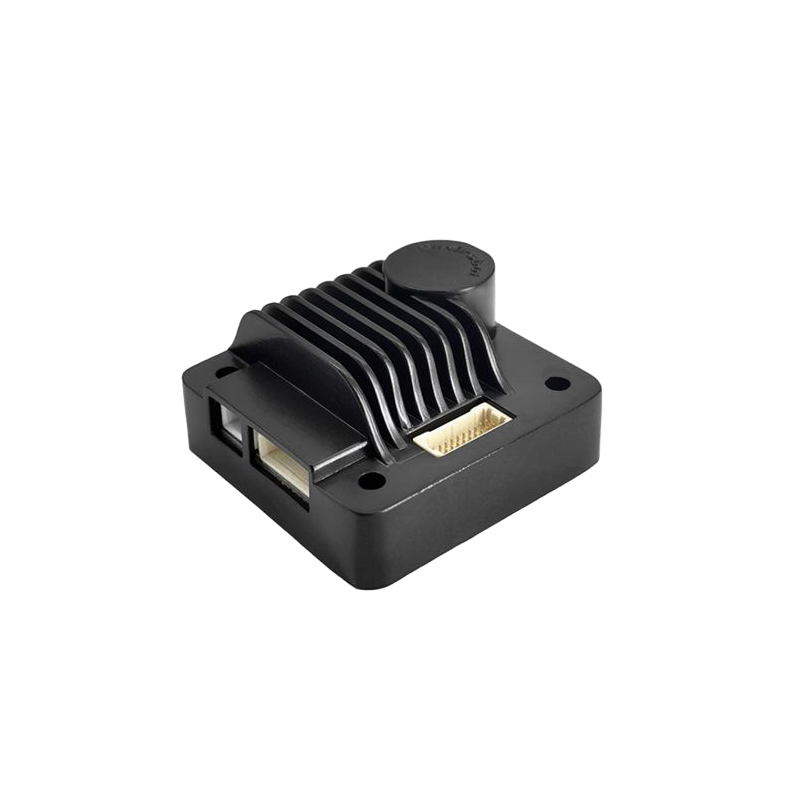

This is a miniature stepper controller which can be mounted onto NEMA size 17, 23 directly or a mounting plate Programmable networking stepper controller, it’s easy to control at most 120 pieces stepper motors n controllers by one upper host PC, PLC or Tablet PC
Wide supply voltage 12-48VDC Current per phase 3A or 6A, instruction adjustable Full step to 256th micro-stepping resolution Dual full H-bridge with PWM constant current control
Communications ProtocoAl: CANopen/ModbusRTU
Operational voltage: DC 12V – 48V
Microstep: 0/2/4/8/16/32/64/128/256
Close loop type: Support external incremental encoder
Number: Number of digital input ports: 1
Type: Type of digital input ports: 0 – 3.3V
Number: Number of analog input ports: 1
Type: Type of analog input ports: 0 – 3.3V or 4 – 20mA
Number: Number of digital output ports: 1
Type: Type of digital output ports: 0 – 5V
Number of limits: 2
Operational temperature: -40 – 80℃
1×PMC006B4
