Power HD WH-80KG High Torque Waterproof Metal Gear Digital Servo For 1/5 1/6 SCX6 Off-Road Truck Crawler RC Car

SKU HD-WH80KG Category Tags , Brand:

Power HD WH-80KG High Torque Waterproof Metal Gear Digital Servo For 1/5 1/6 SCX6 Off-Road Truck Crawler RC Car

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

WH-80KG aAll Metal CNC Shell High Torque Steering Gear With Double Bearings And Torque Up To 80KG Under 8.4V Voltage is Equipped With Stainless Steel Gears To Better Ensure The Gear Strength Of Large-Scale Model Cars During Driving.

The Products Are Compatible With Most 1 / 5 and 1 / 6 Scale Climbing, Bigfoot, Short Truck and Other Models On The Market, Such As Axial 1 / 6 Scx6 Climbing Car, Losi 1 / 6 Super Baja Rey Short Truck Large Scale Model Cars Such As Losi Super Rock Rey Desert Truck, Arrma 1 / 5 Kraton Katun RTR Truck, Arrma 1 / 5 Kraton Katun ExB Truck, Arrma 1 / 5 Outcast RTR Truck For Exile Of Vagrants, Arrma 1 / 5 Outcast ExB Truck For Exile Of Vagrants, etc. 15T Output Gear Spline Directly Upgrades The Original Steering Gear.

Torque(6.0V): 60.0 kg-cm / ( 833.2 oz/in )
Torque(7.4V): 75.0 kg-cm / ( 1041.6 oz/in )
Torque(8.4V): 80.0 kg-cm / ( 1111.0 oz/in )
Speed: 0.20 sec (6.0V) │ 0.18 sec (7.4V)
Speed: 0.17 sec (8.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 186 g (6.56 oz)
Horn gear spline: 15T
Bearing Type:Ball Bearing x 2
Gear Type:Steel
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz

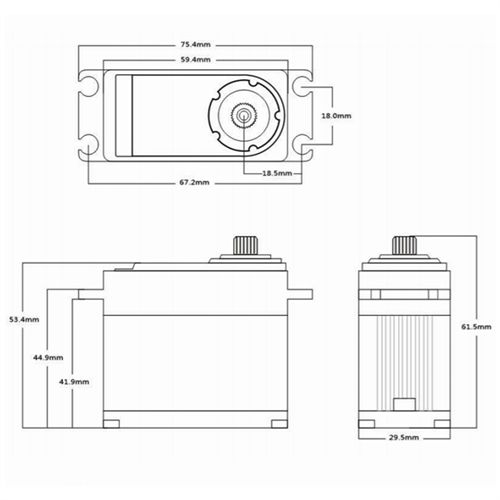

Size:59.4 x 29.5 x 53.4 mm ( 2.34 x 1.16 x 2.10 in)

WH-80KG Digital Servo x1
Accessories x1
