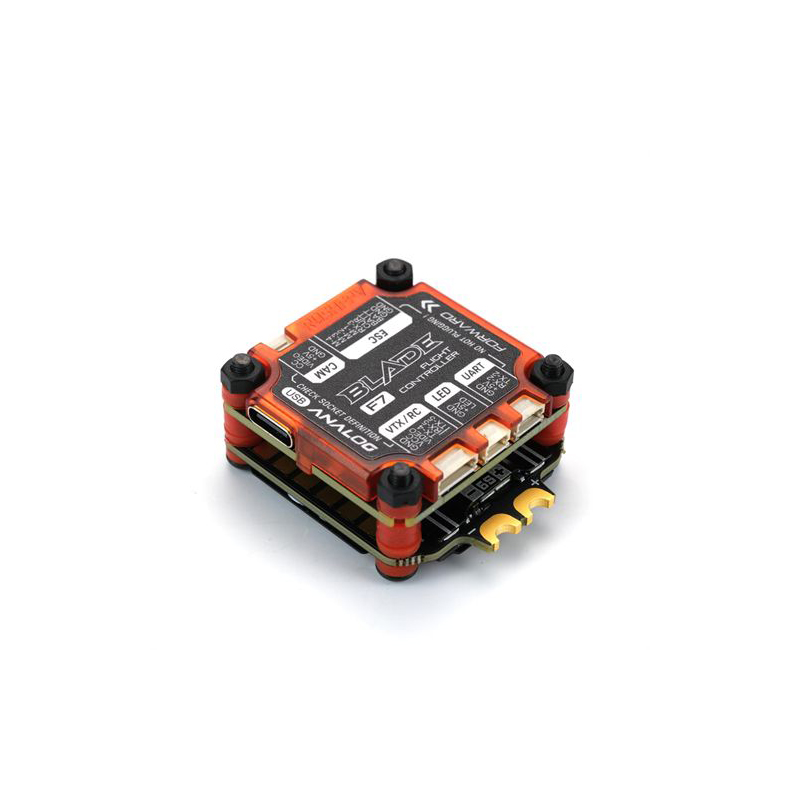

RUSHFPV RUSH BLADE V2 F722 Analog / Digital Flight Controller Extreme 60A 128K BLHELI32 4in1 ESC Stack
RUSHFPV RUSH BLADE V2 F722 Analog / Digital Flight Controller Extreme 60A 128K BLHELI32 4in1 ESC Stack
RUSHFPV RUSH BLADE V2 F722 Analog Flight Controller Extreme 60A 128K BLHELI32 4in1 ESC Stack

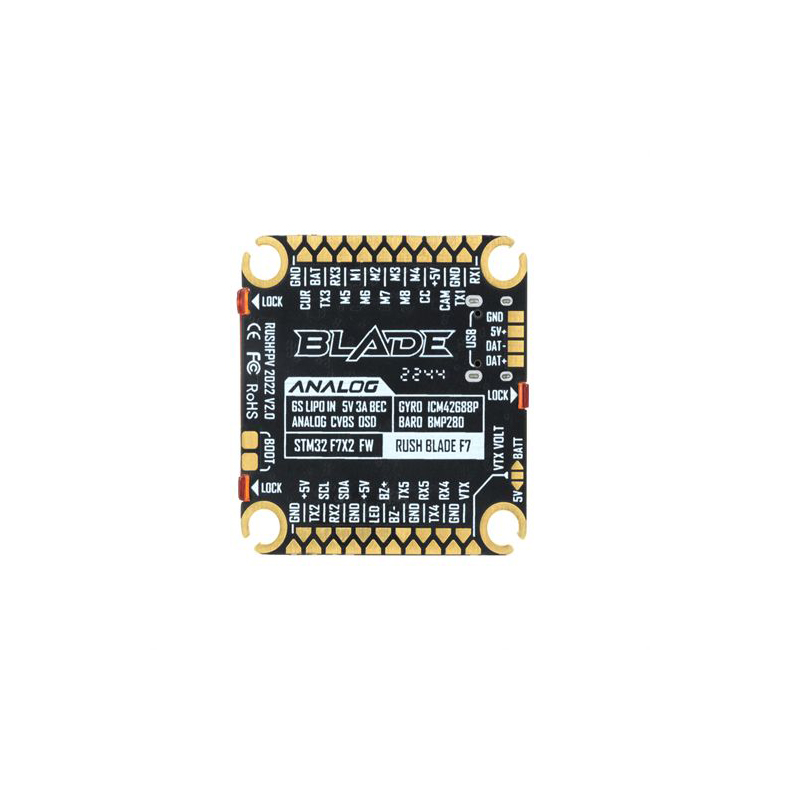

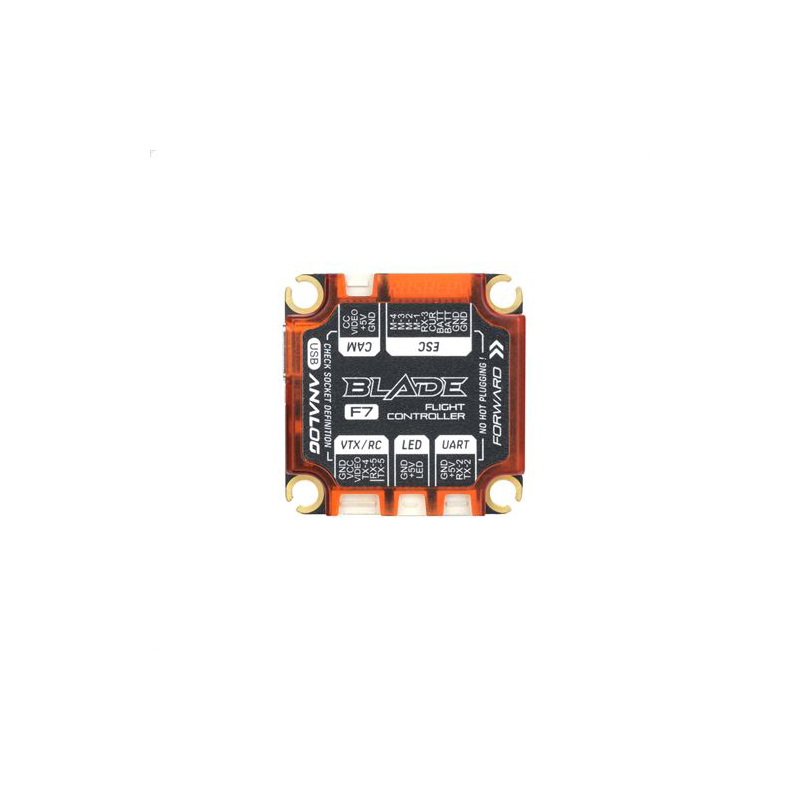

RUSHFPV RUSH BLADE F722 ANALOG FLIGHT CONTROLLER
MCU：STM32F722RET6
GYRO：ICM42688P
BEC： INPUT 7-36V / 3-6S LIPO，OUTPUT 5V 3A
OSD ：AT7456E CVBS OSD
BLACKBOX ：16MB FLASH
TARGET： RUSH_BLADE_F7
PORT ：8×PWM 5×UART 1×I2C
ADC： V-BATT / CURR-ESC
LED：WS2812 LED STRIP
BARO：BMP280
MOUNTING HOLES： 30.5*30.5mm
SIZE ：36.5mm*37mm*5.2mm
WEIGHT： 11g(without cable)

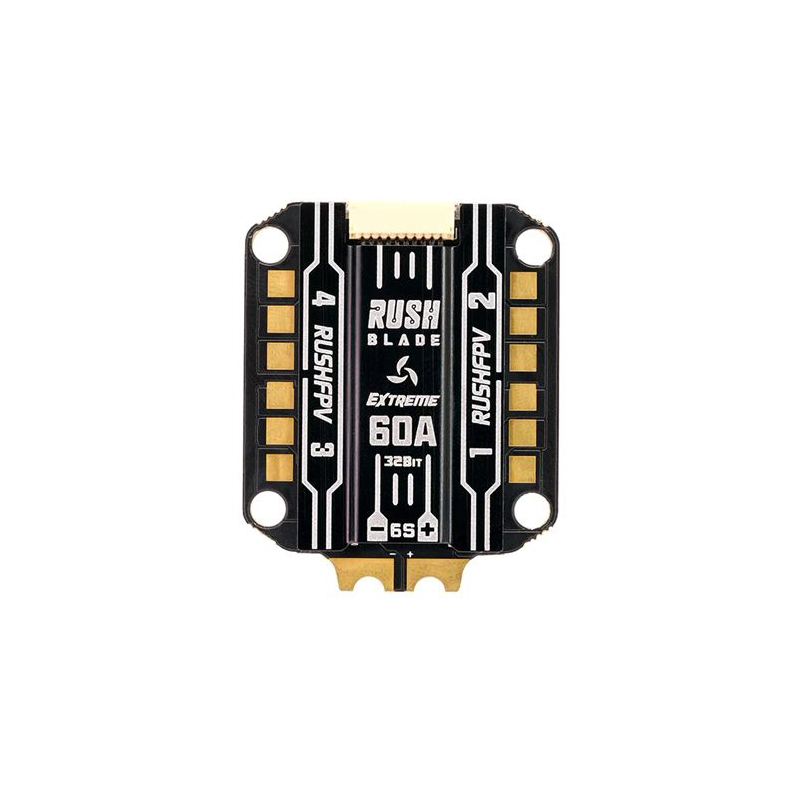

RUSHFPV RUSH BLADE 60A 128KHZ 3-6S BLHELI_32 4-IN-1 ESC
Rated Current: 60A
Peak Current: 80A
Input Voltage: 3-6S Lipo
MCU: F4 @ 200MHz
PWM FREQ: 24-128KHz
LED Color: Orange
Weight：16.5g
Dimension: 45*36.5*7.5mm
BL32 FW: RUSH_BLADE_EXTREME

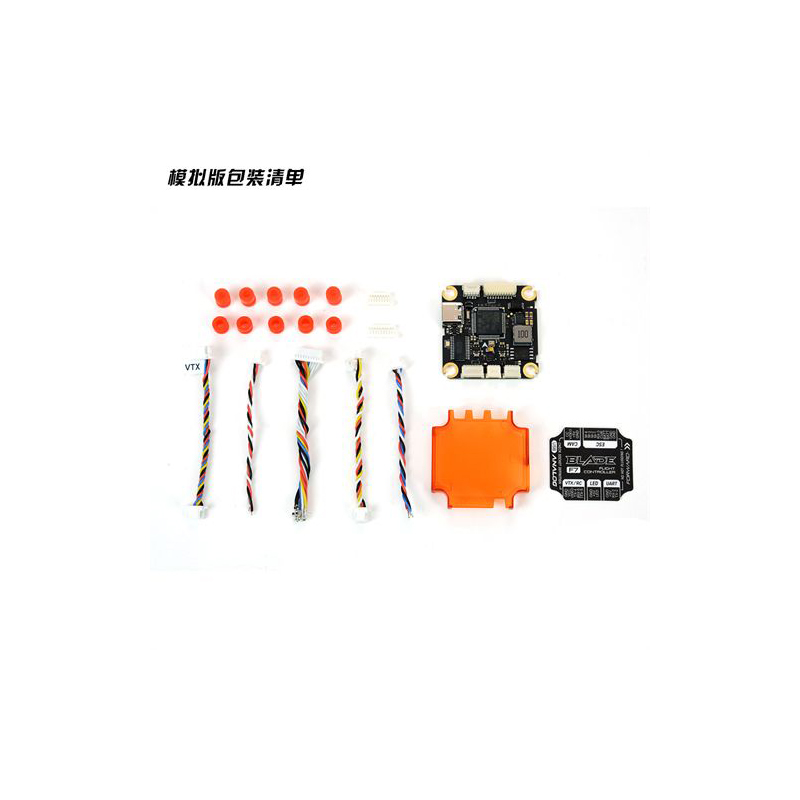

1 x RUSHFPV RUSH BLADE F722 Analog Flight Controller V2 Version
1 x RUSHFPV RUSH BLADE 60A 3-6S BLHeli_32 128kHz 4-in-1 ESC
