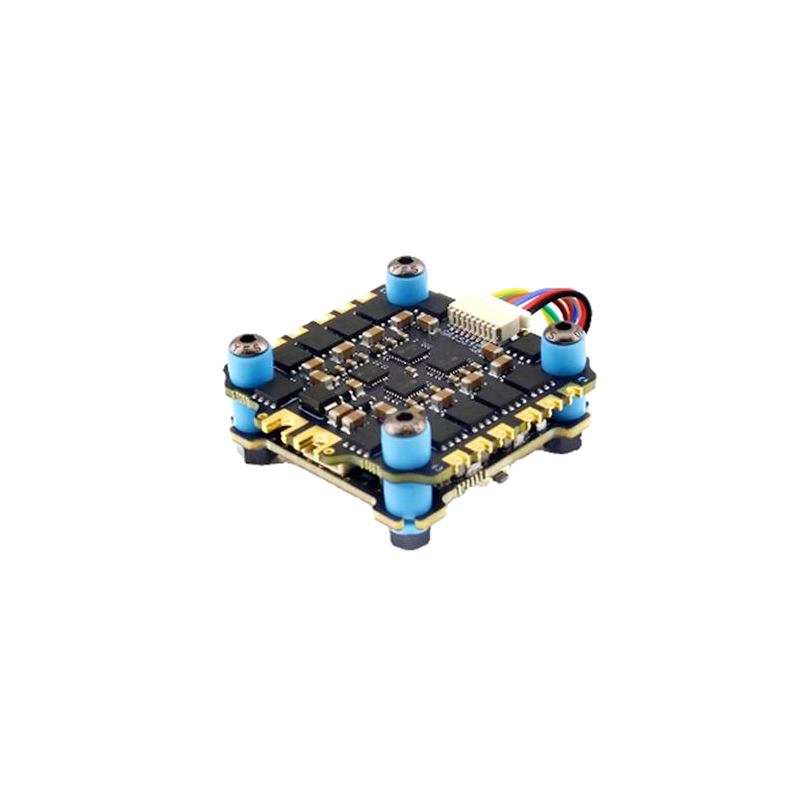

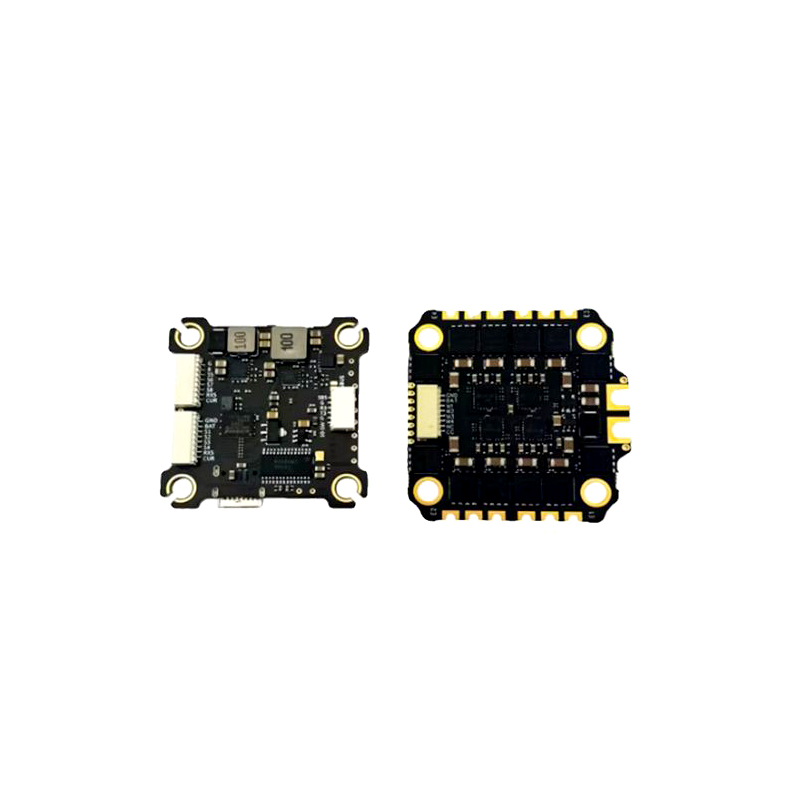

SoloGood F405 Stack
Input voltage: 3-6S Lipo (11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300
Weight: 23g

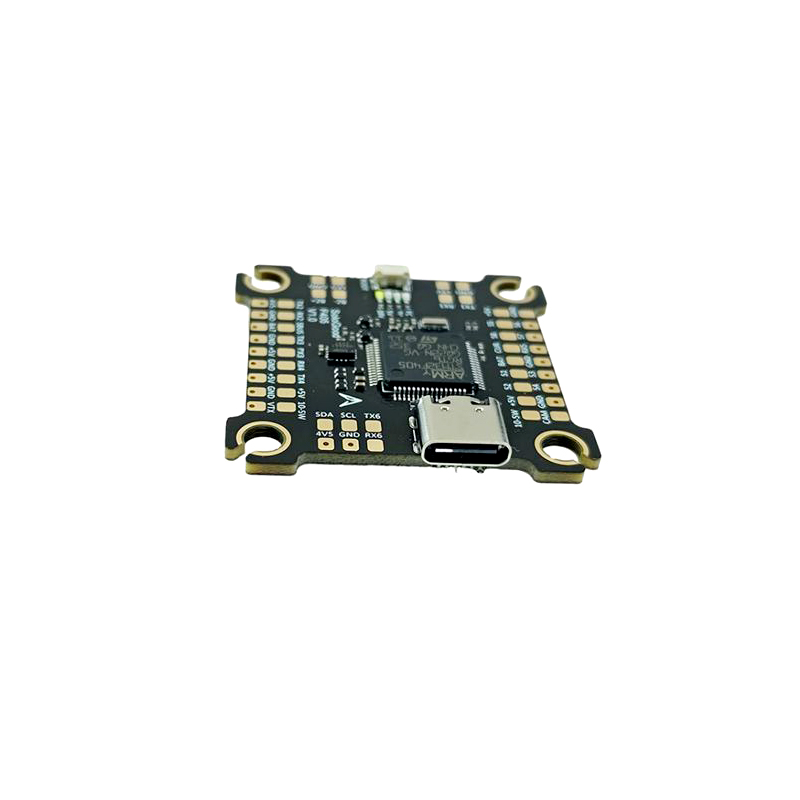

FC Specifications
Main control: STM32F405
Gyroscope: ICM42688P
Barometer: Support SPL-06
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: Onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF405
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5×30.5mm (4mm aperture)
Flight control size: 38.5×38.5mm
Weight: 8.1 grams
LED status: Blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 55A
Maximum current: 65A
Installation hole: 30.5×30.5mm (4mm aperture)

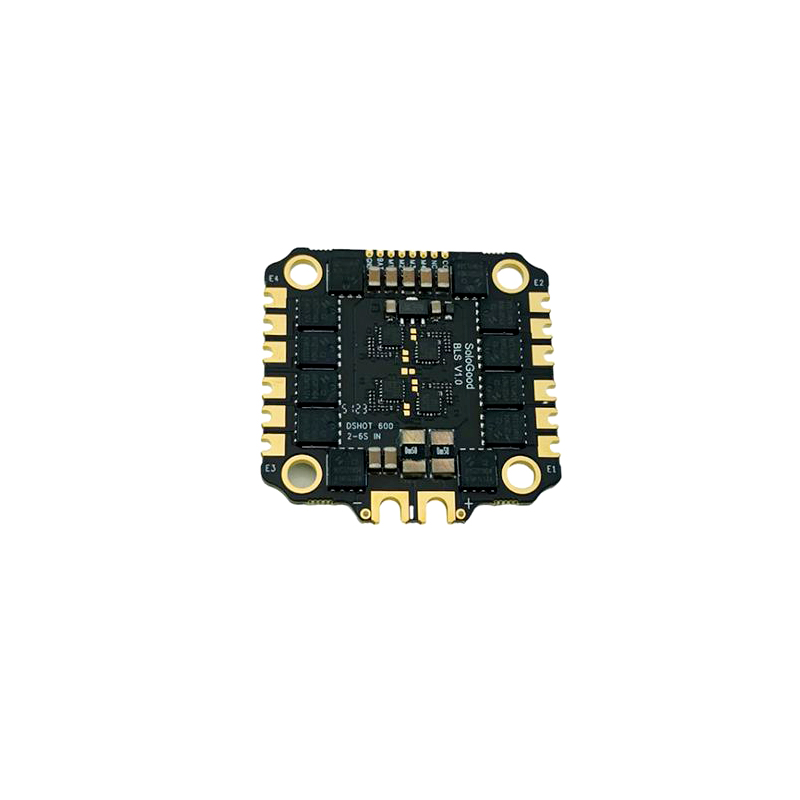

Sologood BLS55A 4in1 ESC SPEC
Firmware: BLHELI-S: J-H-30-16.7
Continuous current: 55A
Maximum current: 65A
Electric dispatch protocol support: DSHOT300/600
Input voltage: 3-6s
Galvanometer: Yes
TVS diode protection: Yes
External capacitor: 1000UF high-frequency electrolytic capacitor
Installation hole position: 30.5×30.5mm (4mm hole)
Size: 41.5mm X42mm
Weight: 15g
