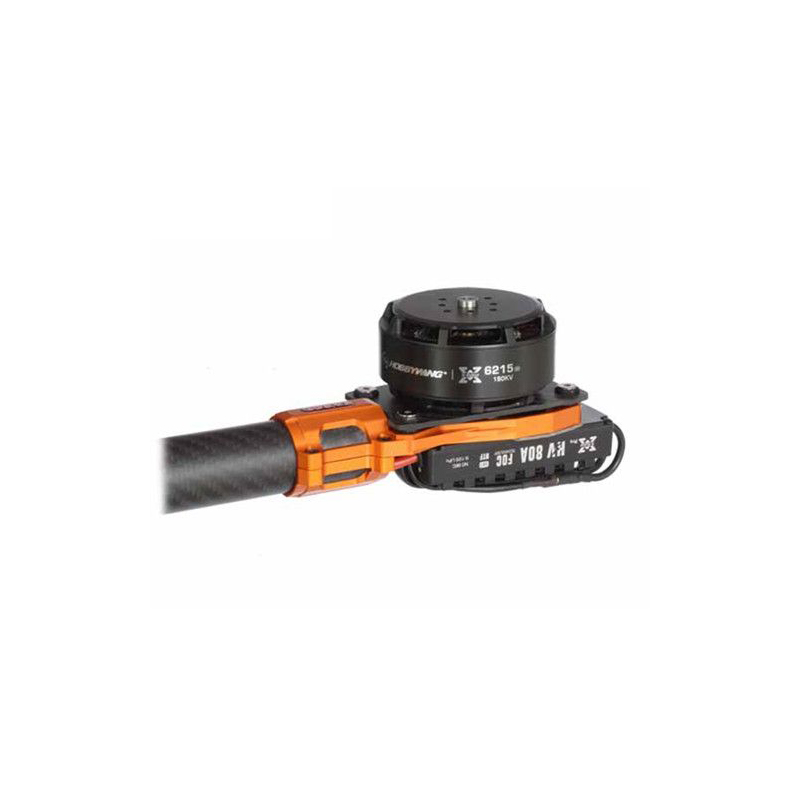

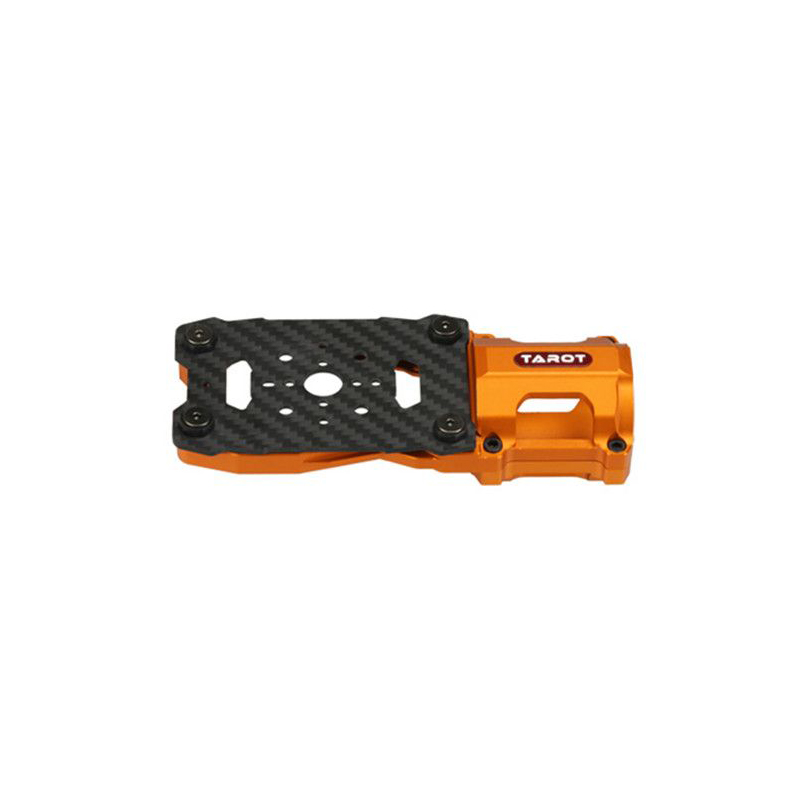

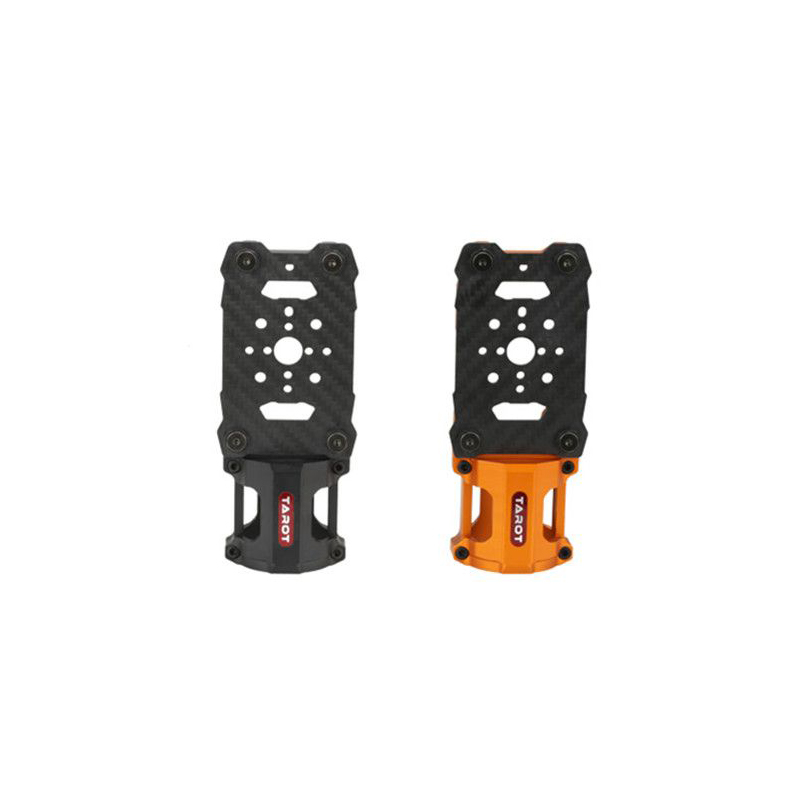

Tarot 35MM Suspension Motor Mount/O TL35Z1
Tarot 35MM Suspension Motor Mount can decrease the interference from motor vibration to flight controller.
6061T6 aluminum alloy applied, full CNC processed.
Applicable to booms with 35mm diameter modifications and DIY multi-copters.
Lightweight and dual-color designed, which can be recognized easily in the air.
Motor installation: 16MM/19MM/25MM/27MM equilateral triangle installation

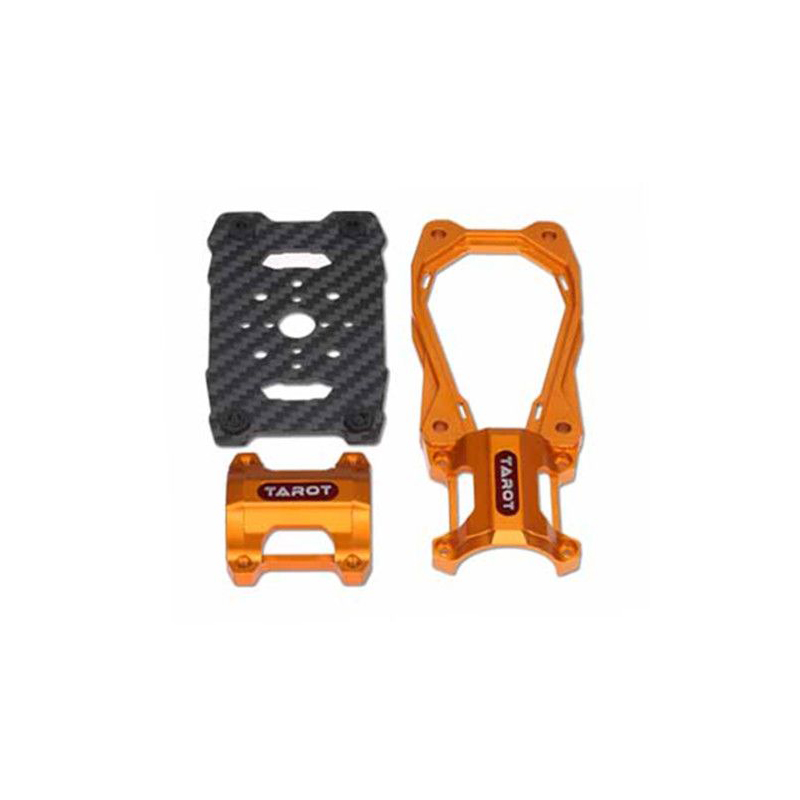

Carbon fiber fix plate x 1(85x54x2.0MM) 11.2G
Metal motor upper mount x 1(129x50x20MM) 43.0G
Metal motor downer mount x 1(45x48x20MM) 17.0G
M3x11.5MM hex collar screw x 4
M3x10MM hex step screw x 4
Φ3.2 hex damper ring x 4 (7x8MM) 0.3G
Related products
-
RC Arm Clamps
D28mm Multi-rotor Arm Clamps/Tube Clamps FC0001
-
RC Arm Clamps
TAROT 25MM New CF Motor Mount/Orange TL96026-02
-
RC Arm Clamps

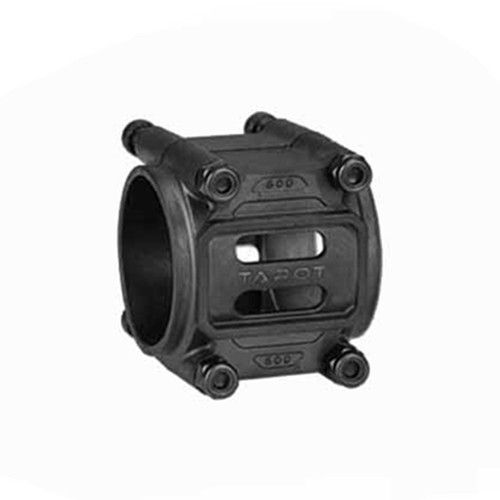

tarot Φ22 CF tail tube mount MK5504
