Tarot Peeper I arm mount parts TL750SD5






Tarot Peeper I arm mount parts TL750SD5

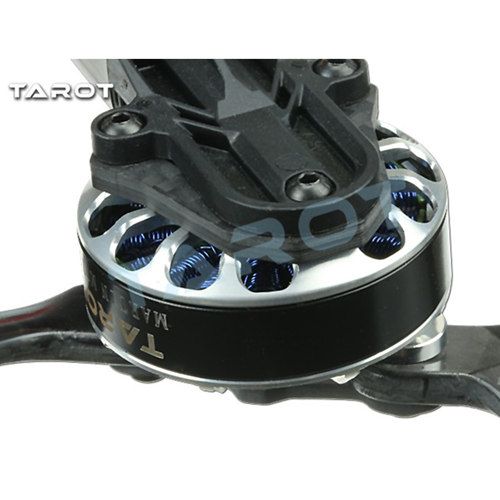

Applicable to the Peeper Series I unmanned aerial vehicles, the patented design of the arm-folding mechanism, tool-free folding motor arm can be fast control knob design, folding back all the arm tube, effectively reducing the UAV carrying volume . High-strength plastic motor mounts with damping function are designed to guide the wind cooling slot for the installation of the electronic governor in the oval tube to provide cooling function.

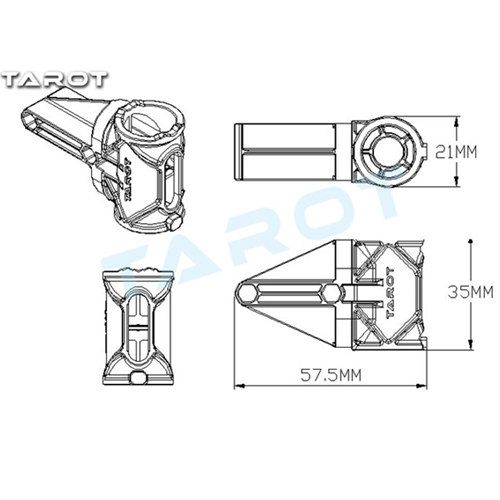

Oval tube folding seat (57.5 × 35 × 21MM) 8.5G

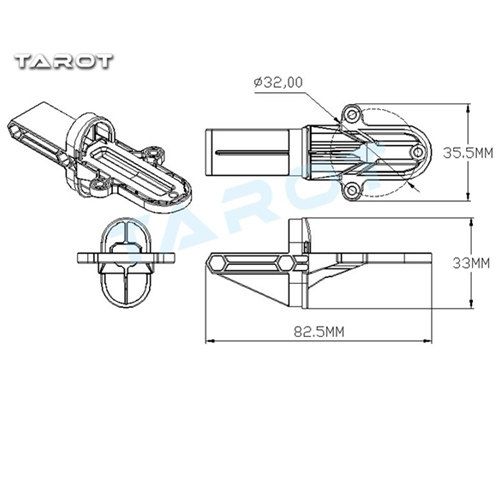

Oval tube motor seat (82.5 × 33 × 35.5MM) 7.5G
H5 × 16.5MM hexagonal aluminum column

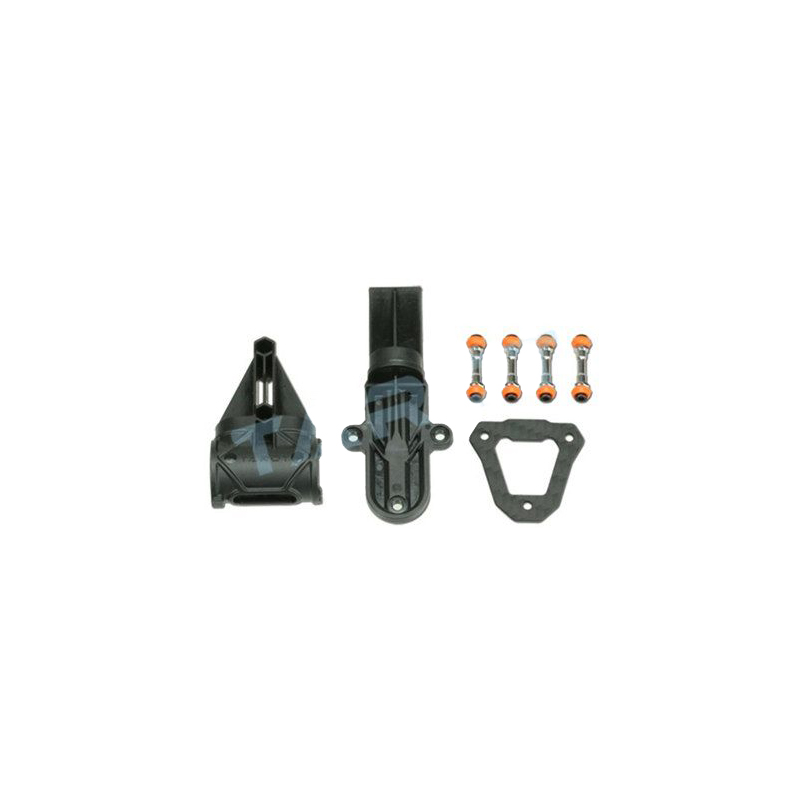

Oval tube folding seat × 1
Oval tube motor seat × 1
hexagonal aluminum column × 4
M1.6 carbon fiber motor fixed piece × 1
M2.5 plastic gasket × 8
M2.5 × 6MM Shaft sleeve screw × 8
