TOF Mini Benewake TFmini-S Lidar Range Finder Sensor Module Single Point Ranging

SKU QA-TL12M Category Tag Brand:

TOF Mini Benewake TFmini-S Lidar Range Finder Sensor Module Single Point Ranging

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

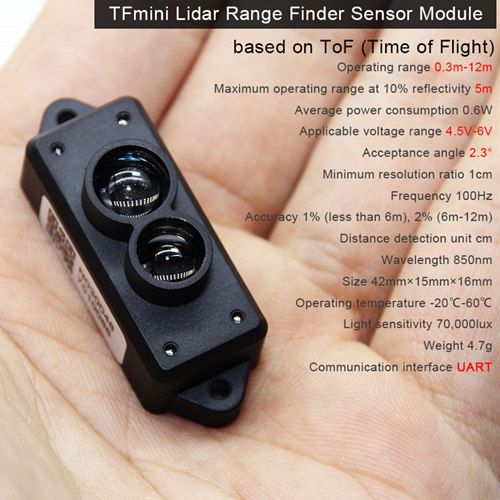

TFmini LiDAR moduleShort-range distance sensor
Tiny Yet Powerful

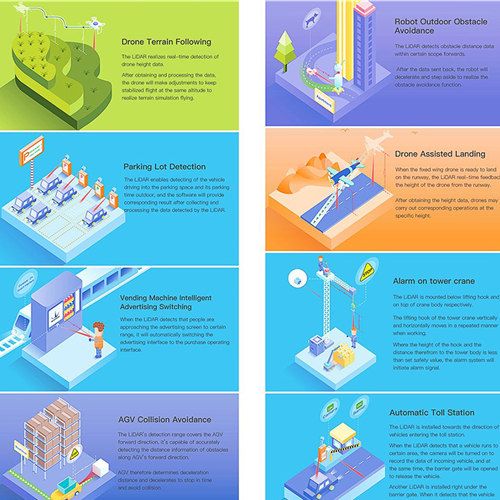

TFmini is a milestone for Benewake to promote the process of low cost LiDAR. With its unique optical, structural, and electronic designs, the product possesses 3 major advantages: low cost, tiny volume and low power consumption. The built-in algorithm adapted to indoor and outdoor environments can guarantee an excellent ranging performance at a low cost and in a tiny volume, which highly expands the application fields andscenarios of LiDAR and lays a solid foundation for future “eyes” in the smart era.

Voltage Range: 4.5V-6V
Communication Interface: UART
Working Range: 0.3m-12m (indoor)
The Maximum Range of Reflectivity 10%:5m
Average Power: 0.6W
Receive Angle: 2.3°
Minimum Resolution: 5mm
Refresh Frequency: 100Hz
Ranging Accuracy: 1% (<6m), 2% (6 ~ 12m)
Ranging Unit: mm
Band: 850nm

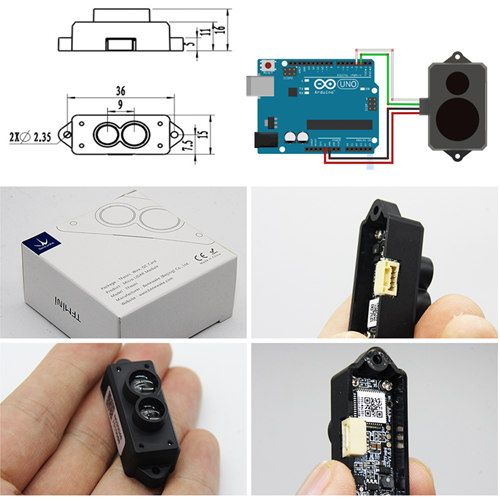

Size: 1.65in x0.59in x0.63in / 42mm x15mm x16mm
Operating Temperature: 0°C ~ 60°C
Storage Temperature: -20°C~75°C
Anti-light Environment: 70Klux
Weight: 4.7g



TOF Mini Benewake TFmini Lidar Range Finder Sensor Module Single Point Ranging x 1
