Waveshare Servo Driver HAT Straight Pinheader 16-Channel 12-bit Resolution I2C-Controlled for Raspberry Pi

SKU WS-SDB-15275 Category Tag Brand:

Waveshare Servo Driver HAT Straight Pinheader 16-Channel 12-bit Resolution I2C-Controlled for Raspberry Pi

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

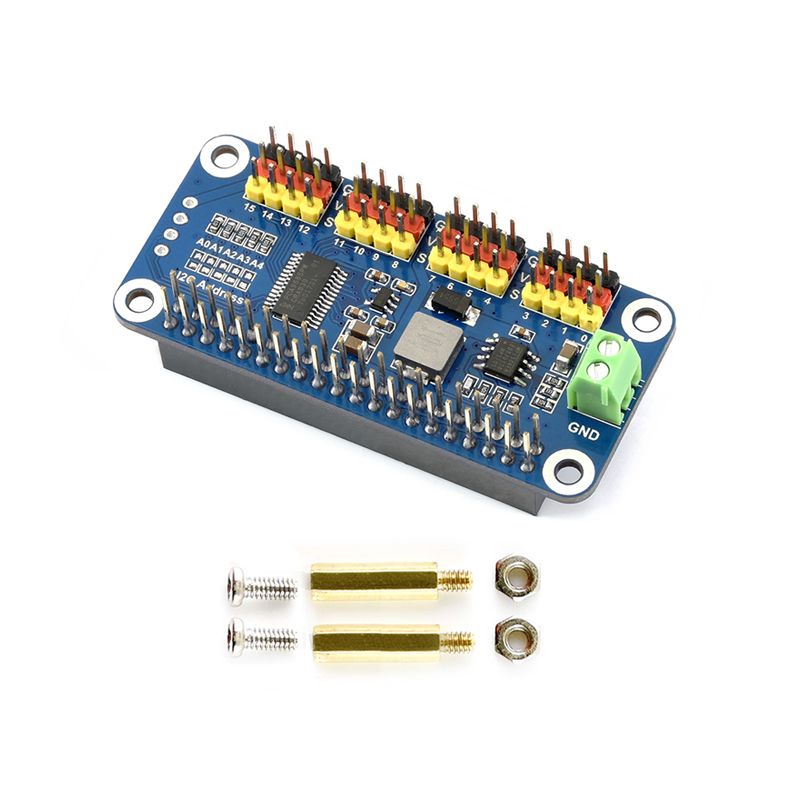

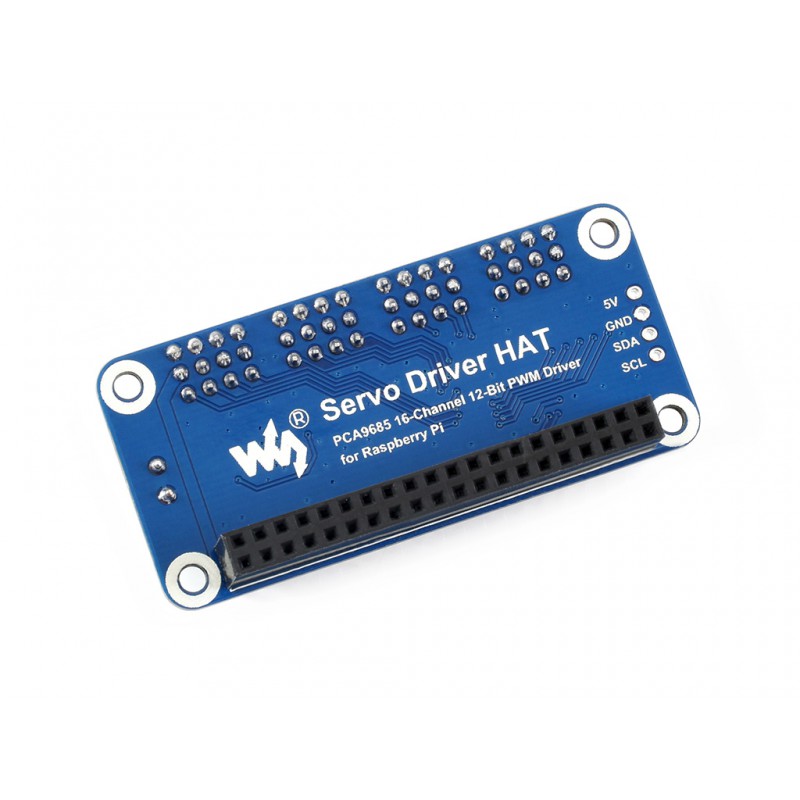

Servo Driver HAT For Raspberry Pi, 16-Channel, 12-Bit, I2C Interface, Straight Pinheader

Model：Servo Driver HAT
SKU：15275
Weight：17g
Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
Servo voltage: 5V
Logic voltage: 3.3V
Driver: PCA9685
Control interface: I2C

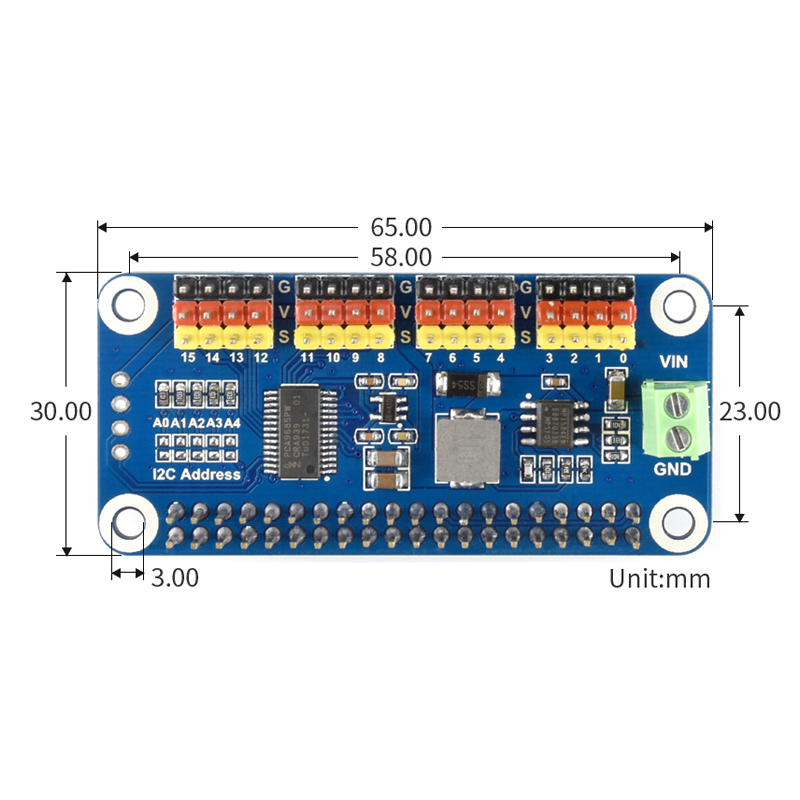

Dimension: 65mm x 30mm
Mounting hole size: 3.0mm

Servo Driver HAT x1
RPi screws pack (2pcs) x1
