HEX Mauch 2-6S Backup BEC/5.35V For Pixhawk2 PIX Flight Control RC Drone Parts
| Part No.: | MA083 |
| Manufacturer: | HEX |
Send to a friend
Features
Mauch 2-6S Backup BEC/5.35V For Pixhawk2 PIX Flight Control RC Drone Parts
Product Details

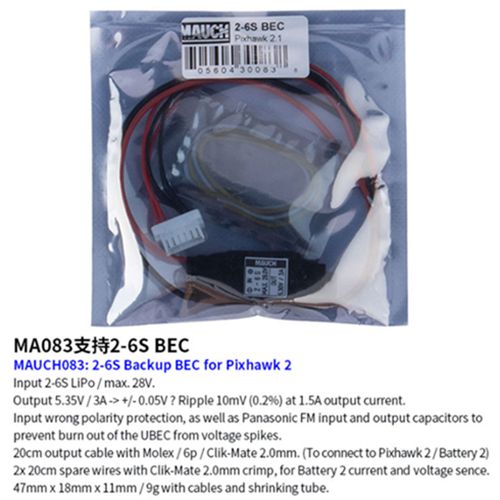

MAUCHO83 : 2-6S Backup BEC for Pixhawk 2
Input 2-6S Lipo / max 28V.
Output 5.35V / 3A-> + / -0 05V Ripple 10mv ( 0.2 % ) at 1.5A output current.
Input wrong polarity protection , as well as Panasonic FM input and output capacitors to prevent burn out of the UBEC from voltage spikes .
20cm output cable with Molex / 6p / Clik-mate 2.0mm . ( To connect to Pihawk 2 / Battery 2 )2x 20cm spare wires with Clik-mate 2.0mm crimp , for Battery 2 current and voltage sence 47mm x 18mmx11mm / 9g with cables and shrinking tube.
Input 2-6S Lipo / max 28V.
Output 5.35V / 3A-> + / -0 05V Ripple 10mv ( 0.2 % ) at 1.5A output current.
Input wrong polarity protection , as well as Panasonic FM input and output capacitors to prevent burn out of the UBEC from voltage spikes .
20cm output cable with Molex / 6p / Clik-mate 2.0mm . ( To connect to Pihawk 2 / Battery 2 )2x 20cm spare wires with Clik-mate 2.0mm crimp , for Battery 2 current and voltage sence 47mm x 18mmx11mm / 9g with cables and shrinking tube.
Item Packing
Mauch BEC x 1
