MHEX auch 4-14S HYB-BEC/5.3V For Pixhawk PIX Flight Control RC Drone Parts
| Part No.: | MA084 |
| Manufacturer: | HEX |
Send to a friend
Features
Mauch 4-14S HYB-BEC/5.3V For Pixhawk PIX Flight Control RC Drone Parts
Product Details

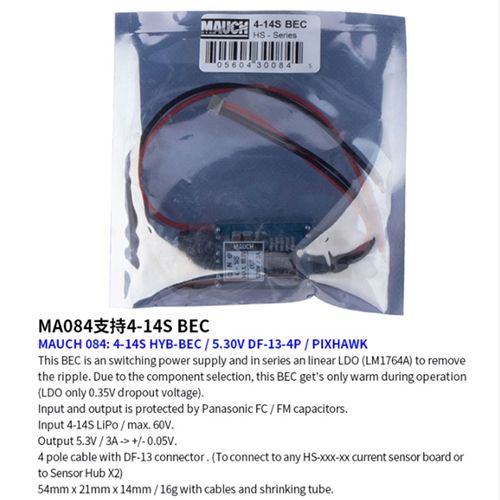

MAUCH 084 : 4-14S HYB-BEC / 5 . 30V DF-13-4P / PIXHAWK
This BEC is an switching power supply and in series an linear LDO ( LM1764A ) to removethe ripple . Due to the component selection , this BEC get's only warm during operation( LDO only 0.35V dropout voltage ).
Input and output is protected by Panasonic FC / FM capacitors .
Input 4-14S Lipo / max 60V.
Output 5.3V / 3A-> + / -0 05V.
4 pole cable with DF-13 connector ( To connect to any HS-xxx -xx current sensor board or to Sensor Hub X2 )
54mm x 21mm x 14mm / 16g with cables and shrinking tube
This BEC is an switching power supply and in series an linear LDO ( LM1764A ) to removethe ripple . Due to the component selection , this BEC get's only warm during operation( LDO only 0.35V dropout voltage ).
Input and output is protected by Panasonic FC / FM capacitors .
Input 4-14S Lipo / max 60V.
Output 5.3V / 3A-> + / -0 05V.
4 pole cable with DF-13 connector ( To connect to any HS-xxx -xx current sensor board or to Sensor Hub X2 )
54mm x 21mm x 14mm / 16g with cables and shrinking tube
Item Packing
Mauch 4-14S BEC x 1
