RunCam Link Phoenix HD Kit 1280*720@60fps Digital FPV AIR UNIT Phoenix HD Camera for FPV Drones
| Part No.: | RC-Link |
| Manufacturer: | Runcam |
Send to a friend
Features
RunCam Link Phoenix HD Kit 1280*720@60fps Digital FPV AIR UNIT Phoenix HD Camera for FPV Drones
Product Details

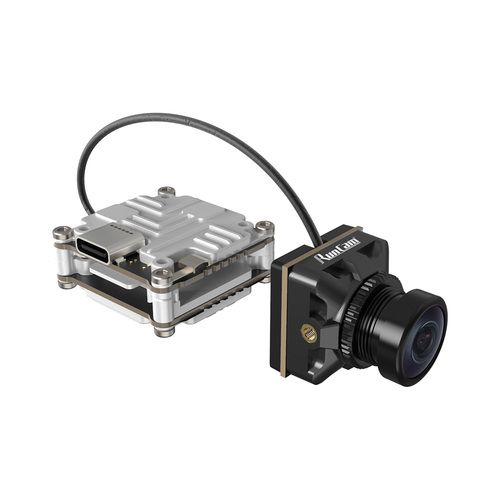

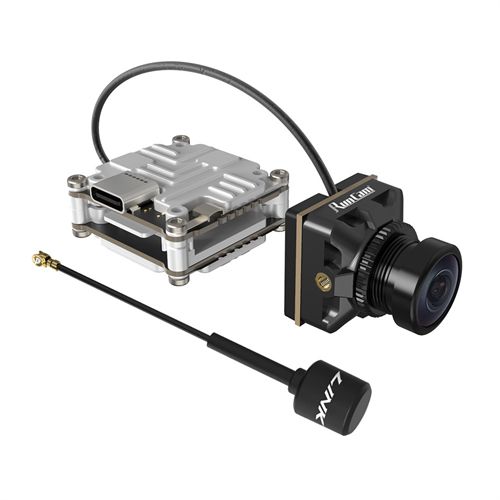

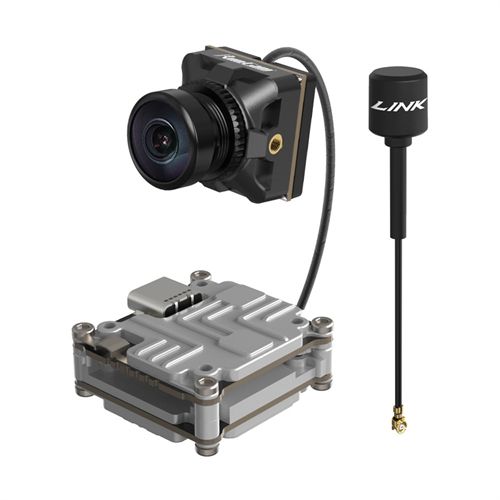

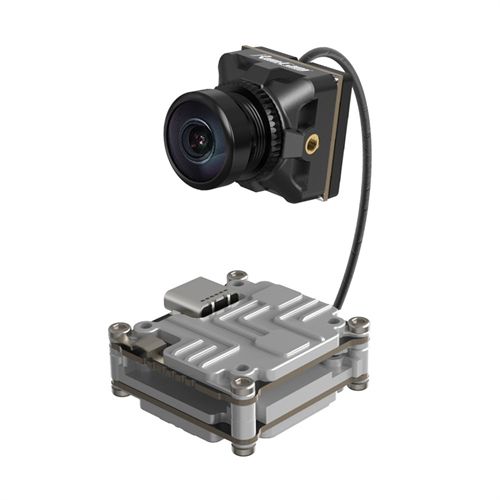

RunCam LINK Phoenix HD Kit
Frequency: 5.725-5.850 GHz
Max. Distance: FCC/SRRC: <4 km & CE: <0.7 km
Power: 7.4-26.4 V@ 4-9W

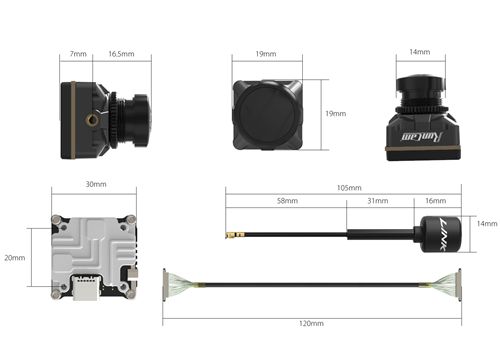

Dimensions: 29×29×13 mm
Net Weight: 19.5 g

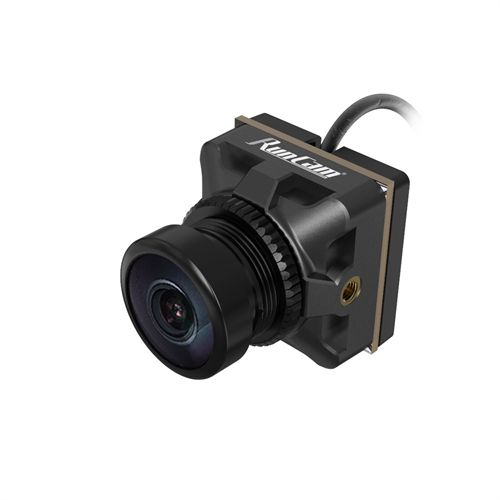

RunCam Phoenix HD
Image Sensor: 1/2”
Resolution: 1280*720@60fps
LENS: FOV D:157° H:133° V:72°
Shutter: Rolling Shutter
Coaxial Cable: 120 mm
Dimensions: L19mm*W19mm*H23.5mm
Net Weight: 7.5g
Item Packing
1 x LINK AIR UNIT & Phoenix HD Camera
1 x IPEX Antenna
1 x JST SH 1.0 6pin Cable
1 x Manual Guide
1 x IPEX Antenna
1 x JST SH 1.0 6pin Cable
1 x Manual Guide
Detailed Images
