Speedybee XT500 5.8g 48CH 25/200/600 MW transmisores para Racing FPV Drone

Speedybee XT500 5.8g 48CH 25/200/600 MW transmisores para Racing FPV Drone
Part No.: QA-XT500
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Frequency Setup
The factory default setting is in lock mode with red LED blinking and only
25mW is available. You can switch to unlock mode by long pressing the
button for 10 seconds with the red LED constantly on.

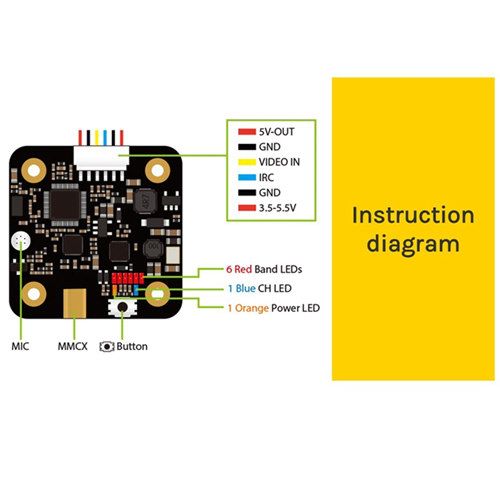

Button Function Switching
· Short press to CH;
· Long press 2 seconds to BAND;
· Long press 5 seconds to POWER;
· Long press 10 seconds to
 Unlock/Lock Mode.



Product Details

Model:SpeedyBee TX500
Frequency Channel:5.8G 48CH
Output Power:25mW / 200mW/ 500mW
Working Current:5V@ 150mA
Voltage out:5V@max 250mA
Voltage in:1S 3.5-5.5V
Video Input Impedance:75 Ohm
Antenna Connector:MMCX
Weight:4g (without antenna)

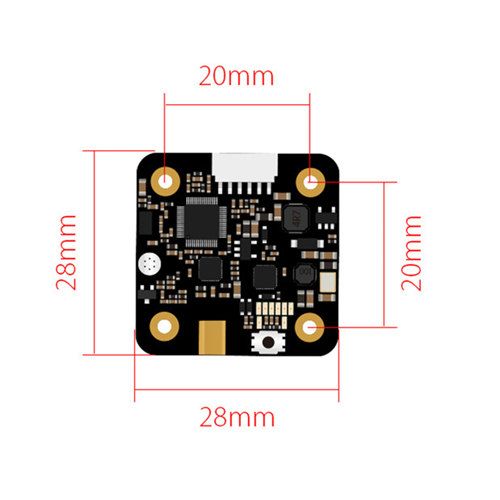

PCB Size:28mm*28mm@20*20 M2

Note:
Before you get VTX unlocked, it is highly recommended to know about
the rules and regulations in your country about the frequency to avoid a
fine or confiscation of your device.

Item Packing

TX500 X 1
MMCX antenna X 1
MMCX to SMA Cable X 1
1.0mm 6pin Cable X 1
Set of screws X 1

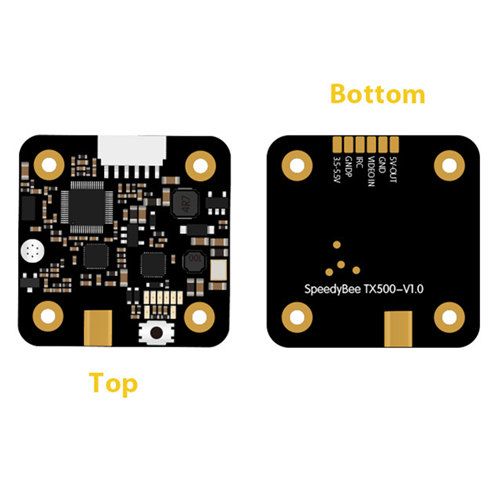

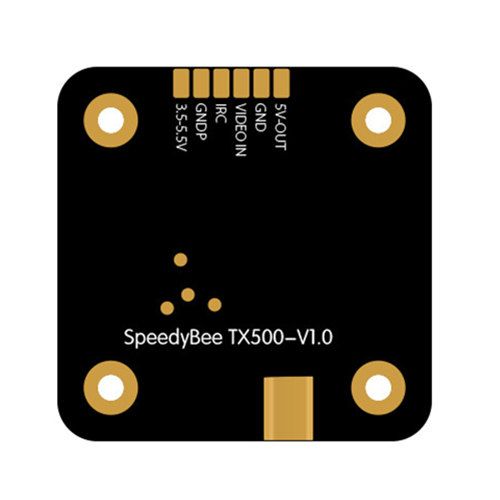

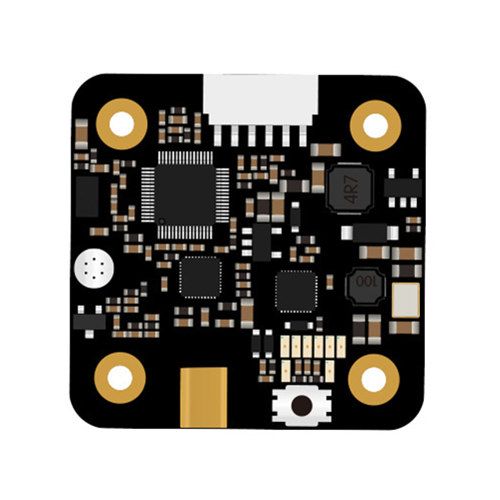

Detailed Images
