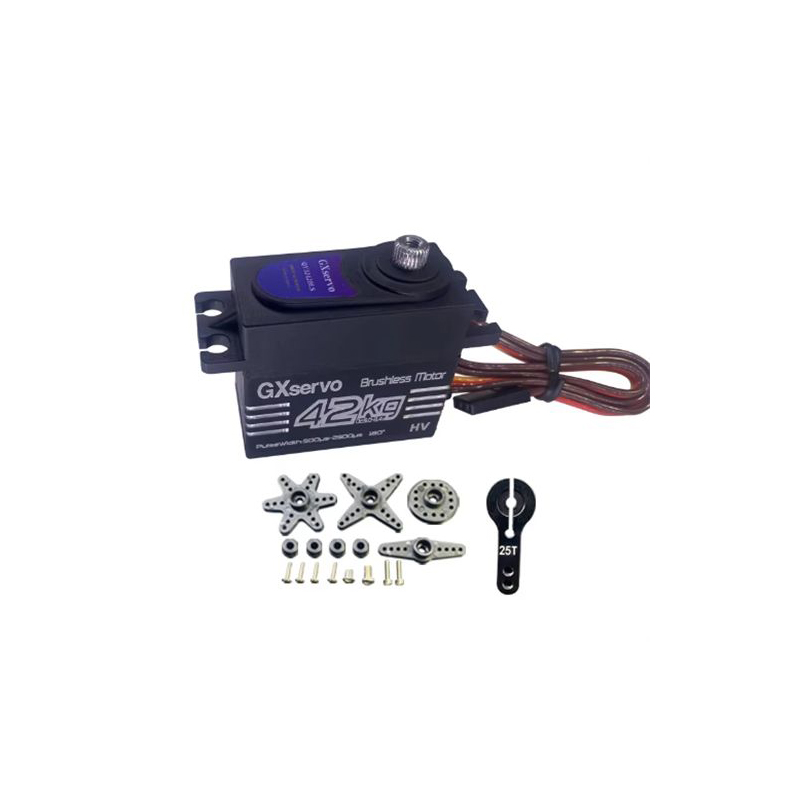

GXservo GX3242 42KG Brushless Steering Gear High Speed High Torque Metal Gear RC Model Car Robot Digital Steering Gear Accessories
GXservo GX3242 42KG Brushless Steering Gear High Speed High Torque Metal Gear RC Model Car Robot Digital Steering Gear Accessories
GXservo GX3242 42KG Brushless Steering Gear High Speed High Torque Metal Gear RC Model Car Robot Digital Steering Gear Accessories
Control System: Pulse width modulation control, 1520uS/333Hz.
Operating Voltage: 5 – 8.4V.
Temperature: -20°C to +60°C.
PWM Volts: 3.3 – 5V (advised).
Pulse Width Angle: 500 – 2500us; 180° (customizable or default 180).
Direction: Anticlockwise (500 – 2500us), opposite rotation is customizable.
Motor: Brushless.
Dead band: 2usec.
Gears Inside: 416 + 304 Stainless Steel Gears. Top cover and bottom shell are carbon fiber plastic.
Signal: Digital.
Waterproof: IP65.
Bearing: Double ball bearings.
Programmable: Supported.
Net Weight: 69g (without accessory).
Wire length: JR300mm.

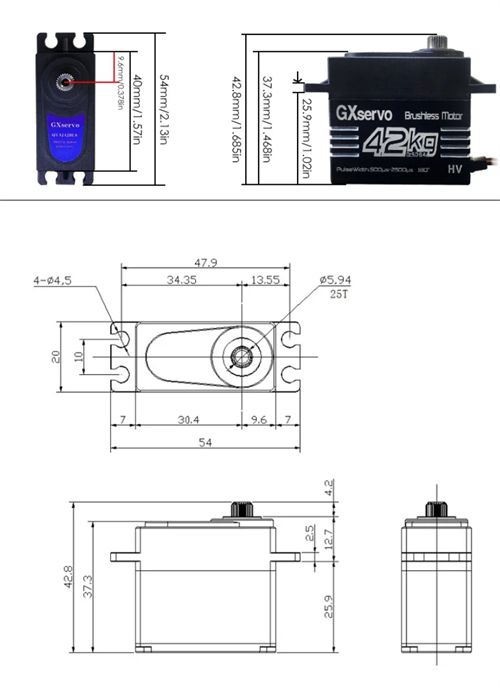

Size: 40×20×37.3mm.
Net Weight: 69.2g.
1×GXservo GX3242 42KG
