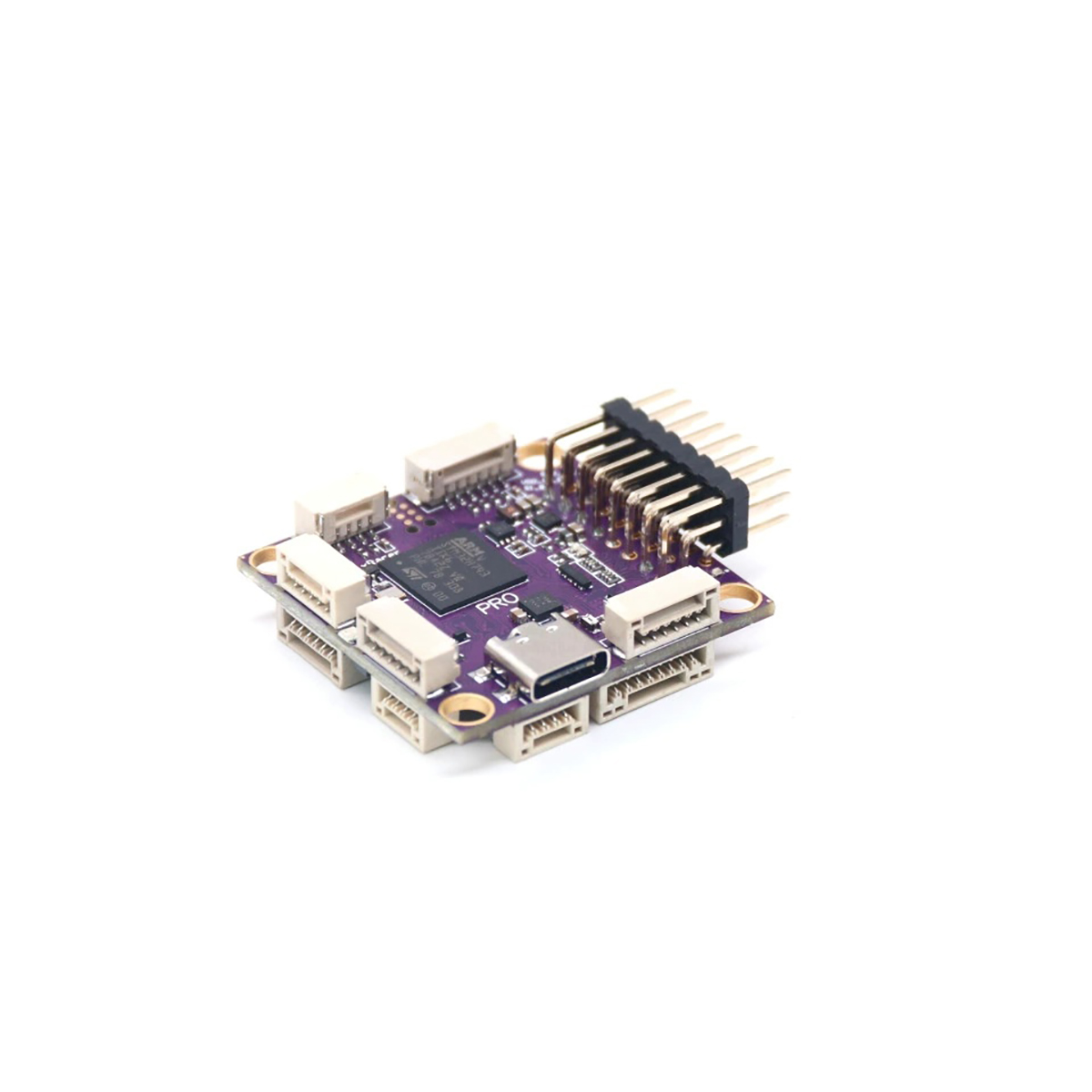

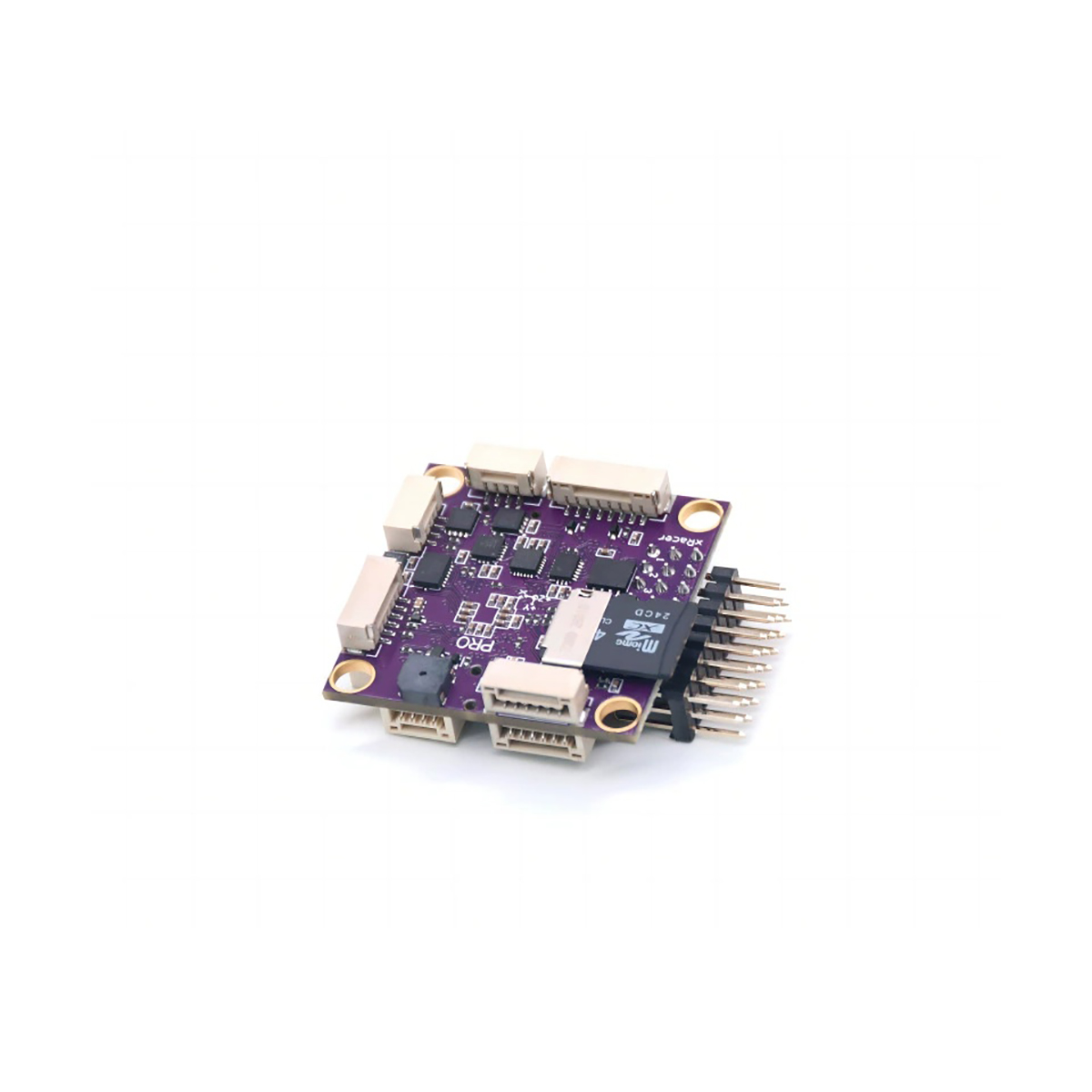

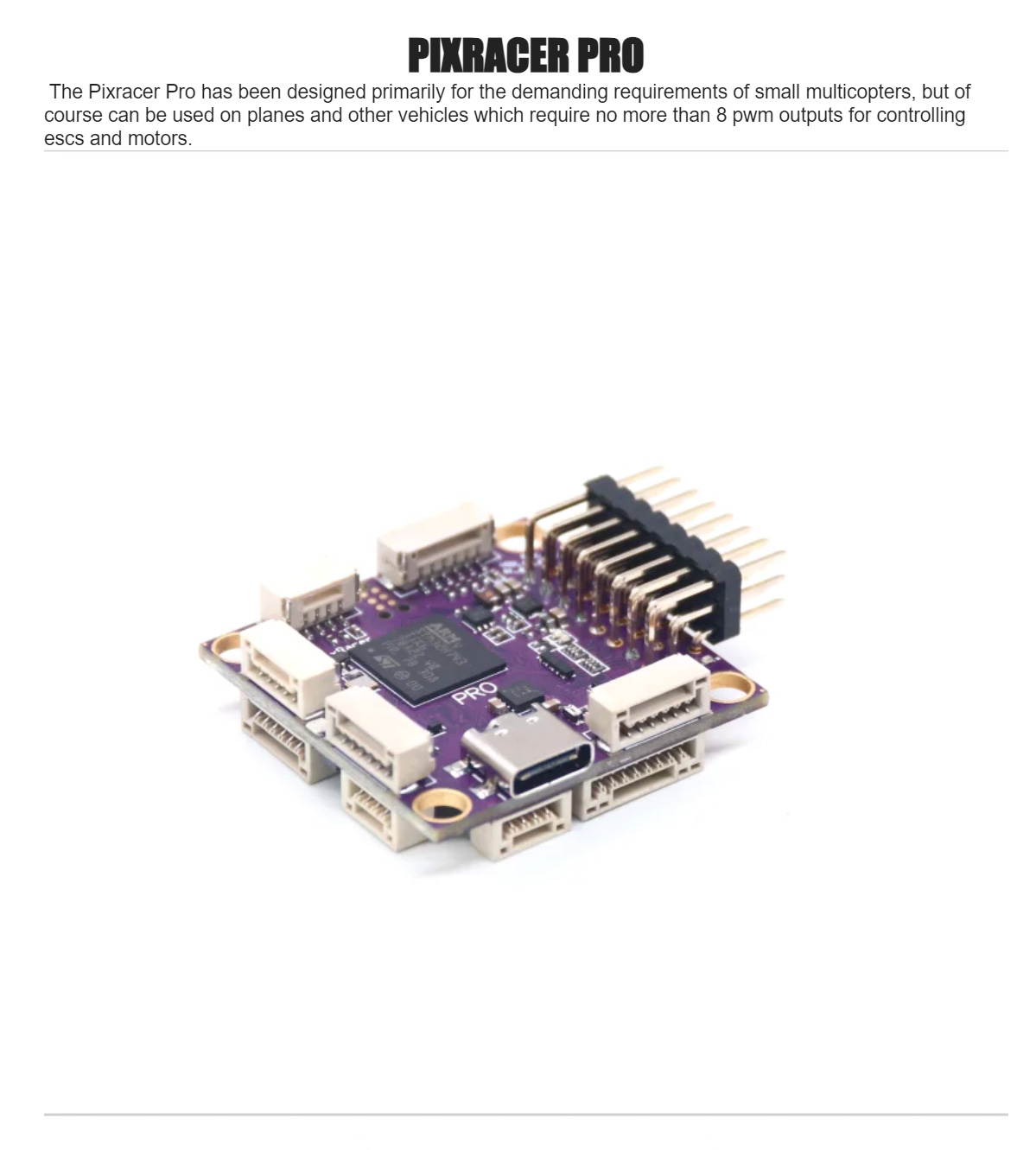

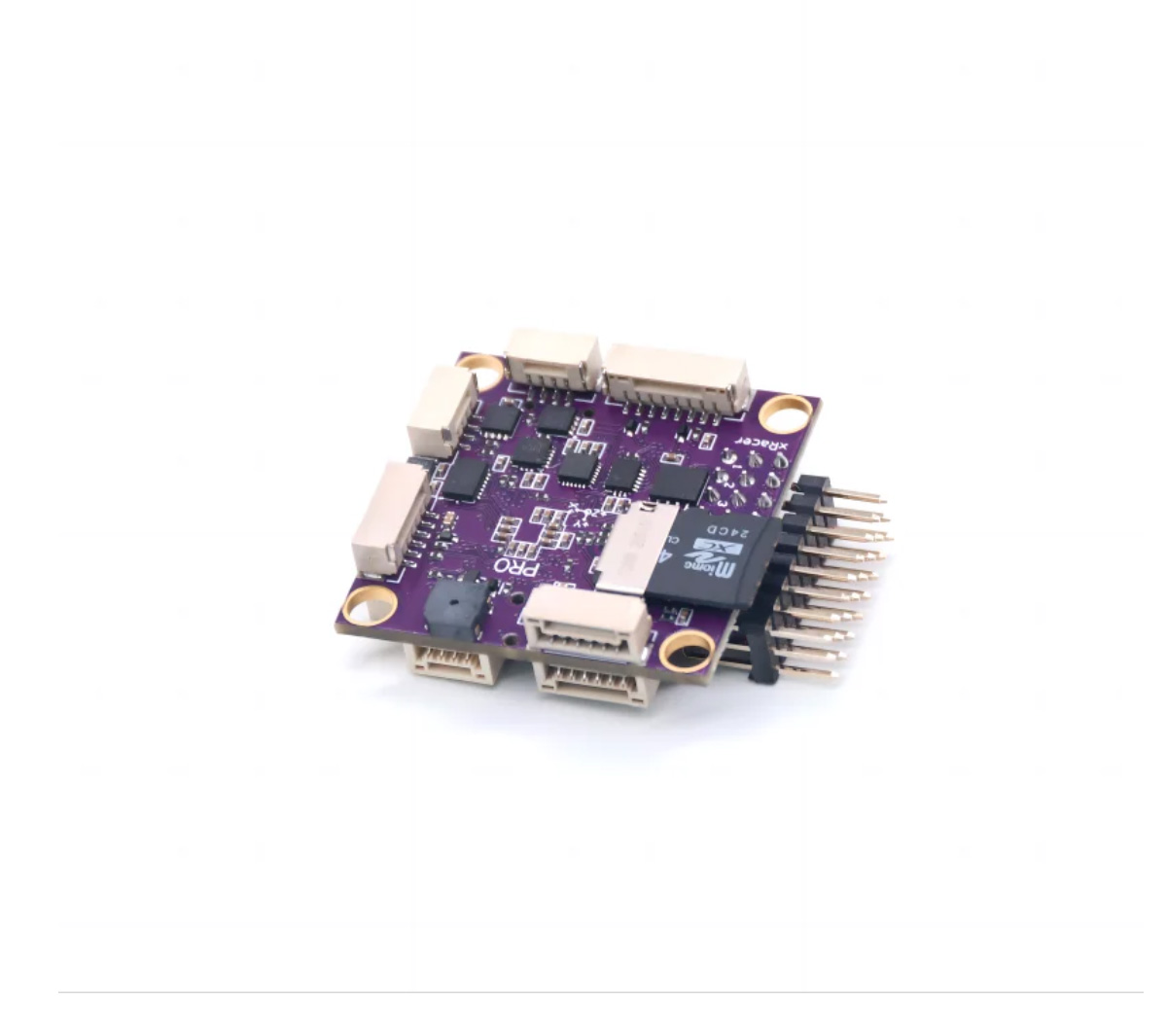

Model：Pixracer PRO

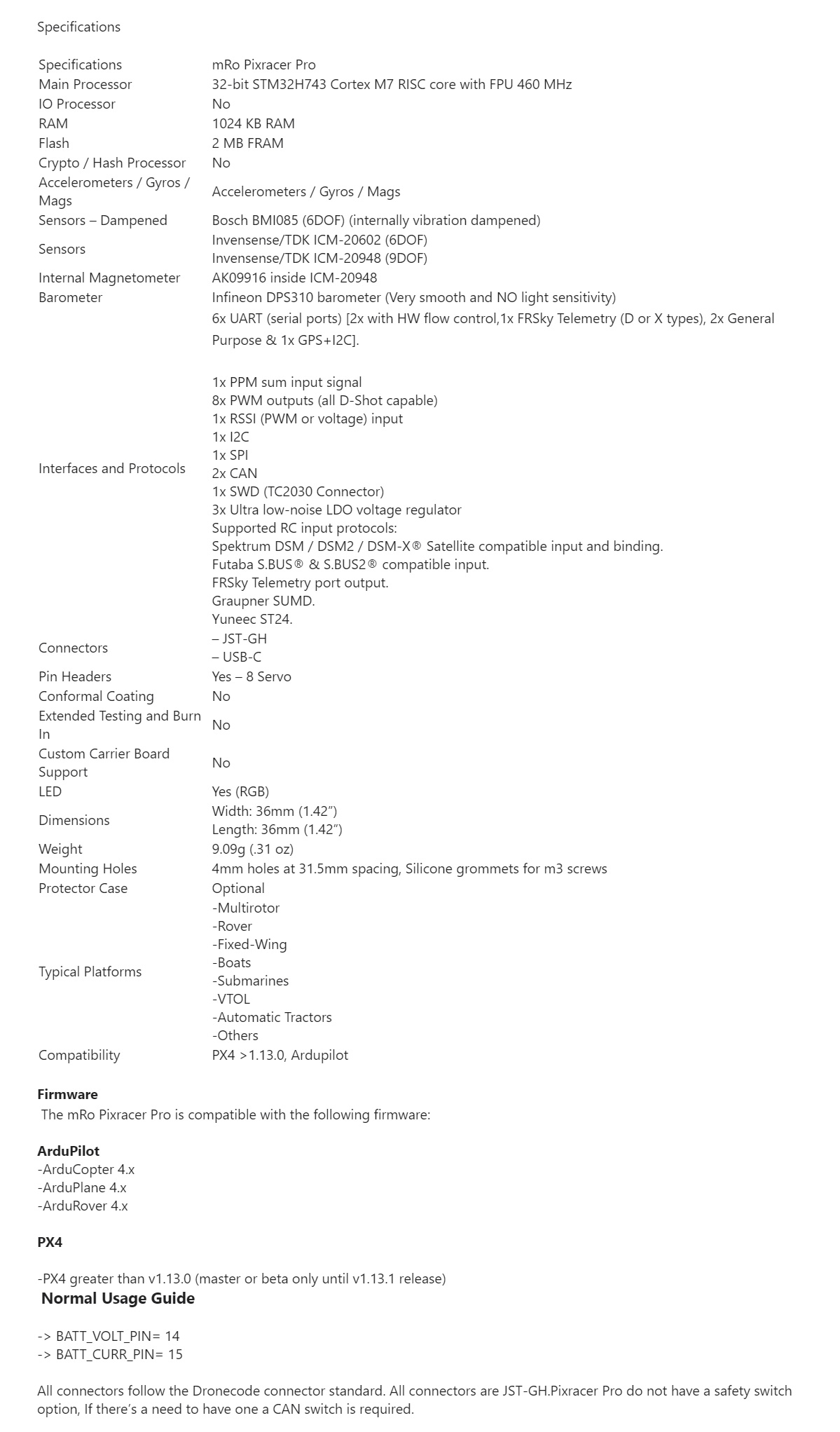

Specifications: mRo Pixracer Pro
Main Processor: 32-bit STM32H743 Cortex M7 RISC core with FPU 460 MHz
IO Processor: No
RAM: 1024 KB RAM
Flash: 2 MB FRAM
Crypto/Hash Processor: No
Accelerometers/Gyros/Mags: Accelerometers/Gyros/Mags
Sensors-Dampened: Bosch BMI085 (6DOF) (internally vibration dampened)
Sensors: Invensense/TDK ICM-20602 (6DOF);Invensense/TDK ICM-20948 (9DOF)
Internal Magnetometer: AK09916 inside ICM-20948
Barometer: Infineon DPS310 barometer (Very smooth and NO light sensitivity);6x UART (serial ports) [2x with HW flow control,1x FRSky Telemetry (D or X types), 2x General Purpose & 1x GPS+I2C].

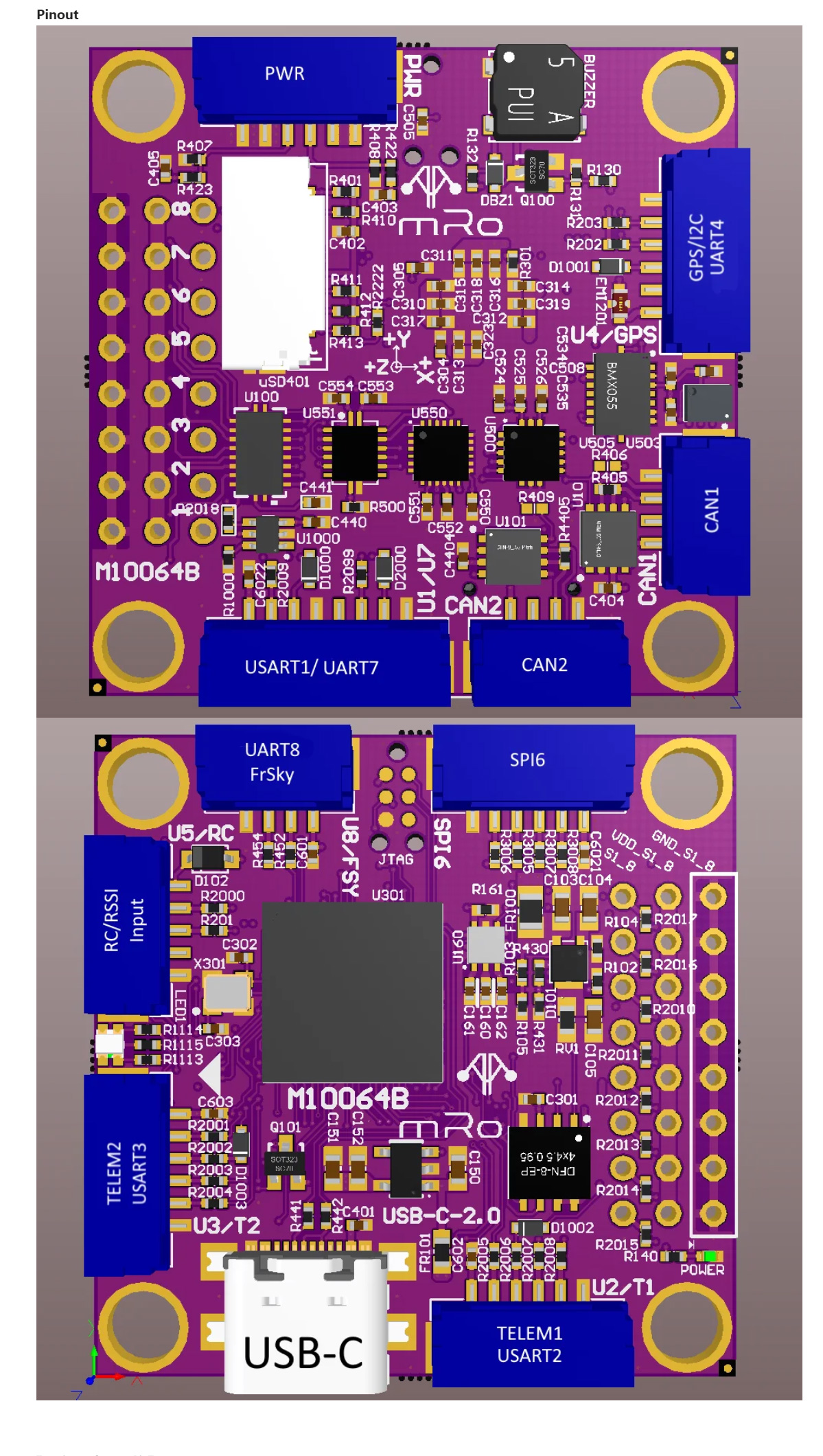

Interfaces and Protocols: 1x PPM sum input signal; 8x PWM outputs (all D – Shot capable); 1x RSSI (PWM or voltage) input; 1x I2C; 1x SPI; 1x CAN; 2x SWD (TC2030 Connector); 1x Ultra low – noise LDO voltage regulator; Supported RC input protocols: Spektrum DSM / DSM2 / DSM – X® Satellite compatible input and binding; Futaba S.BUS® & S.BUS2® compatible input; FRSky Telemetry port output; Graupner SUMD; Yuneec ST24
Connectors: -JST-GH;–USB-C
Pin Headers: Yes-8 Servo
Conformal Coating: No
Extended Testing and Burn In: No
Custom Carrier Board Support: No
LED: Yes (RGB)
Dimensions:Width: 36mm (1.42”); Length: 36mm (1.42”)
Weight: 9.09g (.31 oz)
