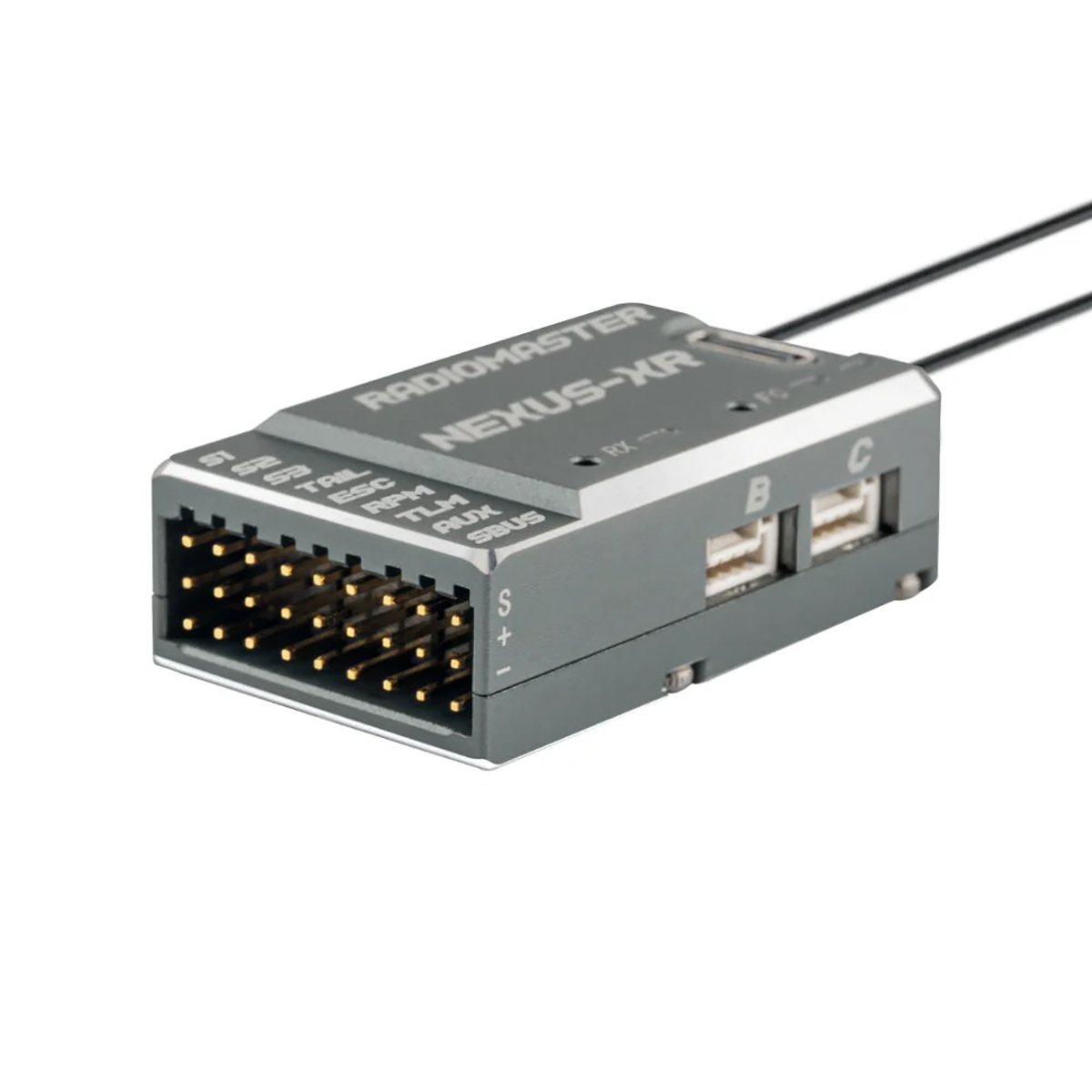

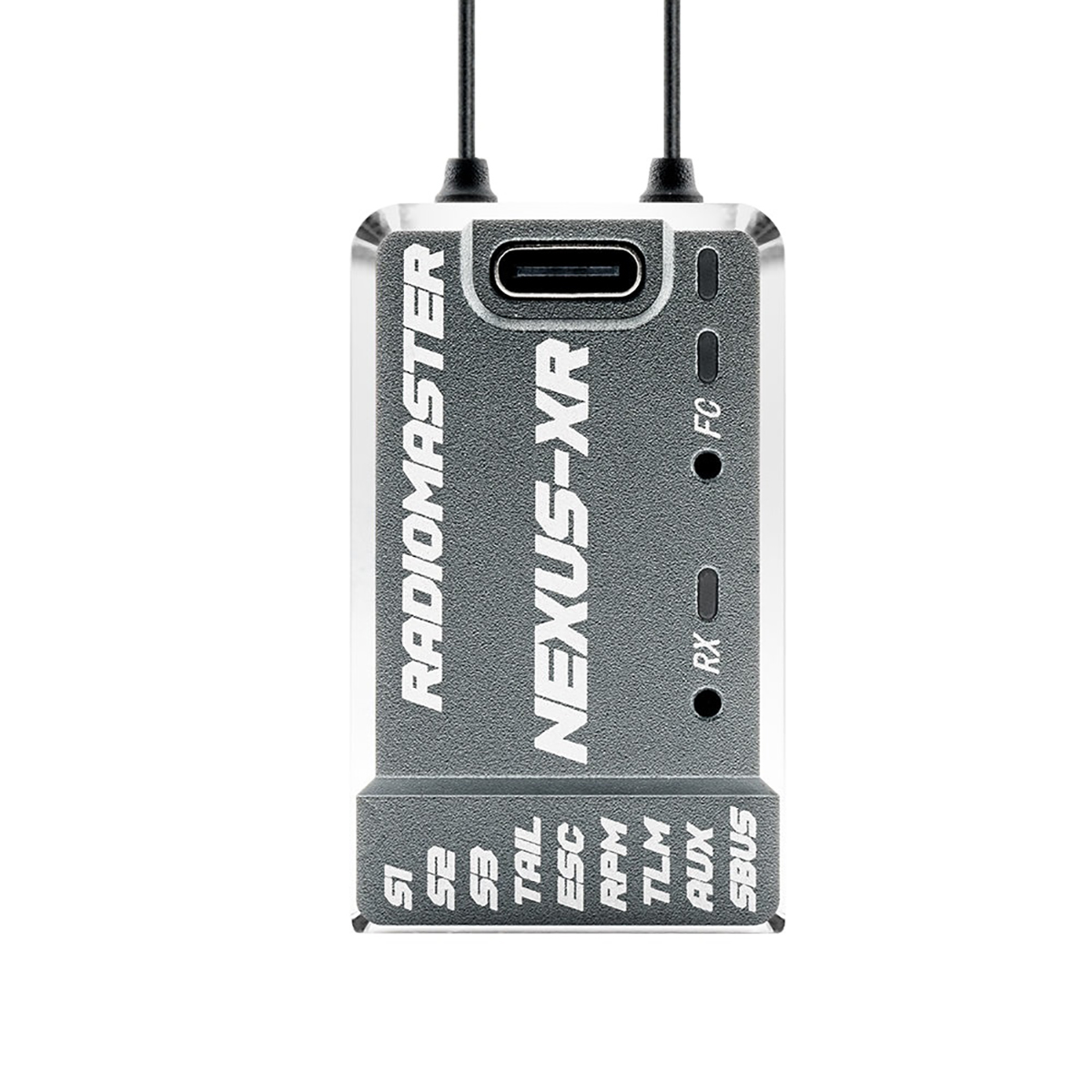

Radiomaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver for RC Fixed Wing Helicopter
Radiomaster Nexus-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver for RC Fixed Wing Helicopter

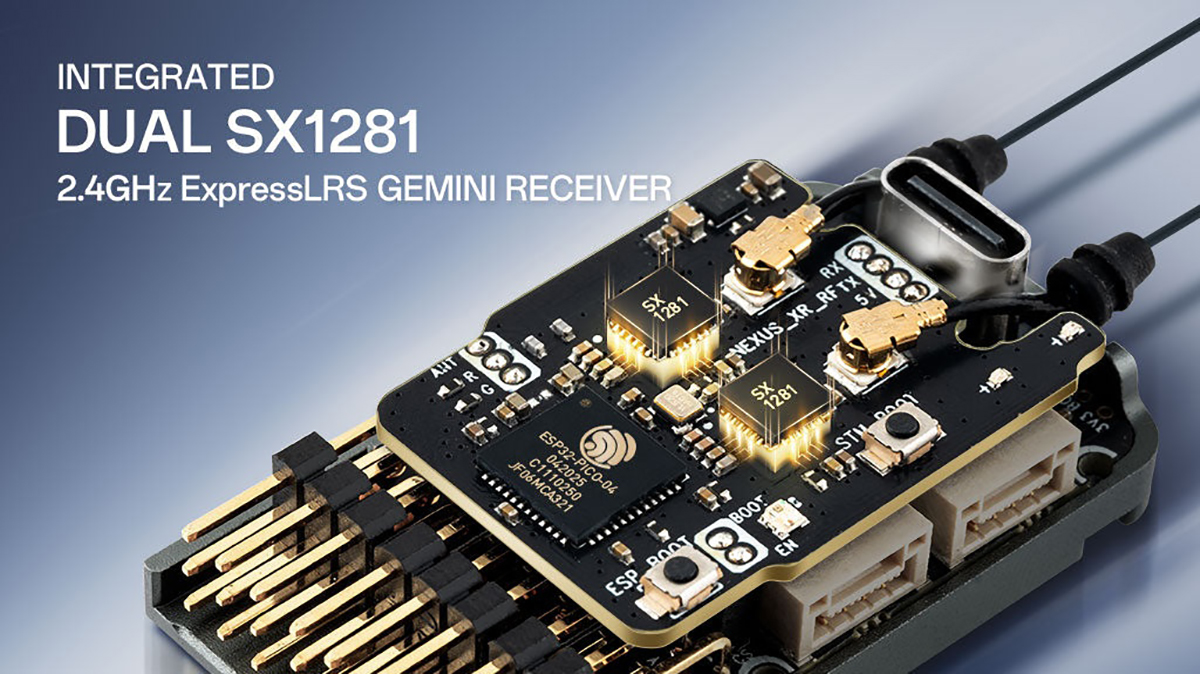

Integrated ExpressLRS Receiver: Dual Semtech SX1281 2.4GHz transceivers for seamless RF performance, eliminating the need for an external receiver.
Optimized for RF 2.2: Engineered for peak performance and compatibility.
Precision Control: STM32F722 MCU and ICM42688P 6-axis motion sensor/accelerometer for superior dynamics.
Data Logging: 256MB onboard flash memory for detailed logging and tuning.
Dual Antenna Design: Two 65mm wire antennae for superior signal strength and range.
Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
More PWM Pins: Additional pins for expanded control in complex setups.

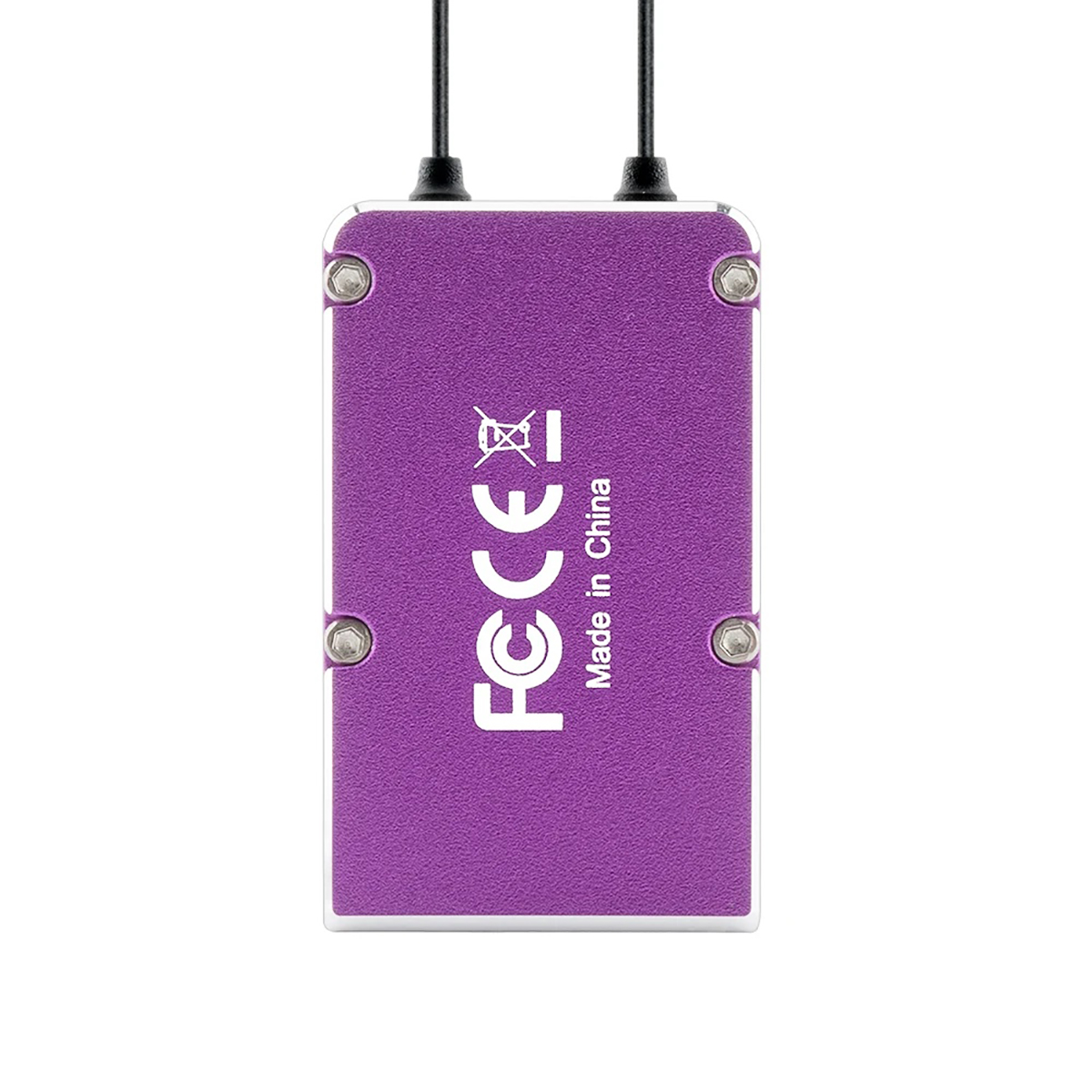

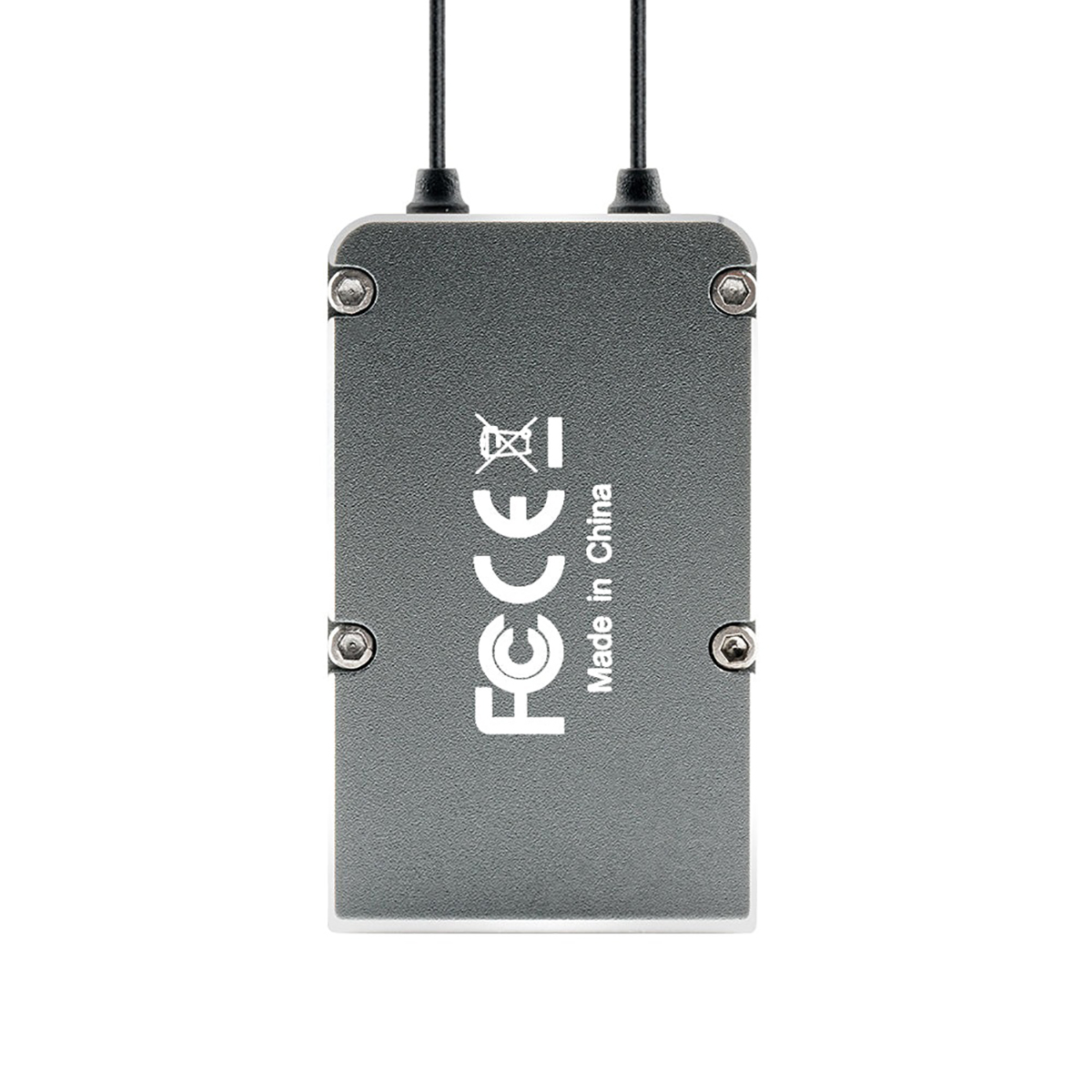

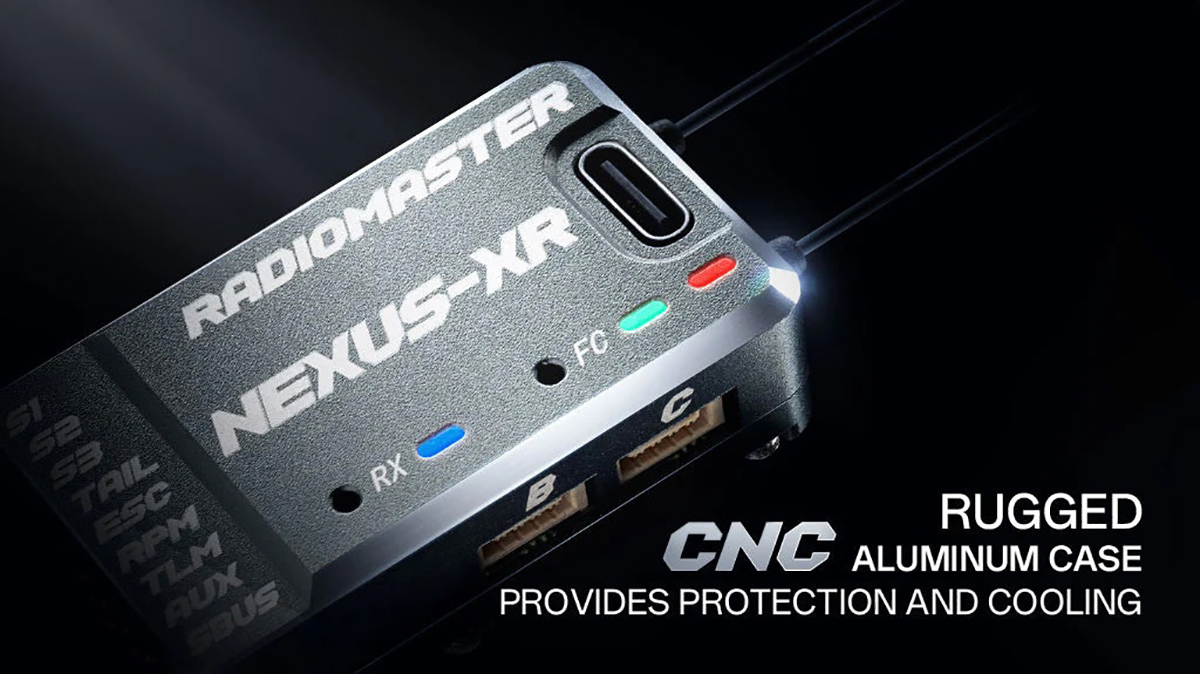

CNC-Machined Aluminum Case: Sleek, rugged design doubles as a heat sink to keep the system cool.
12V Servo Support: Capable of supporting 12-volt servos.
Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
Isolated Power Supplies: Dedicated 1.8V, 3.3V (MCU), and 5V (interfaces) to minimize noise.
USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
Compact and Lightweight: Ideal for any application.
RF Rescue: Standard feature for enhanced safety in emergencies.

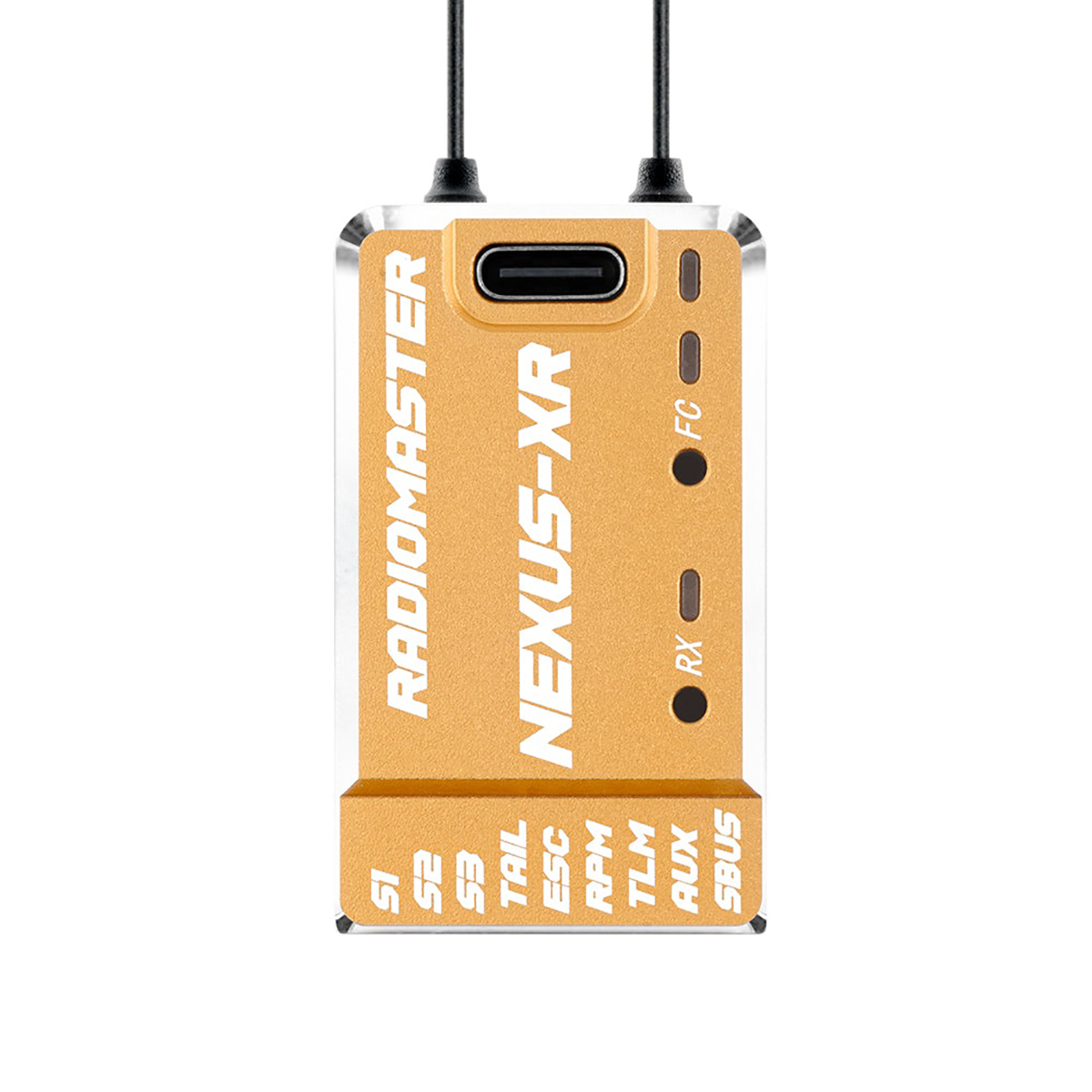

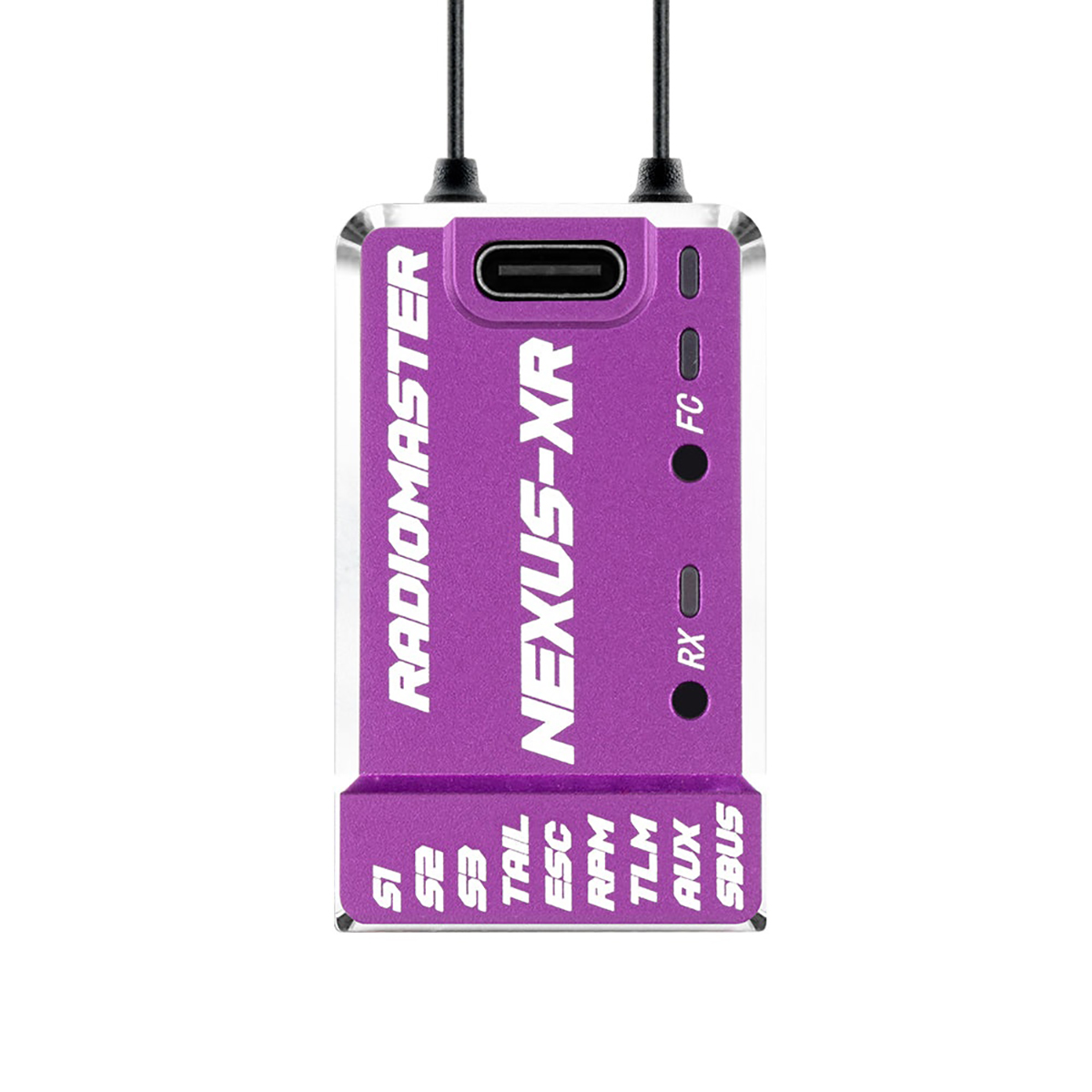

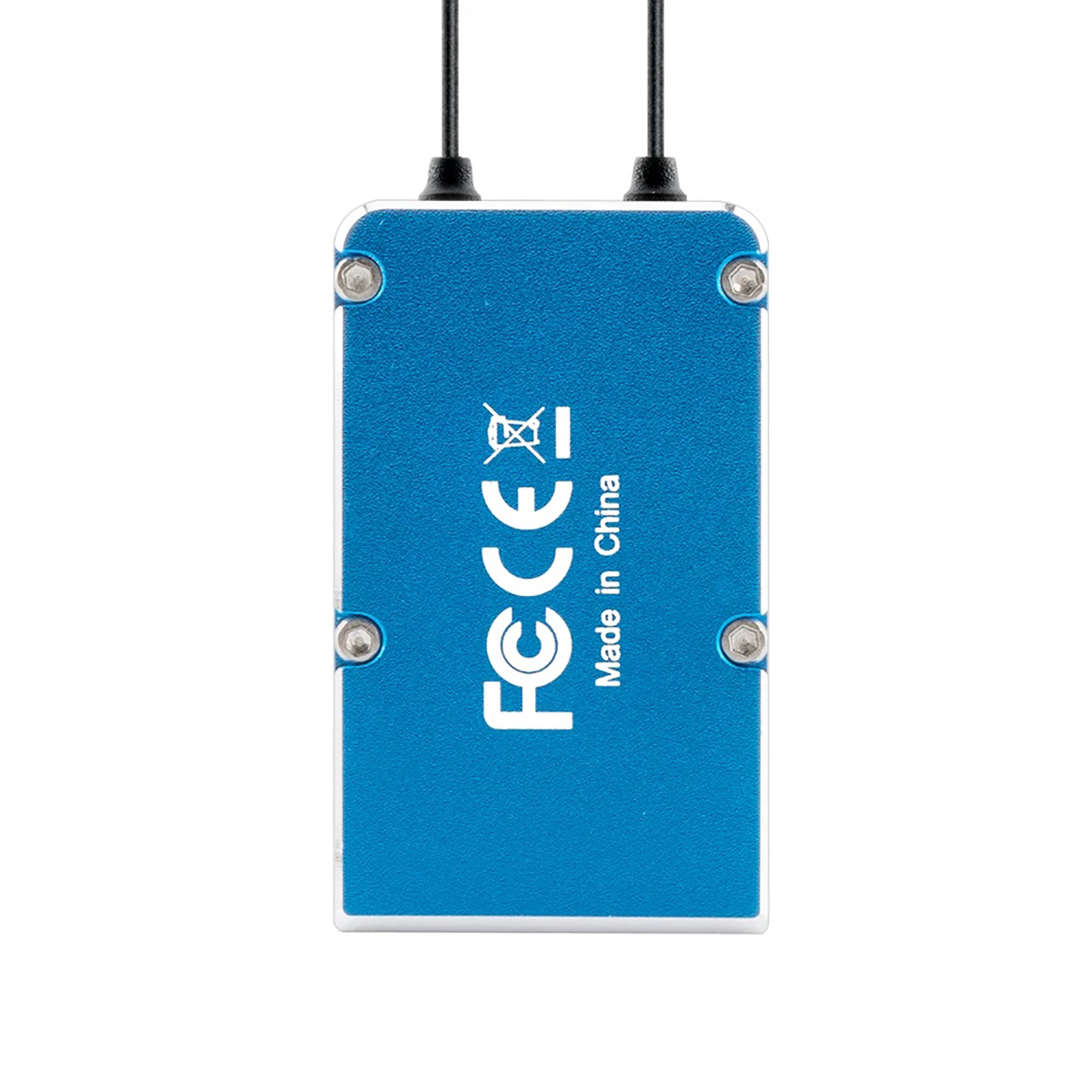

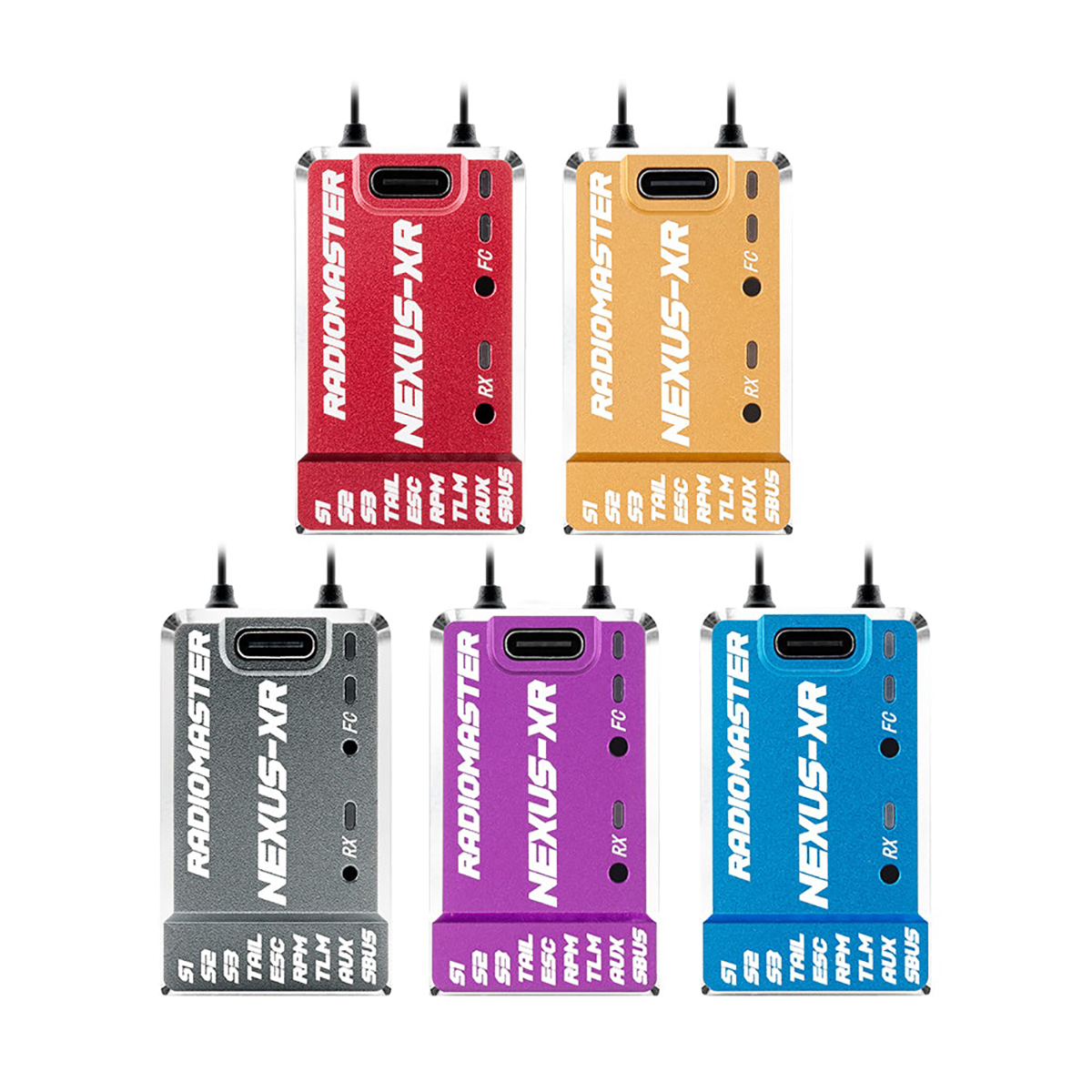

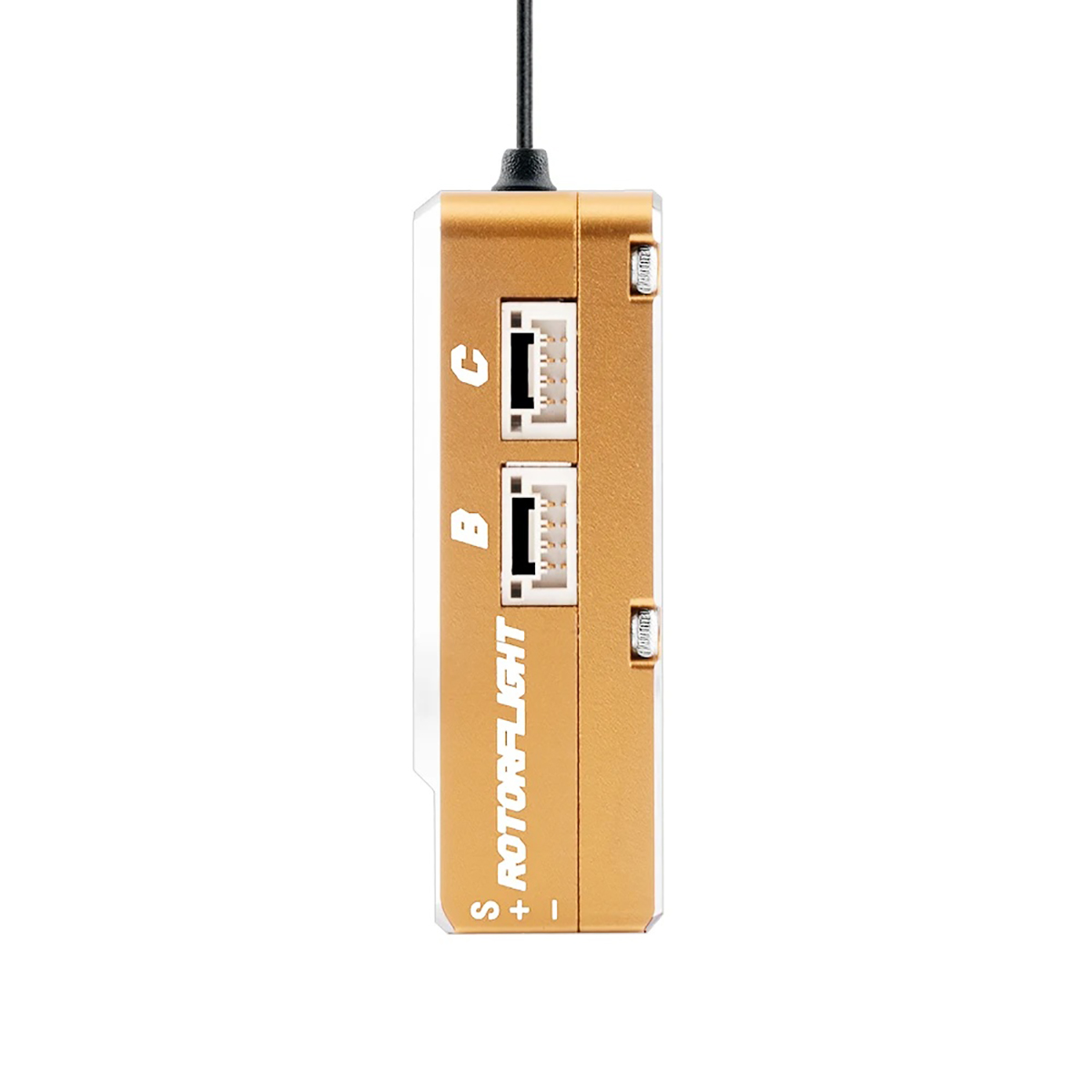

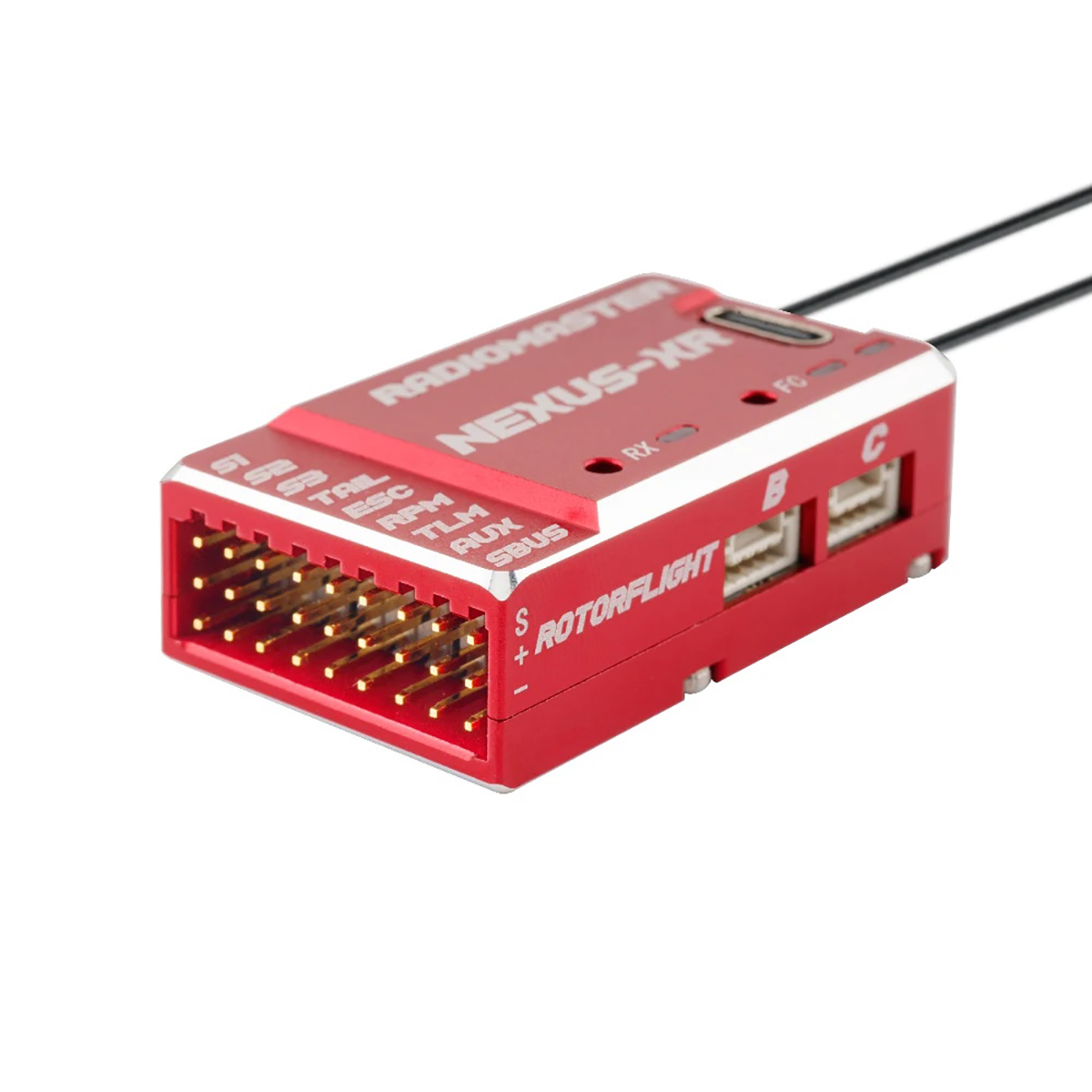

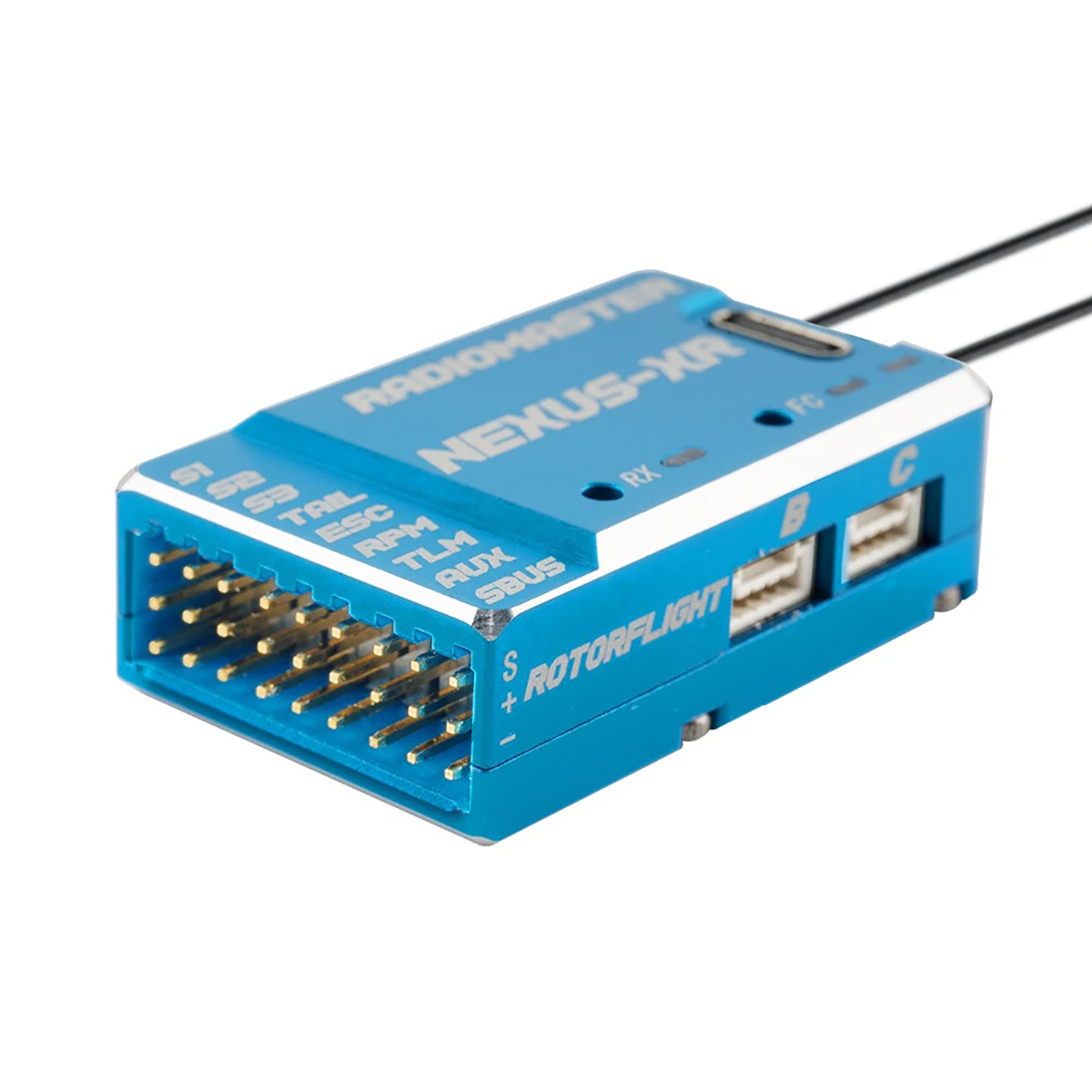

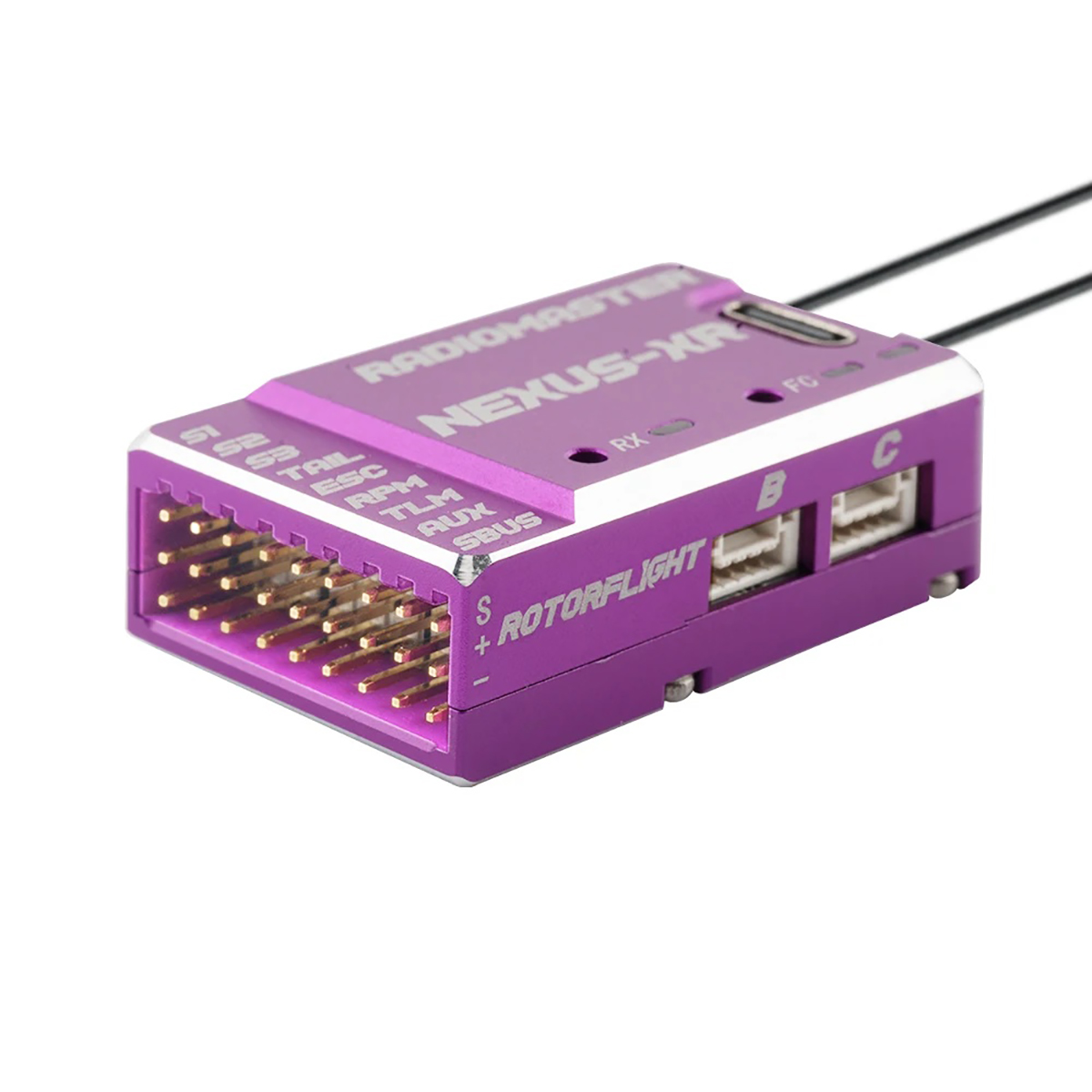

Optional Case Color: Grey / Gold / Red / Blue / Purple.

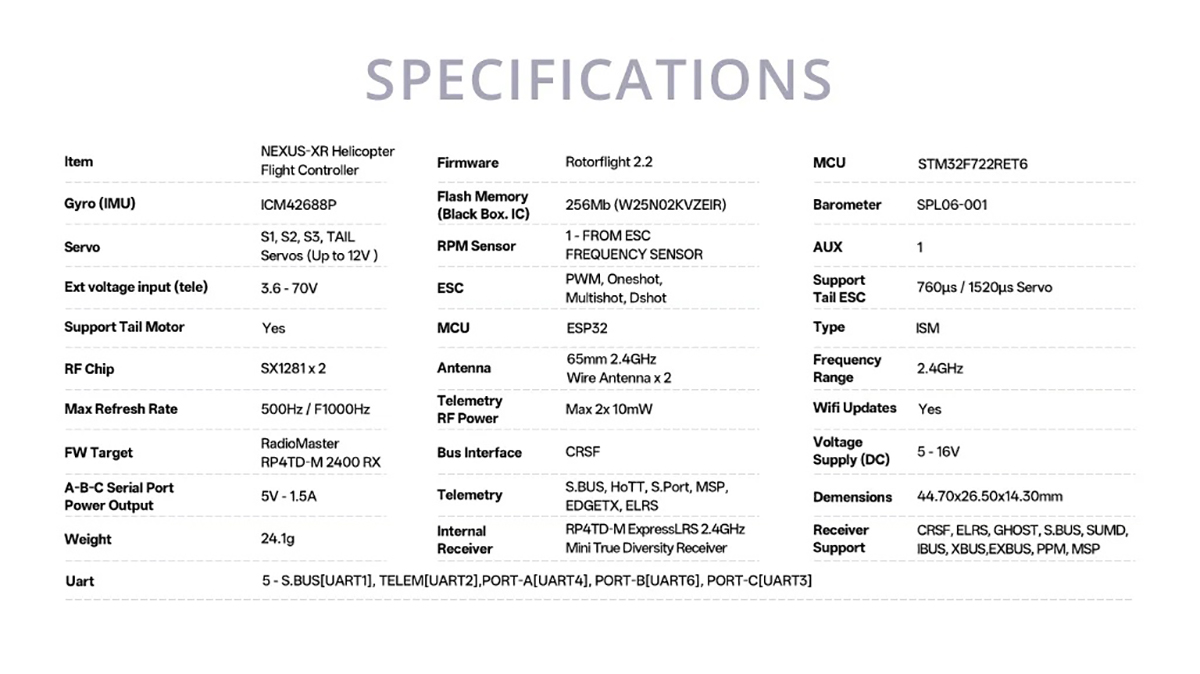

Model: NEXUS-XR Control System
Firmware: RF 2.2
MCU: STM32F722RET6
Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
Barometer: SPL06-001

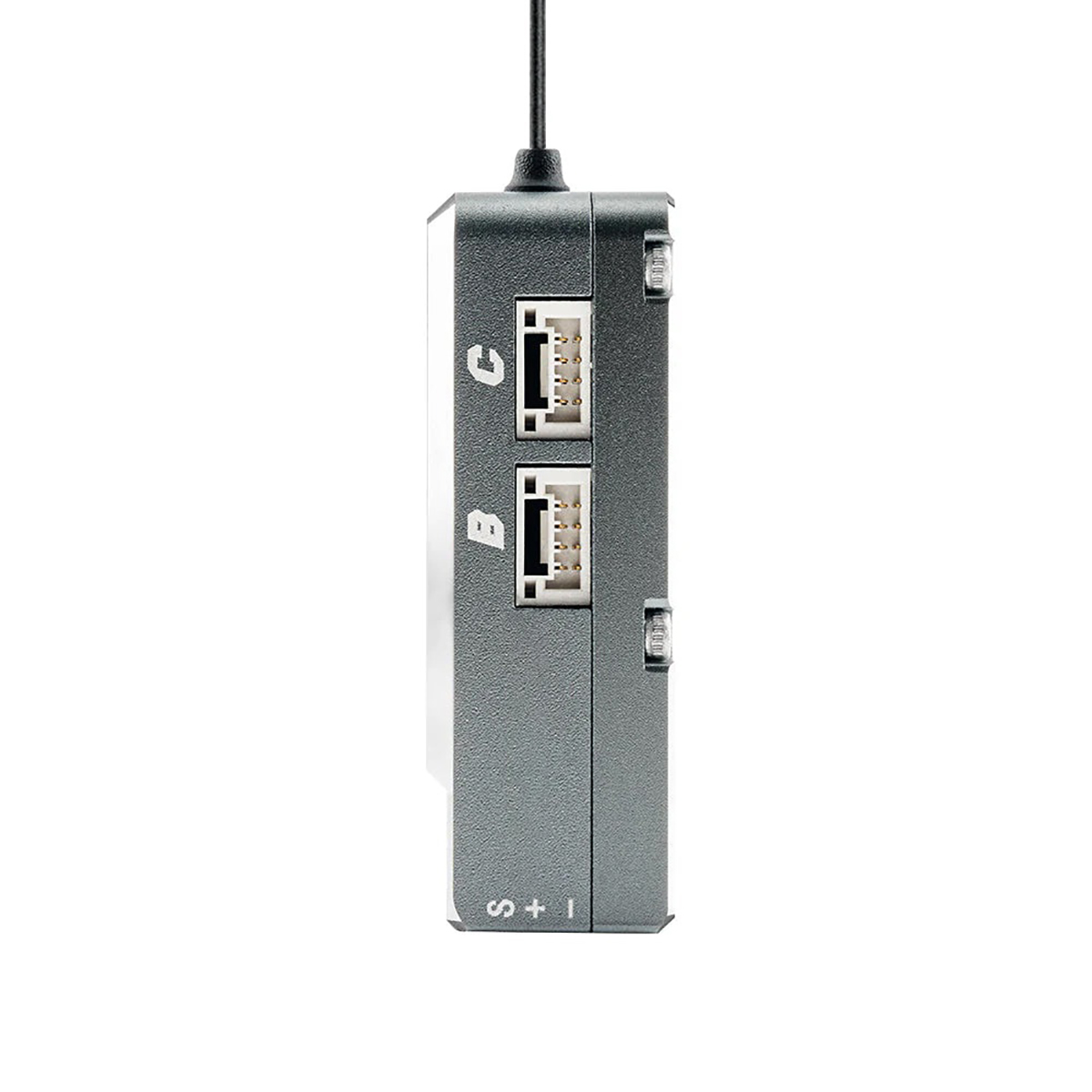

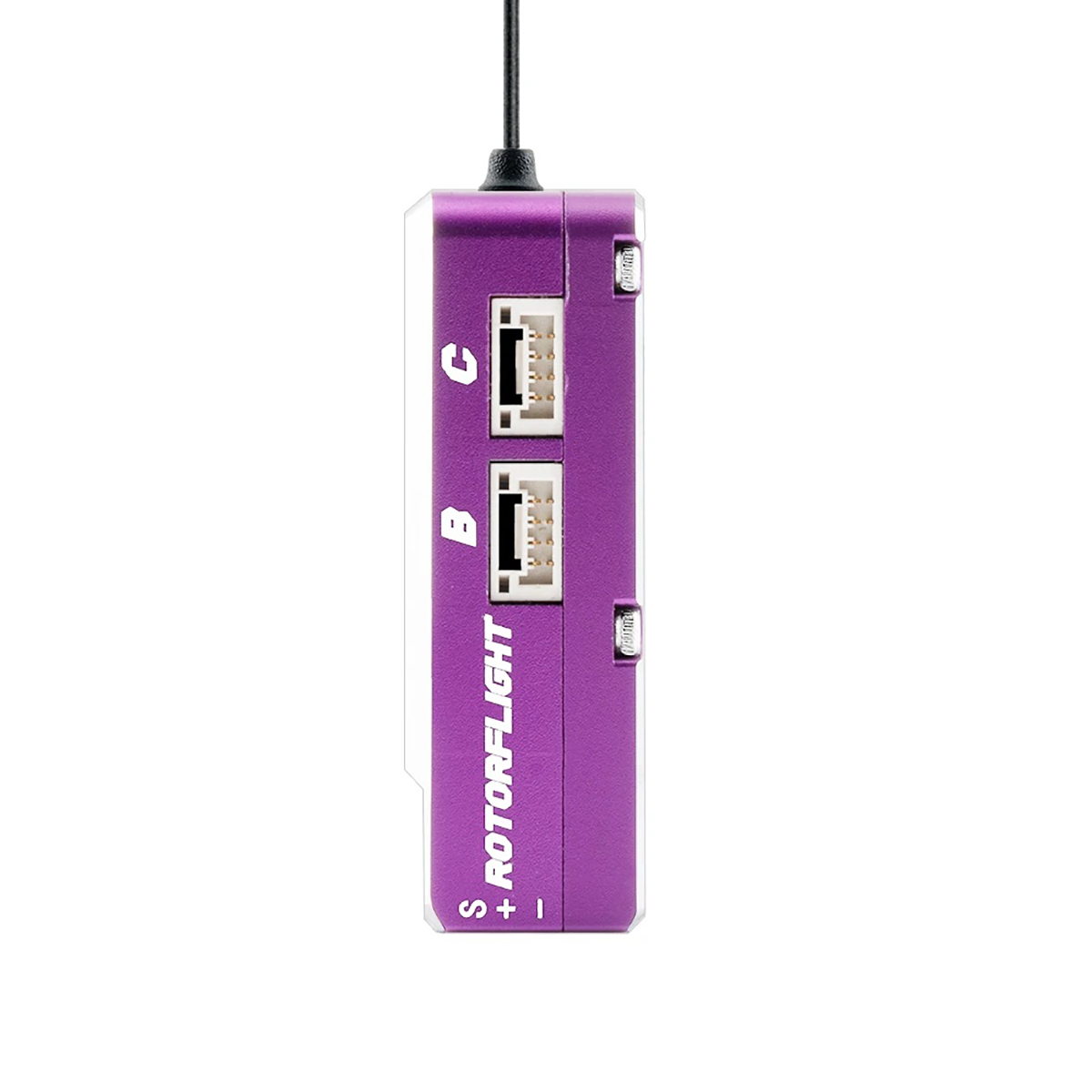

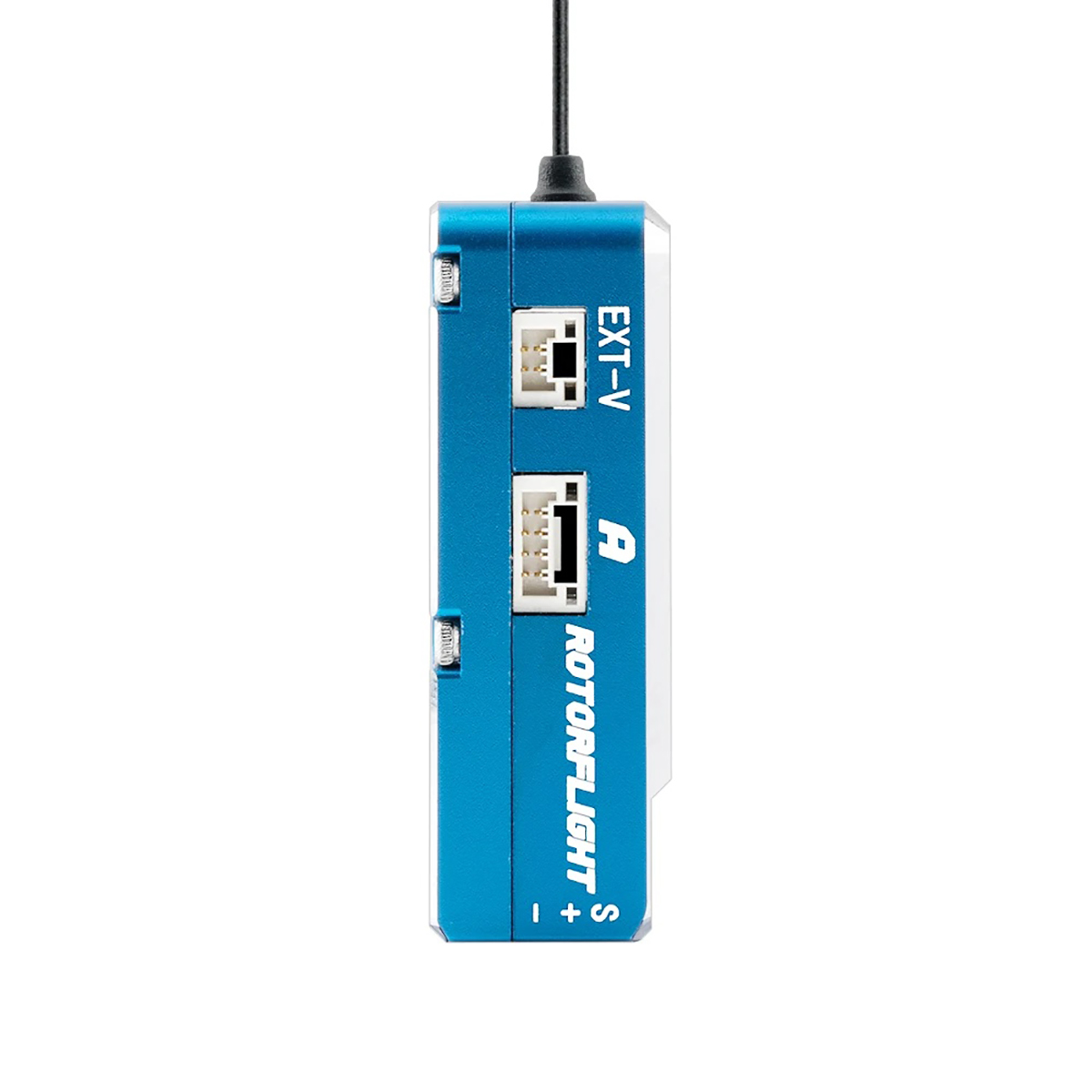

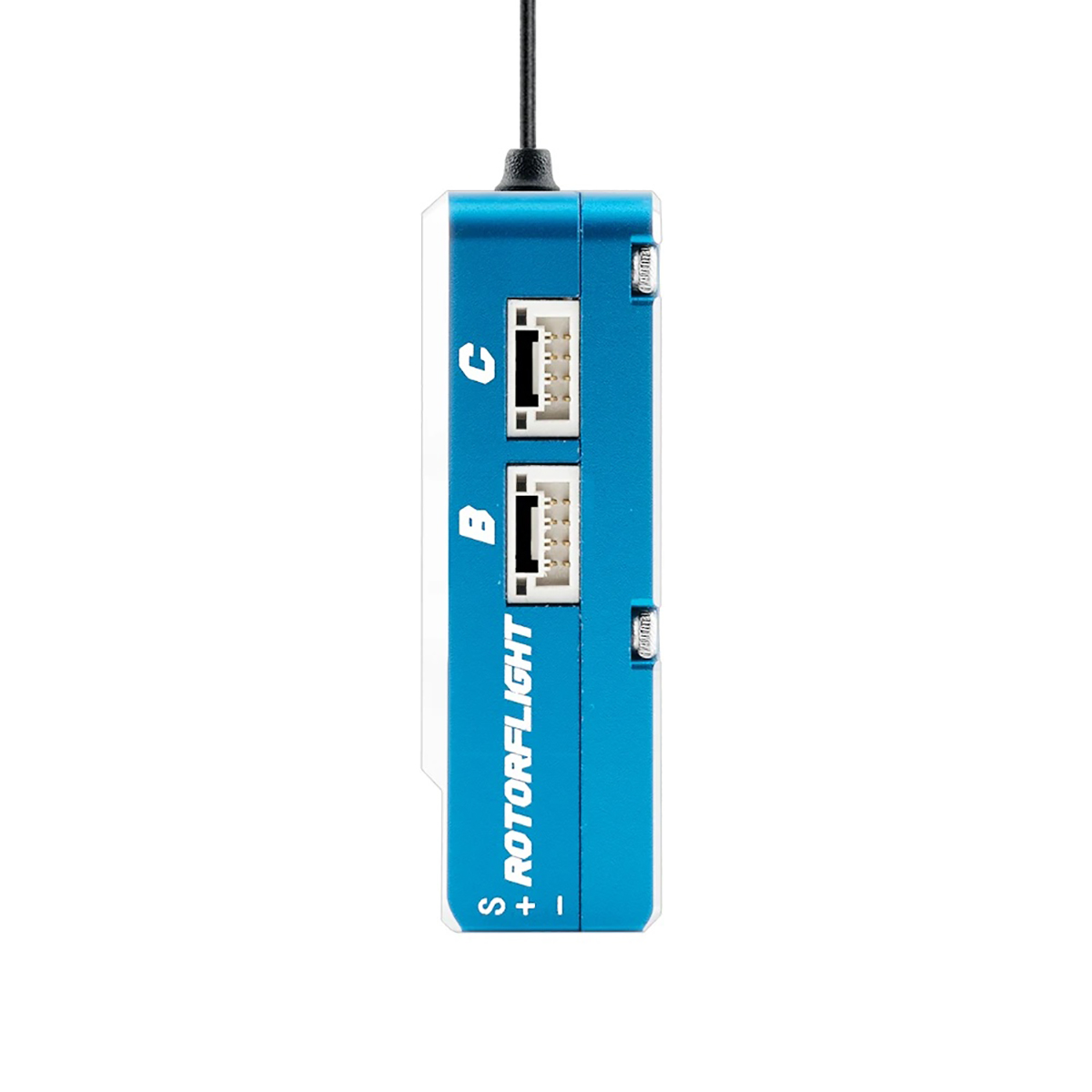

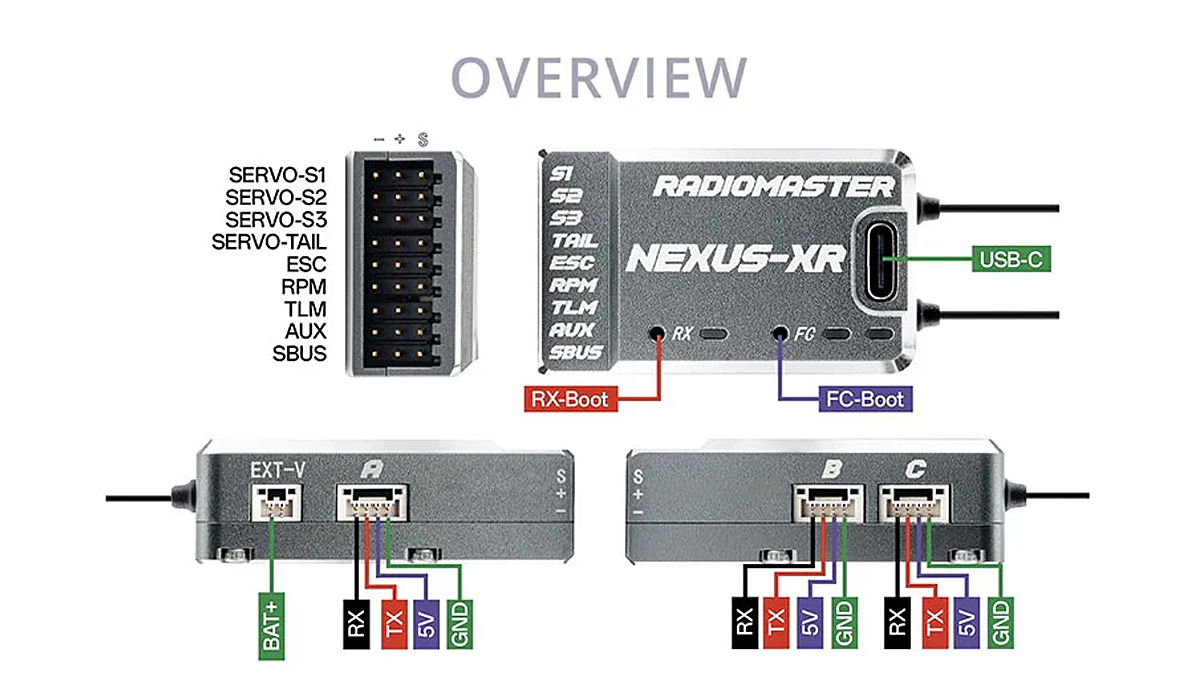

Uart: 5 – S.BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]

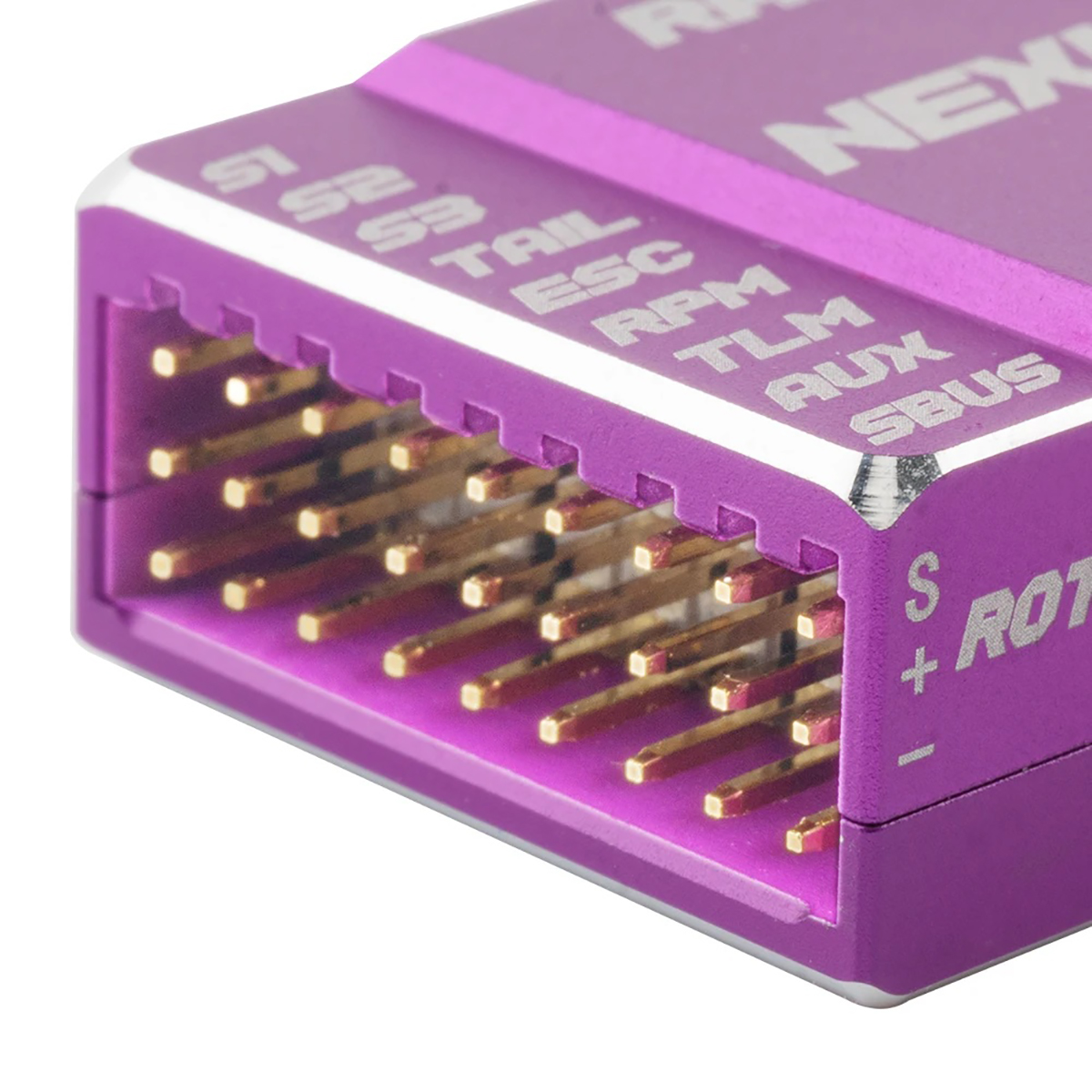

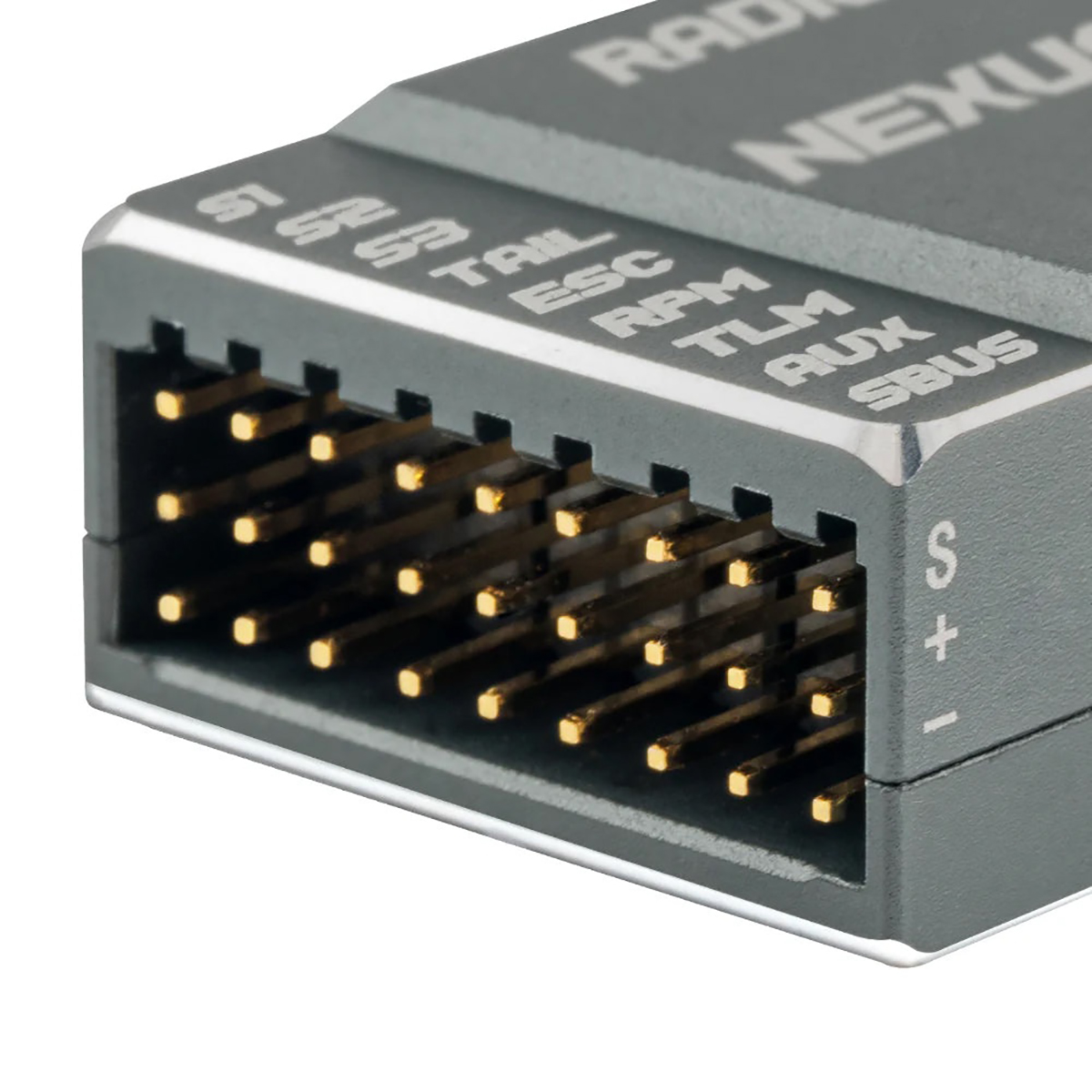

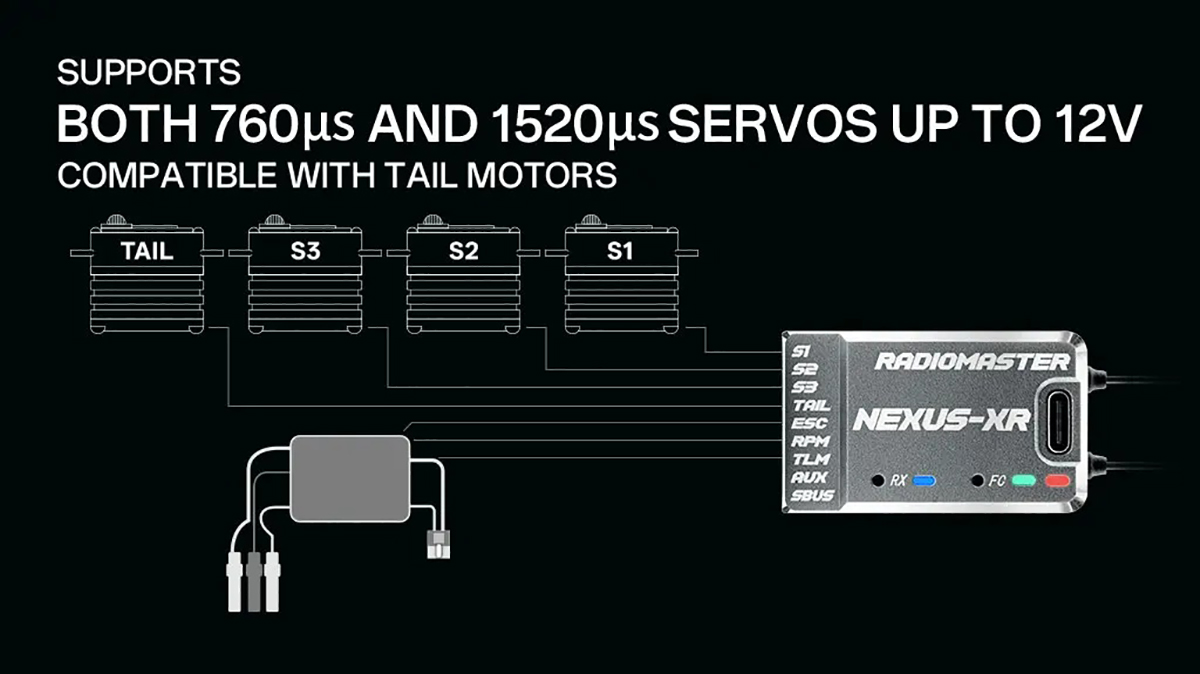

Servo: S1, S2, S3, TAIL Servos (Up to 12V )
Rpm Sensor: 1 – FROM ESC FREQUENCY SENSOR
AUX: 1

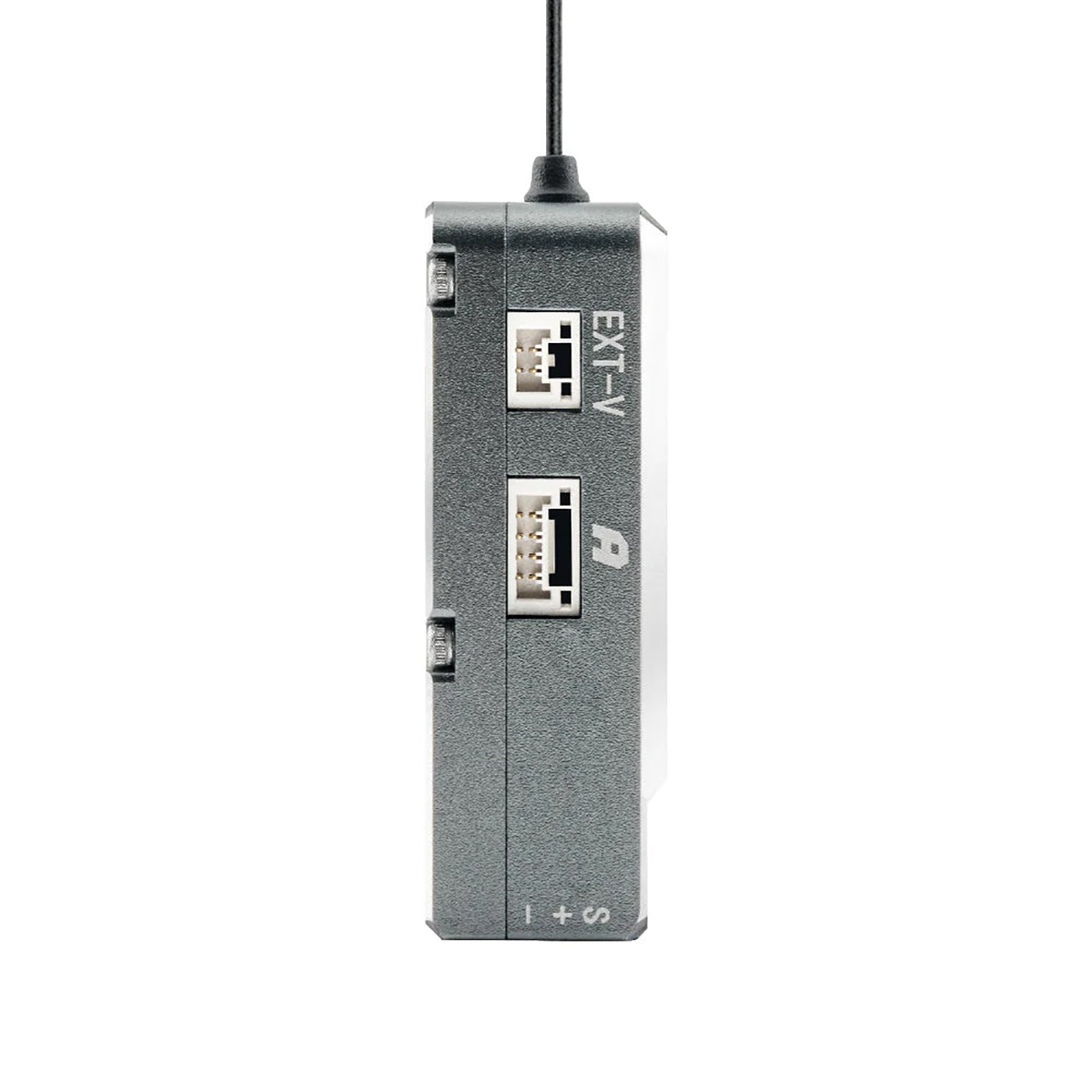

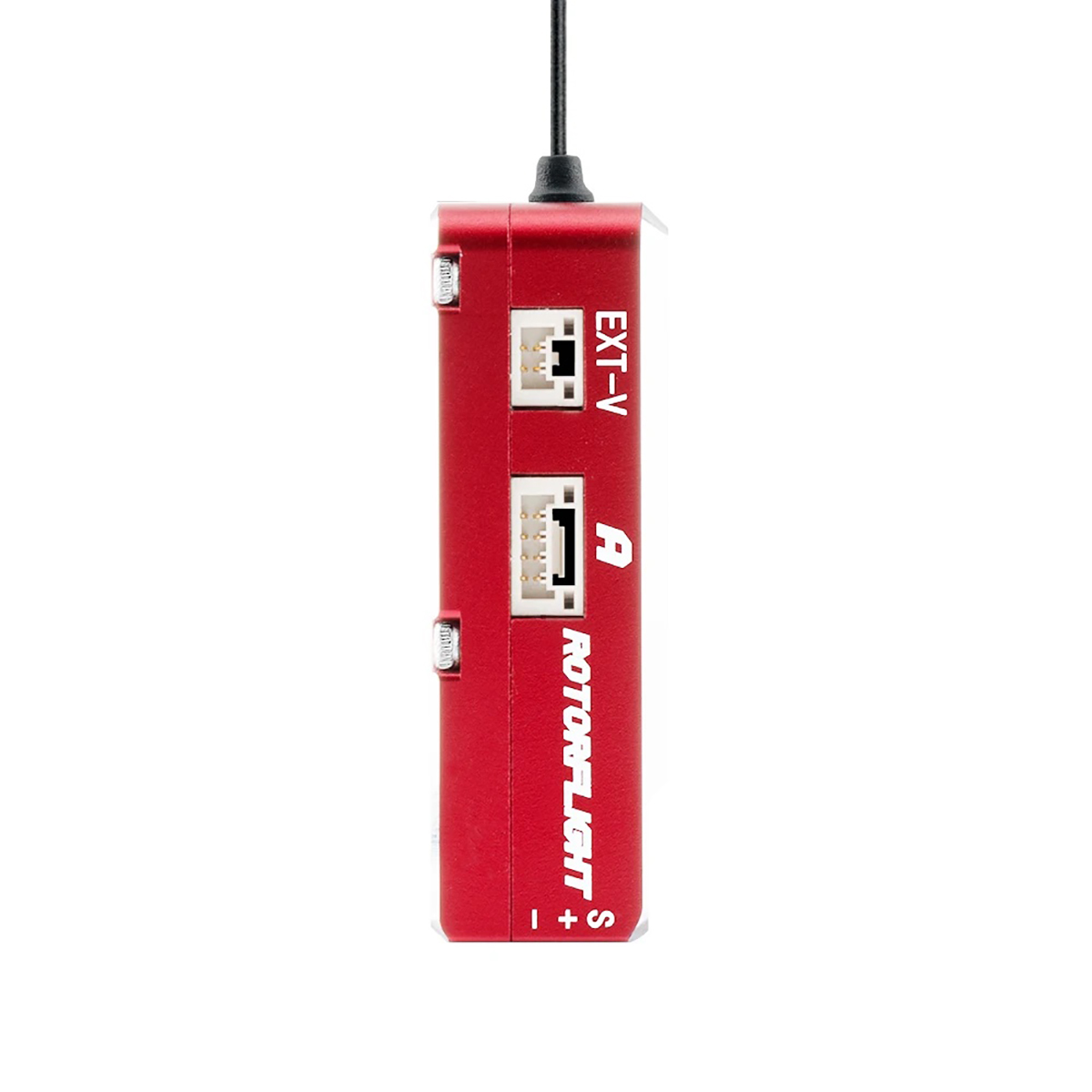

Ext voltage input (tele): 3.6-70v
Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
Voltage Supply(DC): 5 – 16V
A-B-C Serial Port Power Output: 5V – 1.5A
Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
Internal Receiver: RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver
MCU: ESP32
Type: ISM
RF Chip: SX1281 x 2
Antenna: 65mm 2.4GHz Wire Antenna x 2
Frequency Range: 2.4GHz
Maximum Refresh Rate: 500Hz / F1000Hz
Telemetry RF Power: Max 2 x 10mW
Wifi Updates: Yes
FW Target: RadioMaster RP4TD-M 2400 RX
Bus interface: CRSF
Demensions: 44.70 x 26.50 x 14.30mm

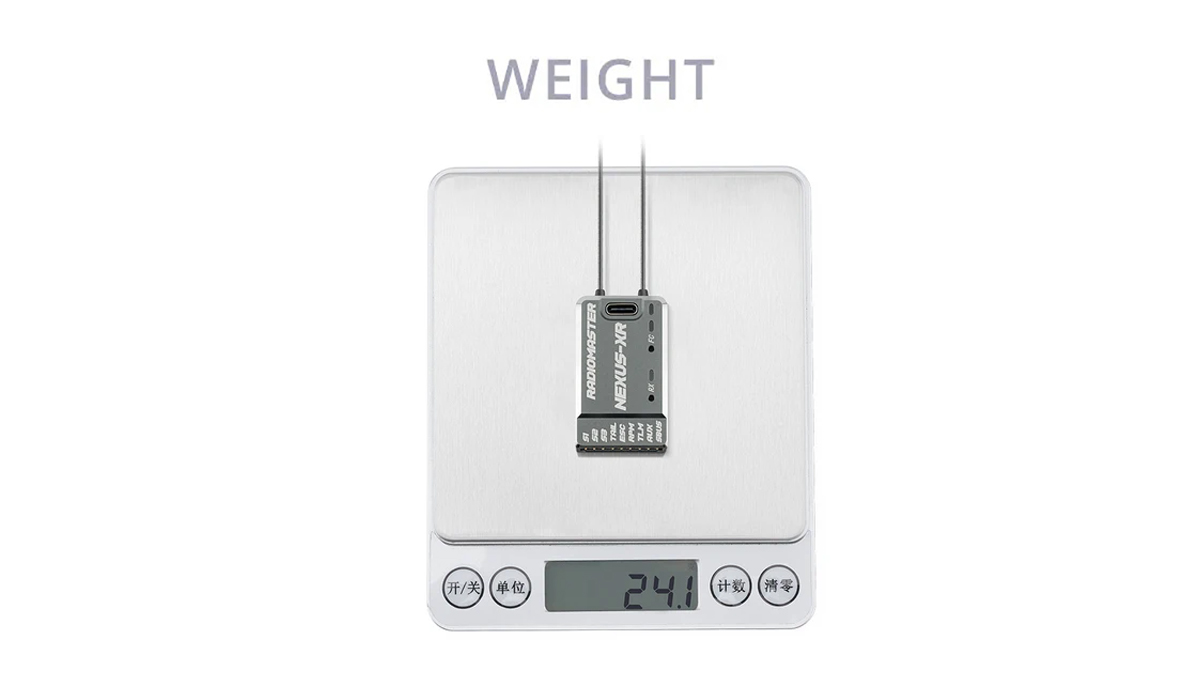

Weight: 24.1g

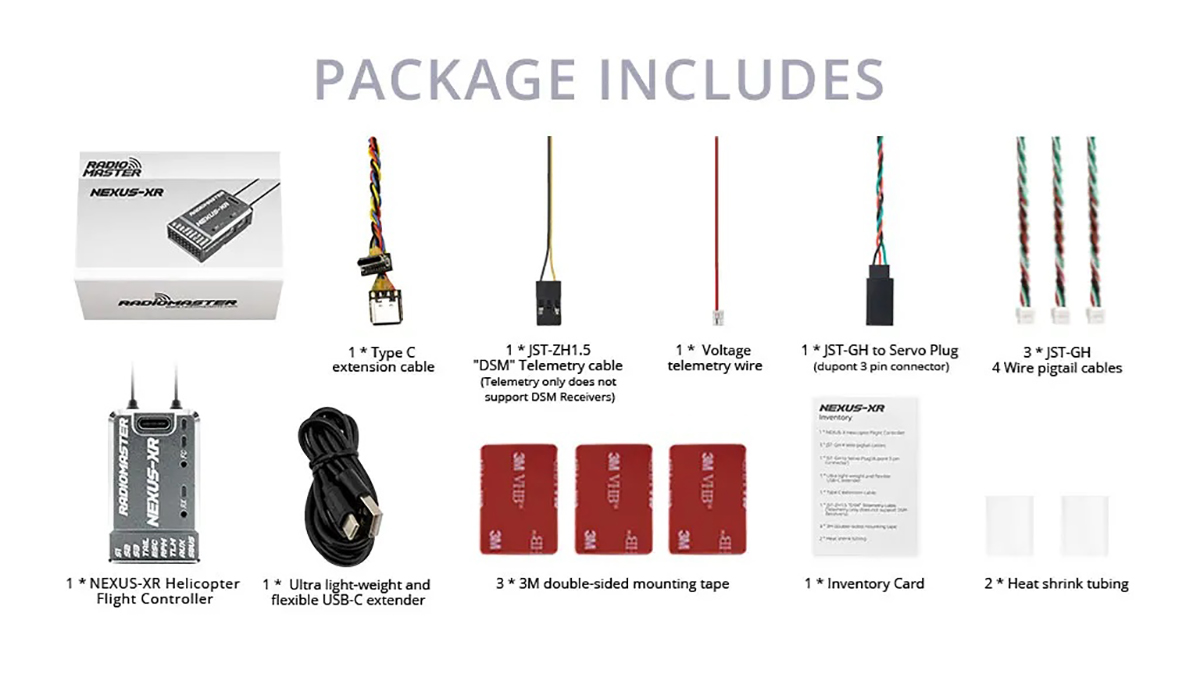

NEXUS-XR Control System x1
JST-GH 4 Wire pigtail cables x3
JST-GH to Servo Plug (dupont 3 pin connector) x1
Ultra light-weight and flexible USB-C extender x1
Type C extension cable x1
JST-ZH1.5 “DSM” Telemetry cable (Telemetry only does not support DSM Receivers) x1
Voltage telemetry wire x1
3M double-sided mounting tape x3
Heat shrink tubing x3
Inventory Card x1
