Super_s F3 Flight Controller Board Integrated OSD Brushless 5V BEC _S for FPV Quadcopter
-Support programmable LED Sprit (turn off transponder before using)
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Support the newest DSHOT ESC
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD
-Buzzer solder pin
-LED_STRIP connector
Notes:
-DSM and SBUS receiver input, please configure RX3(UART3) as input interface.
-DSM receiver power from 3.3V.
-SBUS and PPM receiver power from 5V.
Item name: Super_s F3 flight controller board
Size: 20*20mm
Mounting hole: 16*16mm
Diameter: 2mm
Weight: 1.9g
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.0_
Built-in ESC: 5V/0.5A
Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
Power supply: 2S lipo battery ( 6.5V-8.4V)
Suitable for 60mm-80mm mini brushless FPV Quadcopter frame

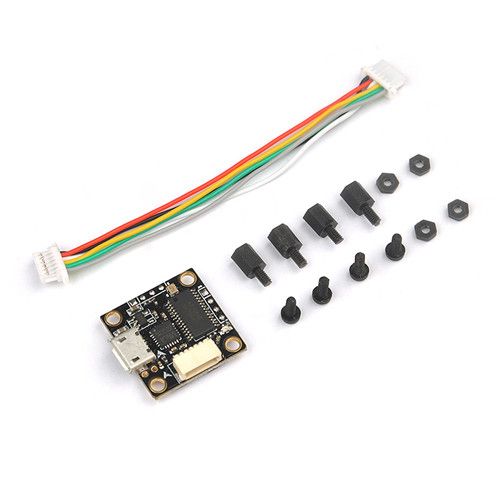

1* flight control board
