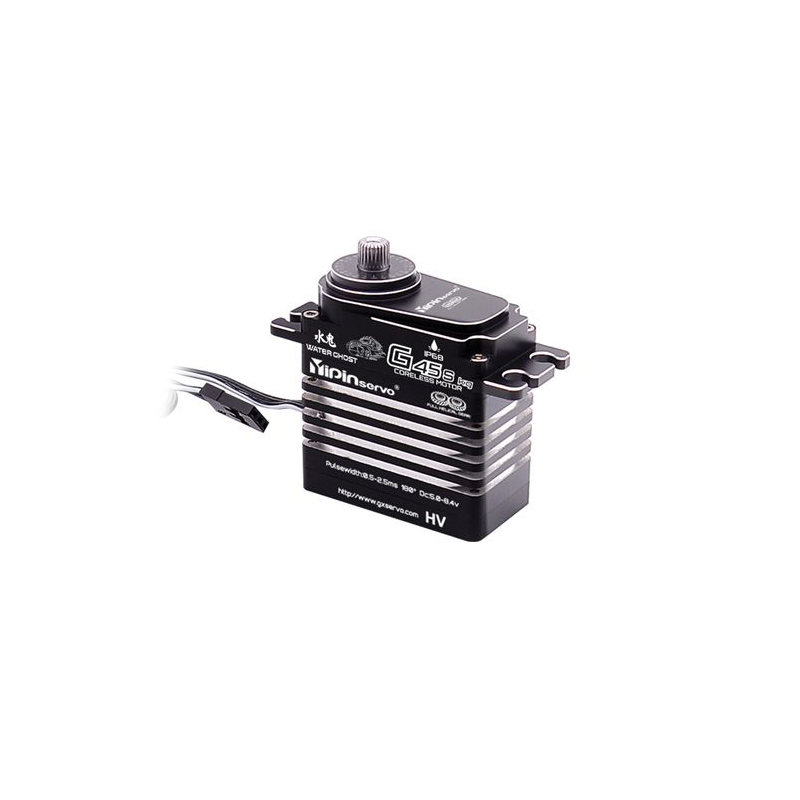

YIPIN 45kg Servo Coreless Motor Servo Waterproof IP68 Large Torque Magnetic Induct Steel Helical Gear for RC Car Underwater robot
YIPIN 45kg Servo Coreless Motor Servo Waterproof IP68 Large Torque Magnetic Induct Steel Helical Gear for RC Car Underwater robot
*The shell of yinservo digital steering machine is made of aviation aluminum alloy through CNC precision manufacturing.
*It has steel precision gears and a high-efficiency and long-life brushless motor.
*With waterproof and dust-proof functions, reaching IP68 waterproof grade and can be used in water.
*The servo has the functions of slow start and block rotation protection.
*Supports the function of DIY setting parameters on the computer (requires purchasing a separate USB programming card to set parameters).
*Supports free adjustment of pulse width angle.
Control System: Pulse width modulation control, 1520uS/333Hz.
Operating Voltage: 5 – 8.4V.
Temperature: -20°C to +60°C.
PWM Volts: 3.3 – 5V (advised).
Pulse Width Angle: 500 – 2500us; 180° (Support any angle within 357°).
Direction: Anticlockwise (500 – 2500us), opposite rotation is customizable.
Motor: CORELESS MOTOR.
Dead band: 2usec.
Gears Inside: Stiffen Stainless Steel Gears.
Signal: Digital.
Waterproof: IP68.
Bearing: 6BB.
Programmable: Supported.
Net Weight: 100.8g (without accessory).
Size: 40.5×21×50.15mm.
Wire length: JR300mm.

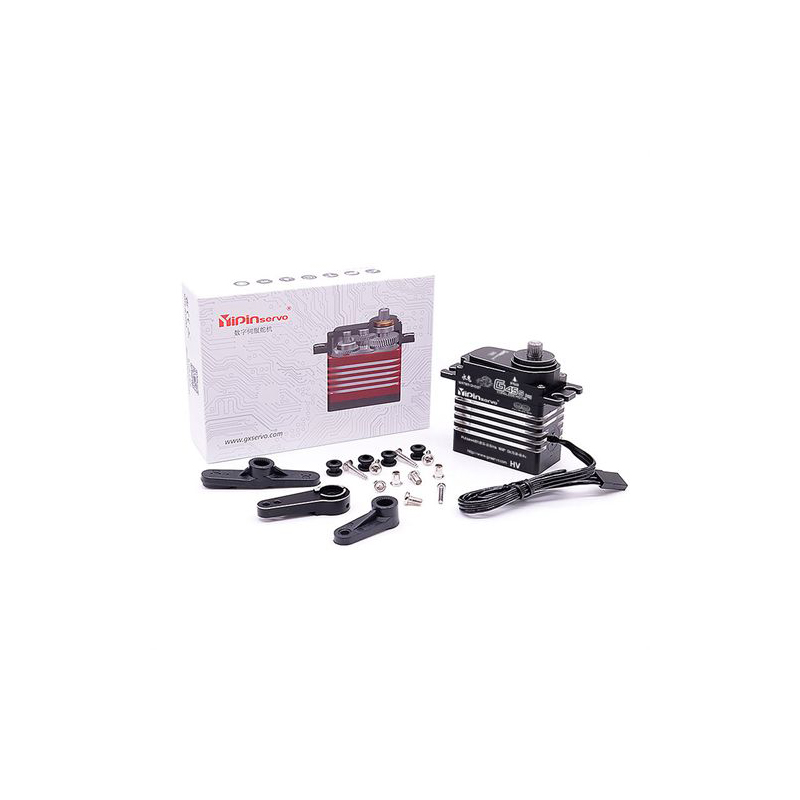

1×YIPIN 45kg Servo
