Brushless Speed Control (BL ESC) - Air/ Helis > Product details
GARTT YPG LV-18A (2-6S) Brushless Speed Controller ESC For RC Drone Airplane Engine Accessories
| Part No.: | YPG-LV-18A |
| Manufacturer: | Feixiang |
Send to a friend
Features
• Powerful 5.5V/4A Switching BEC
• Optional programming card for convenient setup
• Super fine throttle resolution provides first-rate and highly accurate linearity
• Super smooth adjustable start-up mode
• Constant RPM mode (governor mode)
• Adjustable F3A brake.
• 3 steps adjustable normal EMF brake
• High anti-interference capability
• Low voltage cut-off protection with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
• Soft cut-off option at low voltage, slows motor RPM gradual rather than hard cutoff (LVC)
• Low voltage cut-off can be disabled
• Variable cut-off voltage / cell
• Active free-wheeling circuit allows for unlimited "partial load" capability
• LED status display
• Adjustable motor timing from 0° to 30°
• Blocked rotation protection (senses a jammed motor and stops motor rotation)
• Motor reversing from ESC (no need to change ESC/motor wires)
• Over-temperature protection and overload alarm
• Throttle signal lose protection. If the signal is lost for 3 seconds, the power will automatically cut-off.
• Safe power-on. (Motor will not start until throttle is returned to lowest position)
**This ESC is compatible with both helicopter and airplane models.***
• Optional programming card for convenient setup
• Super fine throttle resolution provides first-rate and highly accurate linearity
• Super smooth adjustable start-up mode
• Constant RPM mode (governor mode)
• Adjustable F3A brake.
• 3 steps adjustable normal EMF brake
• High anti-interference capability
• Low voltage cut-off protection with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
• Soft cut-off option at low voltage, slows motor RPM gradual rather than hard cutoff (LVC)
• Low voltage cut-off can be disabled
• Variable cut-off voltage / cell
• Active free-wheeling circuit allows for unlimited "partial load" capability
• LED status display
• Adjustable motor timing from 0° to 30°
• Blocked rotation protection (senses a jammed motor and stops motor rotation)
• Motor reversing from ESC (no need to change ESC/motor wires)
• Over-temperature protection and overload alarm
• Throttle signal lose protection. If the signal is lost for 3 seconds, the power will automatically cut-off.
• Safe power-on. (Motor will not start until throttle is returned to lowest position)
**This ESC is compatible with both helicopter and airplane models.***
Product Details
Max Cont Current: 18A
Max Burst Current: 20A for 10 seconds
Input Voltage: 2-6 cells li-XX or 6-12 Ni-MH/Ni-Cd battery
BEC: 5.5V/4A Switching BEC
PWM: 8~16 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
PCB Size: 34x24x9mm
Weight: 22g (including wires)
Max Burst Current: 20A for 10 seconds
Input Voltage: 2-6 cells li-XX or 6-12 Ni-MH/Ni-Cd battery
BEC: 5.5V/4A Switching BEC
PWM: 8~16 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
PCB Size: 34x24x9mm
Weight: 22g (including wires)
Item Packing
YPG LV 18A ESC x 1

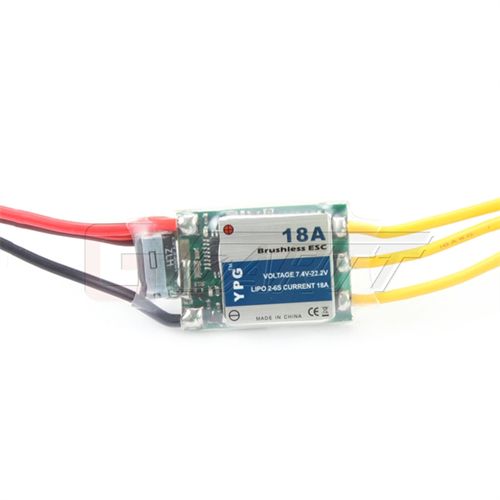

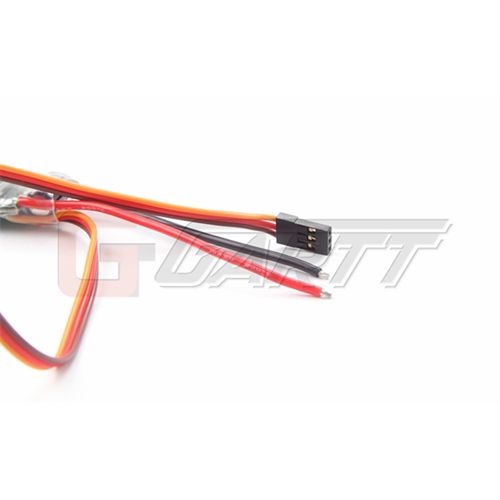

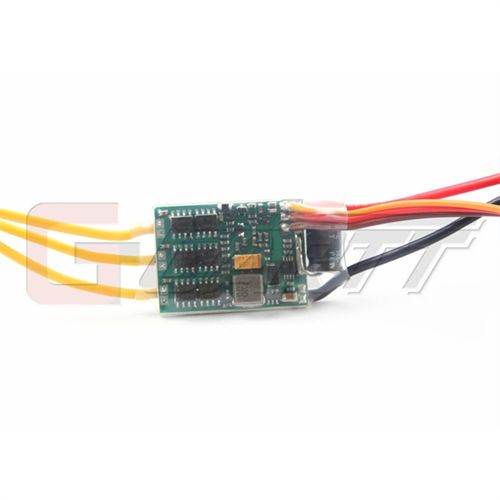

Detailed Images
