CUAV CPBD PRO High Voltage Power Distribution Board V5 Version For Pixhawk Pixhack Flight Controller
| Part No.: | CPDB-PRO-V5 |
| Manufacturer: | CUAV |
Send to a friend
Features
- Support higher input voltage: 10V-60V (3s-14S battery) (Battery is not included)
- More precise current and voltage detection: voltage detection accuracy: ±0.1v; current detection accuracy: ±0.2A
- Support higher power port output current: 5A
- Maximum (detection) current: 60A
- Maximum output current: 60A
- Independent 12V 4A interface
- More precise current and voltage detection: voltage detection accuracy: ±0.1v; current detection accuracy: ±0.2A
- Support higher power port output current: 5A
- Maximum (detection) current: 60A
- Maximum output current: 60A
- Independent 12V 4A interface
Product Details
- Working voltage: 10~60v
- Working current: 0~80A (maximum measurable current 60A)
- Current accuracy: 0.2A
- Voltage accuracy: 0.1V
- ESC power interface: 4
- Power interface load capacity:
12v out: 4A
5V out: 2A
FC power: 5A
- Interface Type:
Battery interface: XT60 (Battery is not included)
12V OUT/5V OUT/FCP Power: GH1.2
- Product weight: 35g
- Working current: 0~80A (maximum measurable current 60A)
- Current accuracy: 0.2A
- Voltage accuracy: 0.1V
- ESC power interface: 4
- Power interface load capacity:
12v out: 4A
5V out: 2A
FC power: 5A
- Interface Type:
Battery interface: XT60 (Battery is not included)
12V OUT/5V OUT/FCP Power: GH1.2
- Product weight: 35g

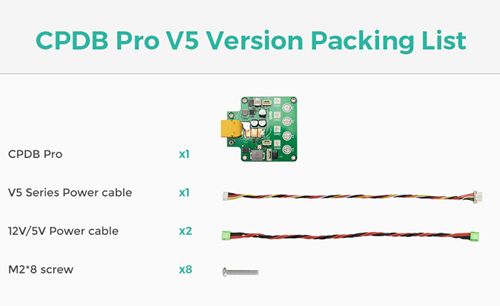

Item Packing
CPDB Pro x 1
V5 Series Power cable x 1
12V/5V Power cable x 2
M2*8 screw x 8
V5 Series Power cable x 1
12V/5V Power cable x 2
M2*8 screw x 8

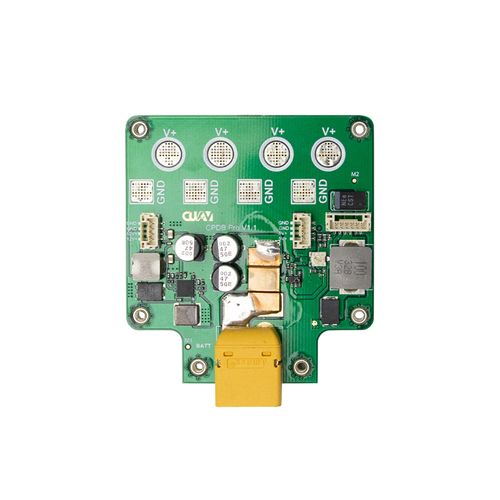

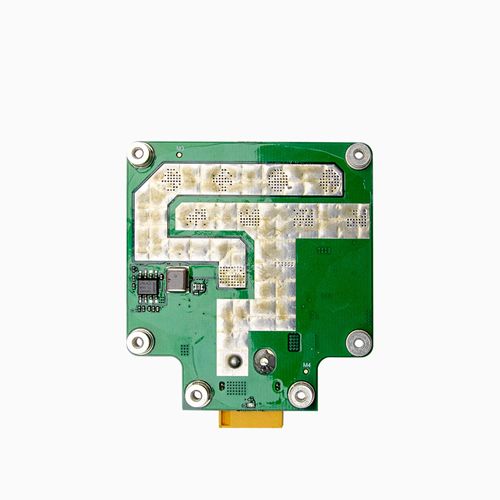

Detailed Images
