Zhiyun-Tech CRANE-M2 3-Axis Handheld Gimbal Stabilizer

Zhiyun-Tech CRANE-M2 3-Axis Handheld Gimbal Stabilizer
Part No.: CRANE-M2
Manufacturer: Zhiyun

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

The CRANE-M2 offers 360° pan, 310° tilt, and 324° roll rotation across six modes of operation, including POV and Vortex modes. It runs for approximately seven hours on a built-in battery that's rechargeable using an included micro-USB cable. Over built-in Wi-Fi, the gimbal is able to sync up with a Wi-Fi-enabled camera that supports remote zoom, shutter, and video start/stop control. These functions can be operated from a zoom rocker and other controls on the gimbal. Furthermore, over built-in Bluetooth, the camera syncs up with a free-download ZY Play mobile app for iOS and Android for additional capabilities. The app provides remote control over many functions of the gimbal and also has filmmaking features such as time-lapse, panorama, and slow-motion capture.

An OLED display on the gimbal confirms the selected operation mode, battery level, Bluetooth/Wi-Fi status, and other functions. The CRANE-M2 features a quick release camera mounting system that lets you secure or remove your camera at the push of one lock button. Scale marks and memory locks help you balance the camera and lock the balance position for the camera used. A hand strap and mini tripod are also supplied with the gimbal. The mini tripod attaches on the bottom to function as a tripod or a stand, but it can also be used as an extension to provide you with even more control over the gimbal and camera, as you'll have a better grip on the gimbal.

Product Details

Battery
Operation Voltage
Max: 12.6 v
Standard: 11.1 v
Min: 9.8 v
Output Voltage
Standard: 5 v
Operation Temperature
Max: 45 °C
Standard: 25 °C
Min: -10 °C
Battery Runtime
Max: 7 h
Charging Time
Standard: 2 h
2000 mA 500 mA
Stabilizer
Following Deviation in Motion State:
Max: ± 0.3 °
Min: ± 0.05 °
Following Deviation in Static State:
Max: ± 0.04 °
Min: ± 0.01 °
Tilt Mechanical Range:
Standard: 310 °
Roll Mechanical Range:
Standard: 324 °
Pan axis movement angle range:
Standard: 360 °
Unlimited rotation
Valid Payload:
Max: 720 g
Min: 130 g

* Data on the website is just lab data for reference only. Please read the User Manual for more information.

Item Packing

CRANE-M2 3-Axis Handheld Gimbal Stabilizer x 1
Quick Release Plate x 1
Hand Strap  x 1
Thumbscrew x 1
Smartphone Mount Clip x 1
Micro-USB Type-C Cable x 1
Storage Box x 1

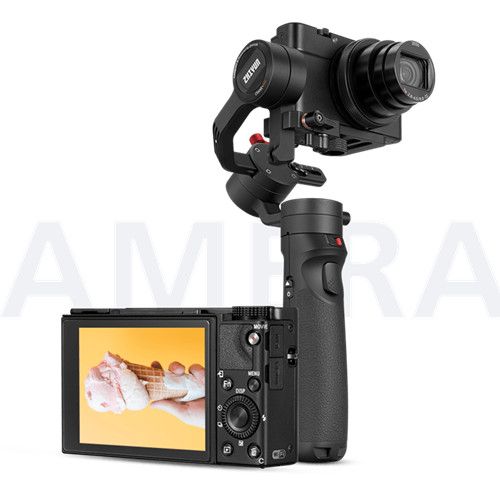

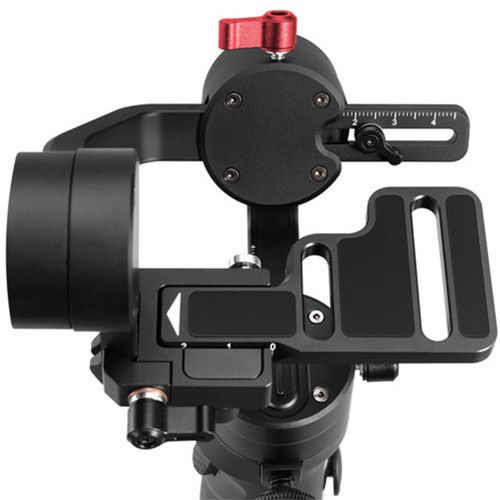

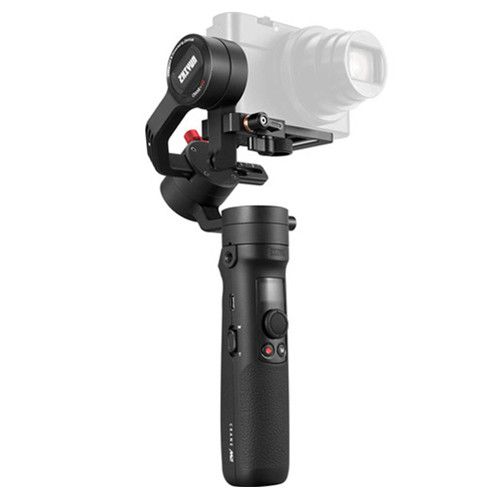

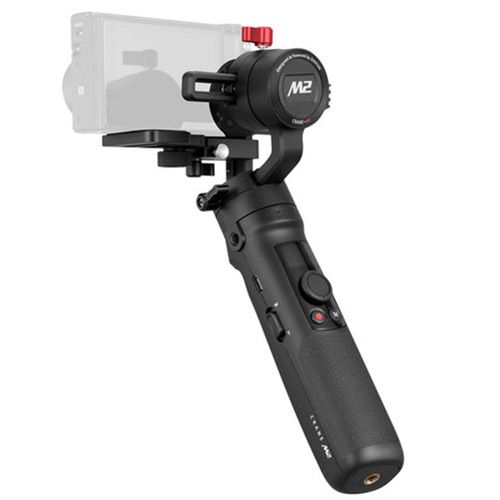

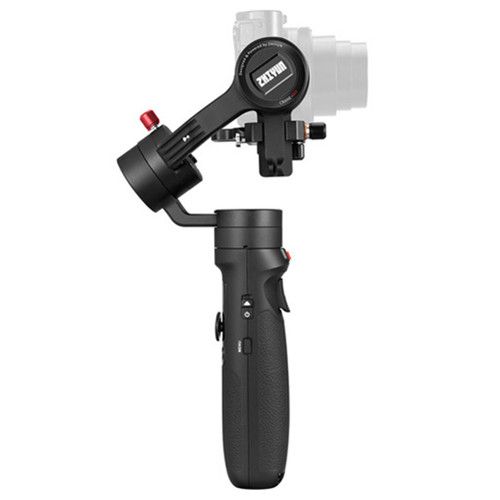

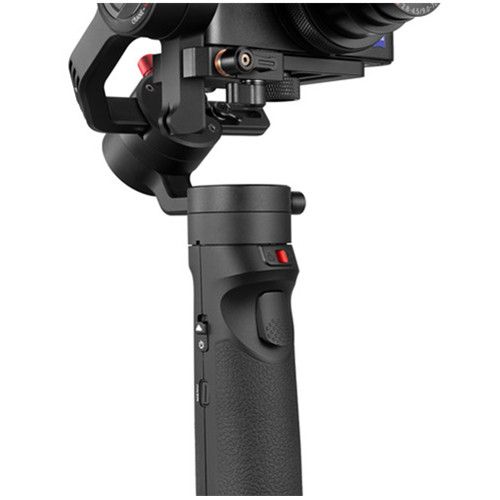

Detailed Images
