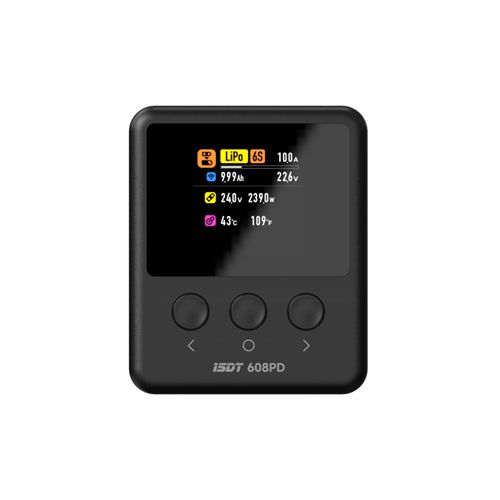

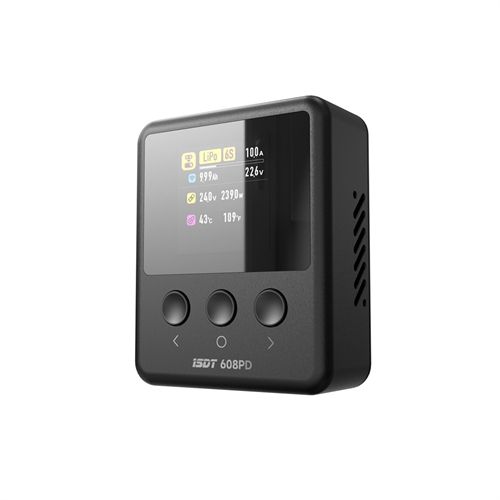

ISDT 608PD DC 240W/10A USB C Smart Digital Charger for LiFe/Lilon/LiPo/LiHV/NiMH/Pb Battery-Black

Part No.:	ISDT-608PD
Manufacturer:	ISDT

Send to a friend

Features

*New generation of pocket chargers: DC 240W high power / max 10A output with USB C 140W/5A max output, meet your multi-scenario high power of Lipo battery charger needs.
*Truly intelligent charger: Support APP connection, fully intelligent battery management, one-click view of battery parameters and charging status.
*IPS screen: Low power consumption, 2.4-inch IPS screen, automatic brightness adjustment, viewing angle 178°, clear and clear display, even in difficult environments or angles, even in strong sunlight.
*Powerful cooling system: Advanced cooling air duct, active design of the cross-flow cooling air duct, initiator ball bearing fan, with precisely engineered aluminium alloy fins and hi-tech silicon heat conducting pad, construction of a highly efficient heat dissipation system.
*Universal charger: Supports charging and discharging for most batteries, including: LiFe, LiPo, LiHv (4.35V~4.50V) 1-6S/Pb 1-12S/NiMH 1-16S, etc.

Product Details

Maximum Input Current: DC 10A, USB-C 5A
Input voltage range: DC 5 - 30V, USB-C 5 - 28V
Output Voltage Range: DC 3.0 - 30V (V)
Charging Current: 0.5 - 10.0A
Maximum charging power: 240W/10A
Maximum Discharge Power: USB-C 100W/5A
Support battery type and series: LiFe, LiPo, LiHv (4.35V - 4.50V) 1 - 6S / Pb 1 - 12S / NiMH 1 - 16S
Balance Current: 0.8A/Cell Max
Operating Temperature: 0 - 40℃ (℃)
Storage Temperature: -20 - 60℃ (℃)
Abnormal battery voltage alarm: Supported
Alarm for serial number setting error: Supported
Dimension: 72.5 × 60 × 26.6mm
Weight: 85g (±10%)

Item Packing

1x ISDT 608PD Lipo Charger
