Holybro Pixhawk 6X Pro Autopilot H753 Flight Controller Module Standard Base PM02D For RC FPV Drone
| Part No.: | HL-20260 |
| Manufacturer: | Holybro |
Send to a friend
Features
* High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (±40 g), perfect for accurate motion sensing in demanding UAV applications
* All New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications
* Triple redundant IMU & double redundant barometer on separate buses
* High performance STM32H753 Processor

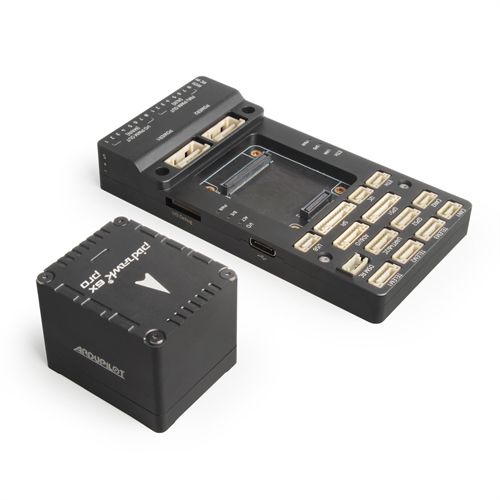

* Modular flight controller: separated IMU, FMU, and Base system
* Safety-driven design incorporates sensors from different manufacturers and model lineups
* Independent LDO powers every sensor with independent power control.
* Ethernet interface for high-speed mission computer integration
* Temperature-controlled IMU board, allowing optimum working temperature of IMUs
* All New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications
* Triple redundant IMU & double redundant barometer on separate buses
* High performance STM32H753 Processor
* Modular flight controller: separated IMU, FMU, and Base system
* Safety-driven design incorporates sensors from different manufacturers and model lineups
* Independent LDO powers every sensor with independent power control.
* Ethernet interface for high-speed mission computer integration
* Temperature-controlled IMU board, allowing optimum working temperature of IMUs
Product Details
Processors & Sensors
FMU Processor: STM32H753
32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
IO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
Accel/Gyro: ADIS16470
±40g, Vibration Isolated, Industrial IMU
Accel/Gyro: IIM-42652
±16g, Vibration Isolated, Industrial IMU
Accel/Gyro: ICM-45686 with BalancedGyro™ Technology
±32g, Hard Mounted
Barometer: ICP20100
Barometer: BMP388
Mag: BMM150
Electrical data
Voltage Ratings:
Max input voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Current Ratings:
Telem1 output current limiter: 1.5A
All other port combined output current limiter: 1.5A
Mechanical data
Dimensions
Flight Controller Module: 38.8 x 31.8 x 30.1mm
Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)
Mini Baseboard: 43.4 x 72.8 x 14.2 mm

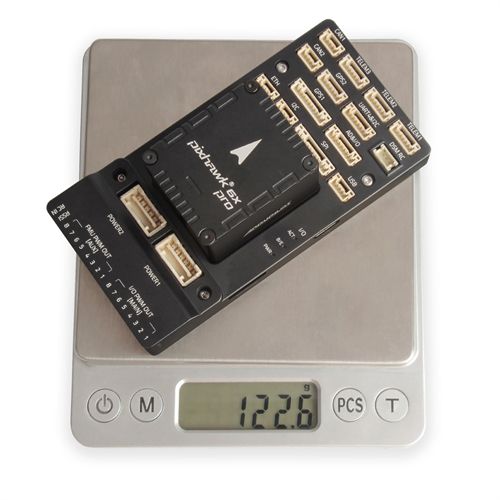

Weight
Flight Controller Module: 50g
Standard Baseboard: 72.5g (Aluminum)
Mini Baseboard: 26.5g

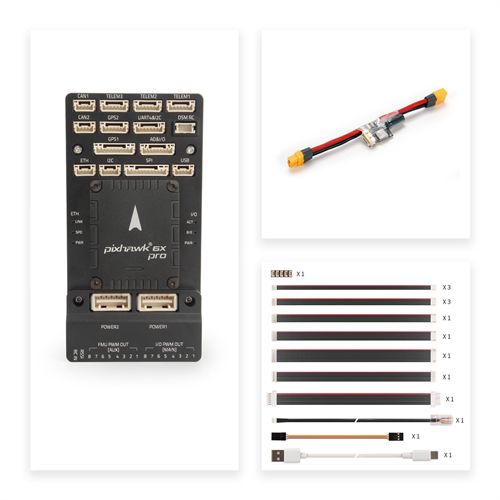

Item Packing
Pixhawk 6X Pro Flight Controller Module x 1
Pixhawk Standard Baseboard x 1
PM02D HV Power Module x 1
Cable Set x 1
Pixhawk Standard Baseboard x 1
PM02D HV Power Module x 1
Cable Set x 1

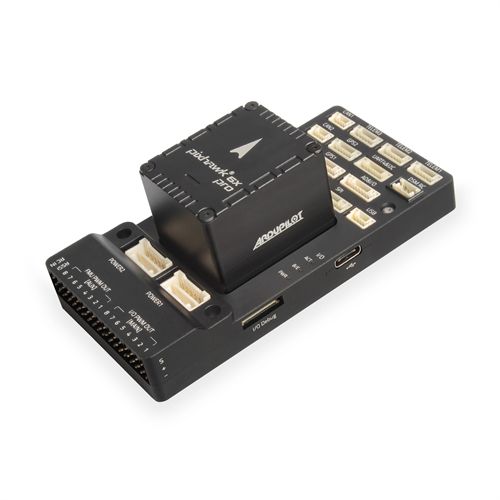

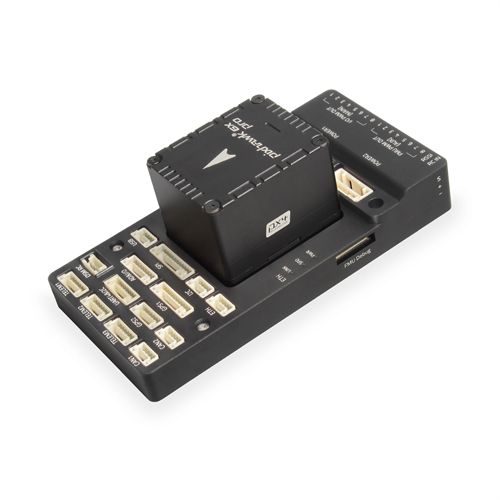

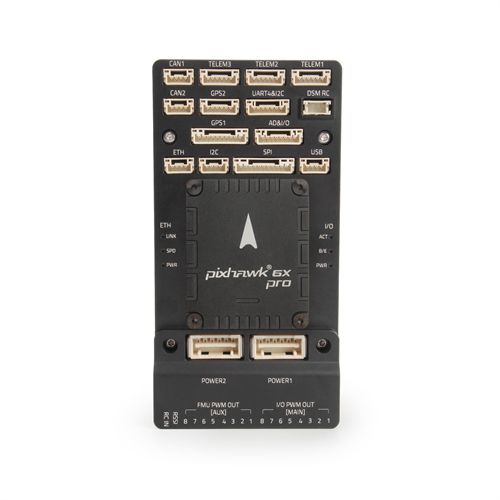

Detailed Images
