JX CLS5830HV Waterproof Metal Gear Digital Servo with 30kg High Torque for RC Car Boat Robot Model Vehicle

JX CLS5830HV Waterproof Metal Gear Digital Servo with 30kg High Torque for RC Car Boat Robot Model Vehicle
Part No.: CLS5830HV
Manufacturer: JX

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

High performance waterproof digital servo
High torque up to 30.3 kg.cm
High-precision steel gears with hard anodizing
CNC aluminium middle hull support a long service life.
Suitable for RC Car Boat Robot



Product Details

CLS5830HV Core motor with 30.3kg High Torque
Dead band:1μs
Working frequence:1520μs / 330hz
Motor:Coreless
Operating Speed:6.0v 0.11 sec/60°
Operating Speed:8.4v 0.09 sec/60°
Stall Torque:6.0v 24.7 kg.cm
Stall Torque : 8.4v 30.3 kg.cm
Dimensions:54X19X41mm
Weight:60 g
Bearing:2BB

Notice:
There may be some deviation due to manual measurement.

Item Packing

1 x Digital Servo
1 x Spare Parts Set

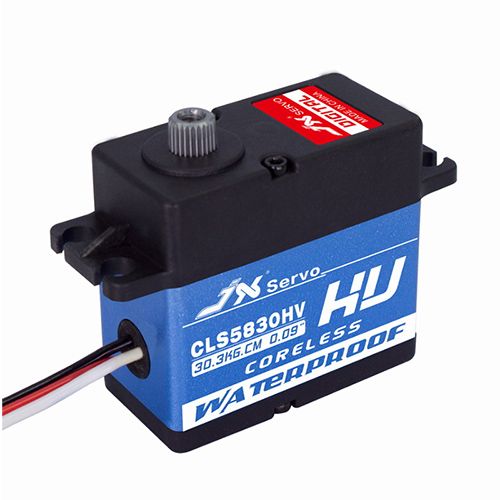

Detailed Images
