FEETECH 4WD Mini Robot Mobile Platform Kit FT-MC-003

FEETECH 4WD Mini Robot Mobile Platform Kit FT-MC-003
Part No.: FT-MC-003
Manufacturer: Feetech Servo

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Mini Robot Mobile Platform uses 4DC motor gear box to drive. The spec the same as FS90R - - High speed up to 100RPM, 1.3kg.cm at 800mA.
Two plastic wheels are press-fit onto DC motor gear box output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and measure 60mm (2.36″) in diameter.
This Mini Robot Mobile Platform frame make with 5051 aluminum alloy and anodize color (The factory default is red. Can do other color if need. ).
Mini Robot Mobile Platform can compatible with Arduino controller.
Easy to add all kinds of sensor and let it to work at your idea.
This is a good start kit for student.

Product Details

Size(L*W*H): 170mm*100mm*60mm
Weight: 138g
Drive: 4WD
Frame: 1.5mm aluminum alloy structure, light weight and high strength
Color: Red(other color if need)
Work voltage: 4.5~6V


Item Packing

DC motor gear box x 4
FS90R-W x 4
Frame x 1
Universal wheel x 1
Screw 1 SET

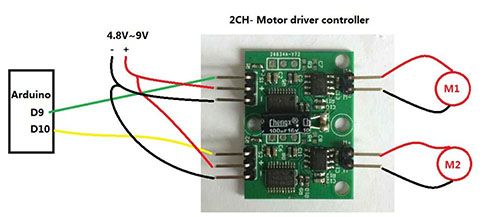

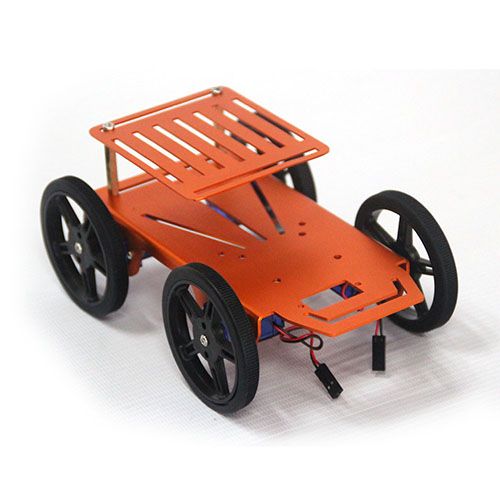

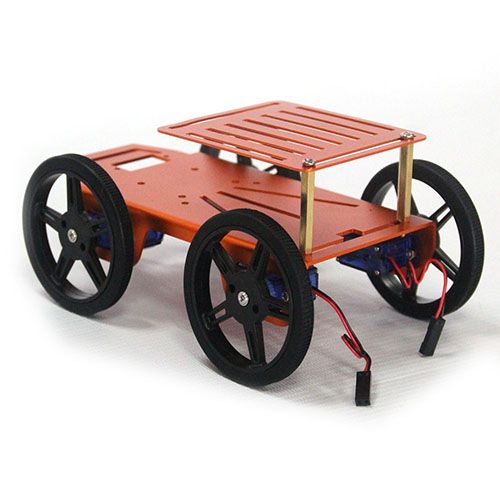

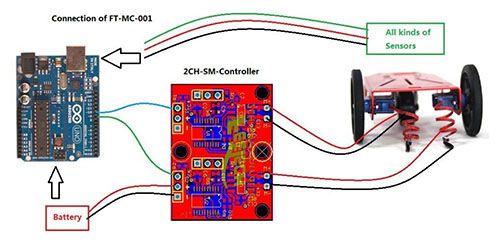

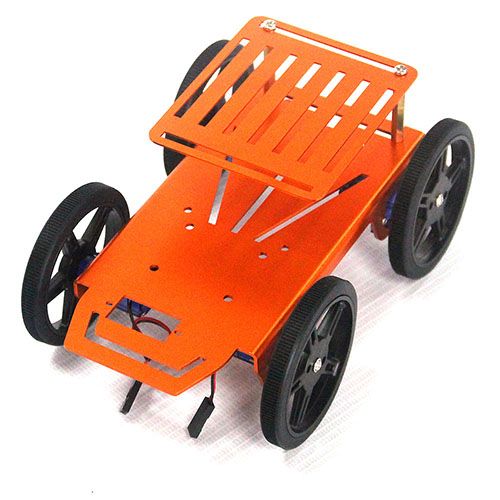

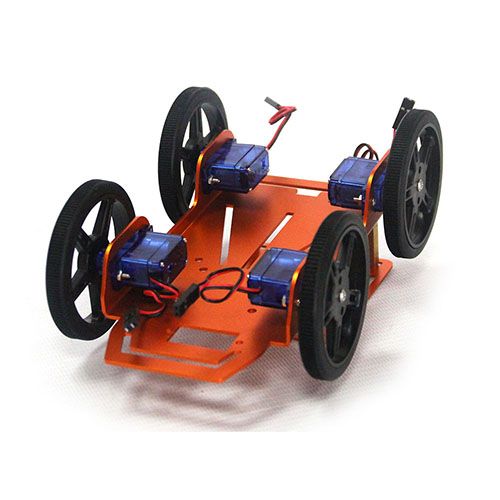

Detailed Images
