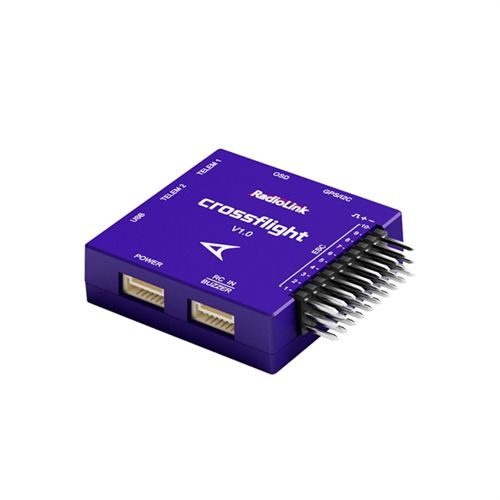

Radiolink New Arrival Crossflight Flight Controller for Drone Helicopter Airplane Helicopter Car Boat
| Part No.: | RL-CROSS |
| Manufacturer: | Radiolink Radio Control |
Send to a friend
Features
Vibration Damping by Software, Better Altitude Hold
Adaptable to Multirotor, Airplane, Helicopter, Car, Boat
Automation Software Testing System: The same Automation Software Testing System as PIXHAWK and Mini Pix helps realizes test automation from the sensor to connection ports and interface. The test efficiency and quality assurance are far superior to traditional manual tests, ensuring the quality of every function of every crossflight.
Adaptable to Multirotor, Airplane, Helicopter, Car, Boat
Automation Software Testing System: The same Automation Software Testing System as PIXHAWK and Mini Pix helps realizes test automation from the sensor to connection ports and interface. The test efficiency and quality assurance are far superior to traditional manual tests, ensuring the quality of every function of every crossflight.
Product Details
* Weight & Dimension
Dimension: 39.7*39.7*13mm (1.56"*1.56"*0.51")
Weight: 16.5g(0.58oz), 54g(1.9oz when all the connect wires included)
* Hardware
Processor: HC32F4A0PITB
* Sensor
Gyro: ICM42670
Compass: VCM5883L
Barometer: LPS22HB
FRAM: Without FRAM, use the internal flash to store parameters, 2617 waypoints for multi-copters, and 2623 waypoints for airplanes.
Buzzer: 1
Switch: without
Connector: JST GH1.25 Connector
PWM Output: 10 PWM Output
Mavlink UART: 2(without CTSRTS)
USB Port: 1(Type-C)
GPS UART/I2C Port: 1
RC In Signal Input: PPM/SBUS
RSSI Output: Do not Support
OSD Module: OSD Module Integrated
ESC Protocol: PWM
DShot Protocol: Do not support
OneShot Protocol: Do not support
RTK: Support
* Power Module Specifications
Input Voltage: 2-12S
Input Current: 90A
Output Voltage: 5.1V
Output Current(BEC): 2.5A
Input Current(connect to one ESC only: 20A
* Adaptable Models: Airplane/3-8 Copters/Helicopter/Car/Boat/Submarine/Radartracker
* Operating Paramteters
USB Voltage: 5V±0.3V
Servo Voltage: Not applicable
Operating Voltage: -40~80℃
Dimension: 39.7*39.7*13mm (1.56"*1.56"*0.51")
Weight: 16.5g(0.58oz), 54g(1.9oz when all the connect wires included)
* Hardware
Processor: HC32F4A0PITB
* Sensor
Gyro: ICM42670
Compass: VCM5883L
Barometer: LPS22HB
FRAM: Without FRAM, use the internal flash to store parameters, 2617 waypoints for multi-copters, and 2623 waypoints for airplanes.
Buzzer: 1
Switch: without
Connector: JST GH1.25 Connector
PWM Output: 10 PWM Output
Mavlink UART: 2(without CTSRTS)
USB Port: 1(Type-C)
GPS UART/I2C Port: 1
RC In Signal Input: PPM/SBUS
RSSI Output: Do not Support
OSD Module: OSD Module Integrated
ESC Protocol: PWM
DShot Protocol: Do not support
OneShot Protocol: Do not support
RTK: Support
* Power Module Specifications
Input Voltage: 2-12S
Input Current: 90A
Output Voltage: 5.1V
Output Current(BEC): 2.5A
Input Current(connect to one ESC only: 20A
* Adaptable Models: Airplane/3-8 Copters/Helicopter/Car/Boat/Submarine/Radartracker
* Operating Paramteters
USB Voltage: 5V±0.3V
Servo Voltage: Not applicable
Operating Voltage: -40~80℃
Item Packing
Flight Control(crossflight)*1

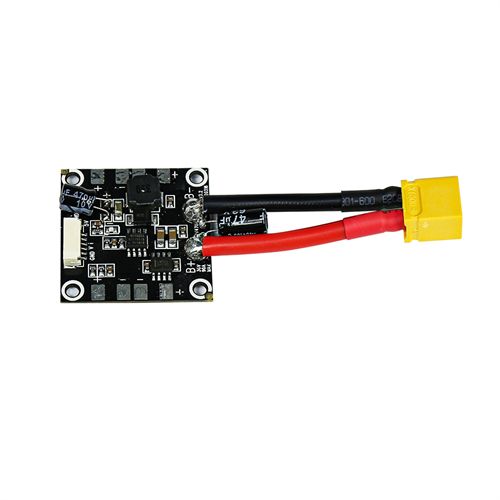

Power Module(Support 2-12S)*1

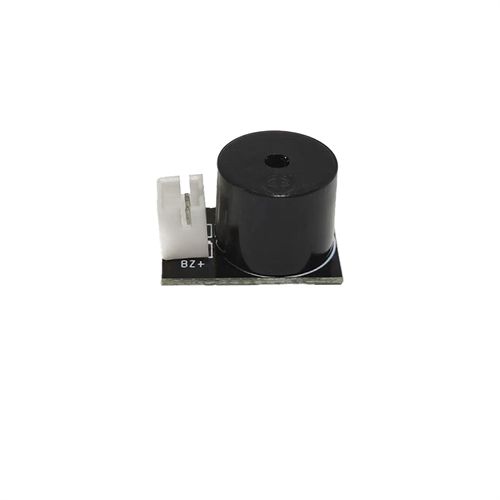

Buzzer*1

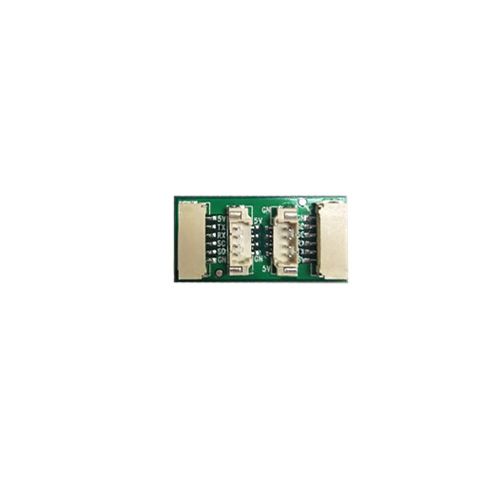

I2C Transfer Board*1

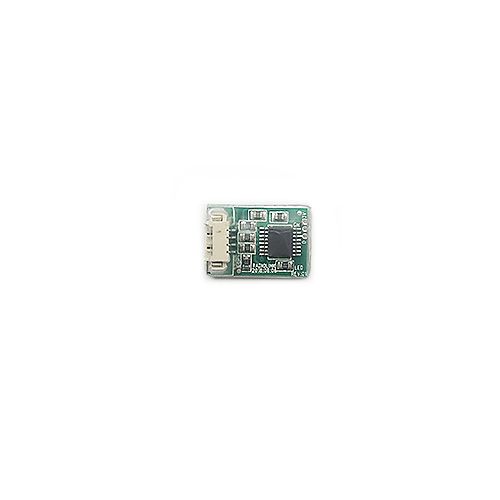

FC Status Indicate LED*1
Buzzer&Receiver Connect Cable*1
Power Module Connect Cable*1
I2C Transfer Board Connect Cable*1
OSD Port Connect Cable*1
TELEM1&2 Ports Connect Cable*2
FC Status Indicate LED Cable*1
Double-sided Adhesive Tape*1
Double-sided Adhesive Tape*1
USB Cable*1
User Manual*1
Packing Box*1
Power Module(Support 2-12S)*1
Buzzer*1
I2C Transfer Board*1
FC Status Indicate LED*1
Buzzer&Receiver Connect Cable*1
Power Module Connect Cable*1
I2C Transfer Board Connect Cable*1
OSD Port Connect Cable*1
TELEM1&2 Ports Connect Cable*2
FC Status Indicate LED Cable*1
Double-sided Adhesive Tape*1
Double-sided Adhesive Tape*1
USB Cable*1
User Manual*1
Packing Box*1
Detailed Images
