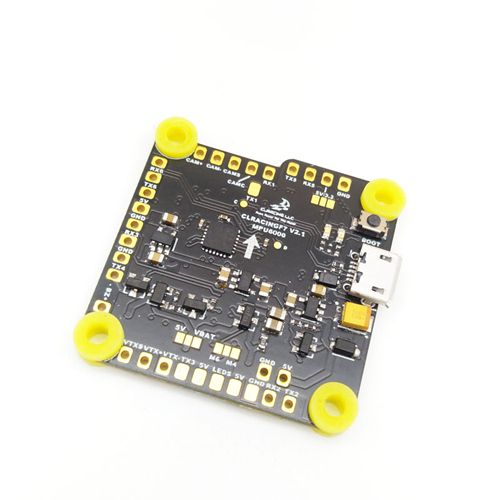

CLRACING F7 MPU6000 V2 Flight Controller 2-8S 5V/3A BEC 32MB Black Box
| Part No.: | CLRA-F7 |
| Manufacturer: | Feixiang |
Send to a friend
Features
CLRACING F7 MPU6000 V2 Flight Controller 2-8S 5V/3A BEC 32MB Black Box
Product Details
1.MCU: STM32F722RET6216MHz
2.Pro.ven noise free MPU6000
3.Build in Beta flight OSD
4.Up to 8S(36V) direct battery power
5.Build in Voltage monitoring resistor
6.Build in 5V/3A BEC and 3.3V/250mA for system
7.Led strip share 5V with 5V/3.0A BEC
8.5V OR VBAT, camera and VTX POWER VIA Pit Switch
9.6 Full UARTS: UART1, UART2, UART3, UART4, UART5, UART6
10.Buildin Camera Control pin with necessary resistor and capacitor near camera connection
11.Buzzerpads for external buzzer
12.VBAT Polarity protection
13.Build in 32MB Blackbox flash chip
14.M4 Can be selected either led strip signal or M4 signal for RPM filtering
Item Packing
CLRacing F7 MPU6000 V2 Flight Controller x 1
Detailed Images
