Hex Optical Flow Sensor Hereflow Fixed Height Indoor Position Module Integrated Lidar 6DIMU for Pixhawk2 3 Cube Pix PX4 PIXHAWK
| Part No.: | HX4-06076 |
| Manufacturer: | HEX |
Send to a friend
Features
Hardware specification

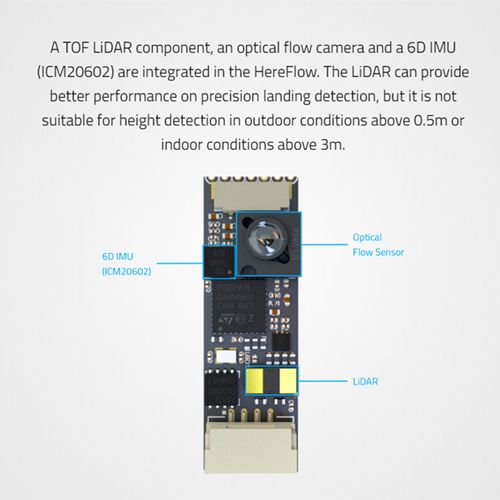

Built in ultra small LiDAR module CAN Protocol, which provide more reliable communication IMU Module PMW3901 Optical Flow Sensor. Effective ranges from 80 mm to infinity.
Built in ultra small LiDAR module CAN Protocol, which provide more reliable communication IMU Module PMW3901 Optical Flow Sensor. Effective ranges from 80 mm to infinity.
Product Details
Specification
* Weight：1g

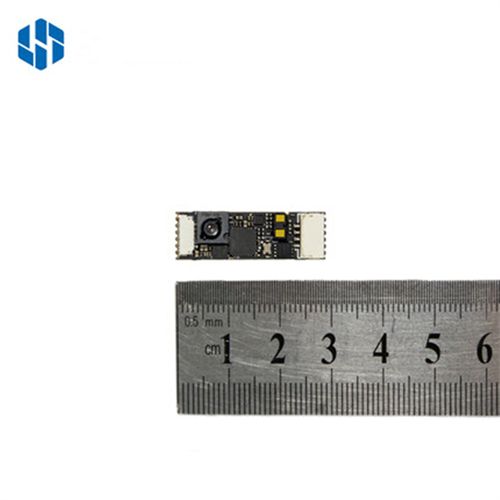

* Size：28.8mm x 9.5mm
Optical Flow Sensor Specification
* Range：80mm to infinity
* Field of view：42 degree
* Maximum movement speed：7.4 rad/s
* Minimum illumination：> 60 lux
* Infrared emitter：940 nm invisible light emission (Class1)
* Operating temperature：-20 to +70°C
* Interface：CAN
* Power supply：5V
LiDAR Specification
* Measuring frequency：Up to 50 Hz
* Field of view：27 degree
* Longest distance：2m
* Accuracy：±3%
* Infrared emitter：940 nm invisible light emission (Class1)
* Operating temperature：-20 to +70°C
* Interface：CAN
* Power supply：5V

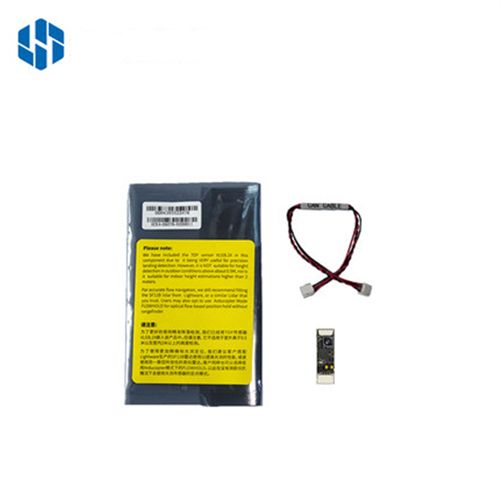

Item Packing
CAN CABLE x1
HereFlow x1
HereFlow x1
Detailed Images
