Jumper T16 Open Source Multi-protocol Radio Transmitter

Jumper T16 Open Source Multi-protocol Radio Transmitter
Part No.: Jumper-T16
Manufacturer: Jumper

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

STM32F429BIT6 MCU
Industrial grade 4.3 inch 480*272 outdoor readable color screen
Compatible with JumperTX and OpenTX firmware
Wheel menu button
Angle adjustable ultra-smooth dual bearing gimbals
Multi-protocol transmitter module with TBS CRSF support
Removable battery
Supports Telemetry
Memory 16M (can be expanded by TF card)
Voice function
Vibration reminder function
Standard JR module slot
6-Flight Mode Buttons (for APM and Pixhawk flight controllers)
Two-color LED status display

Product Details

Channels: 16
Voltage: DC7-8.4V
Battery: 2x 18650 (tray supplied) or 2S LiPo (batteries not included)
Current: 350mah (NO CRSF)
Dimensions: 180x190x58mm
Weight: 788g

JP4-in-1
Working Voltage: 6-9v
Working current: <=100ma
Operating frequency: 2.4G ISM band
RF power: +22DBM
Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
Module bay compatibility: FRSky, Jr and other dimensions: 64*49*33 (without antenna)
Net Weight: 42g (including antenna)
Software Compatibility: Suitable for radios using OpenTX or er9x/ersky9x
Firmware updatable: Yes, via USB.

RF Chip
Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futaba SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN, and most other Chinese models

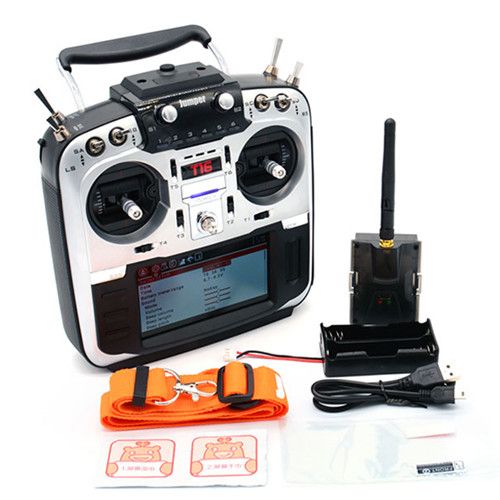

Item Packing

1x Jumper T16 Radio Transmitter
1x Li-Ion Battery Tray  (Battery is NOT included, 2x 18650 Li-Ion batteries are recommended)
1x USB Cable
1x Neck Strap
1x Screen Protector
1x Gimbal Parts

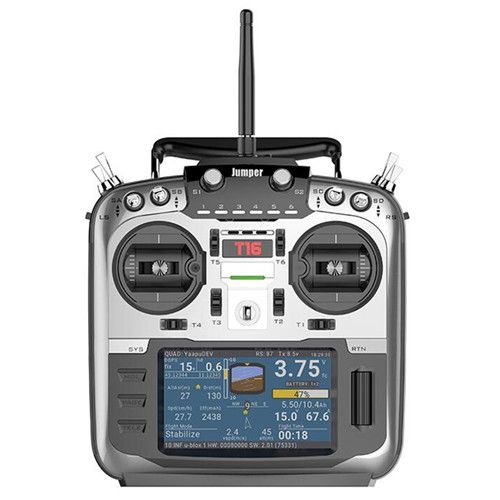

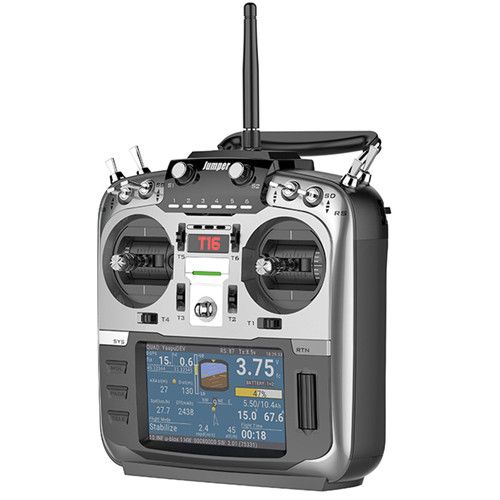

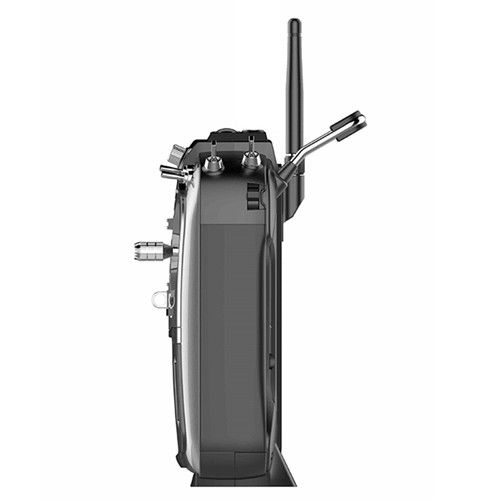

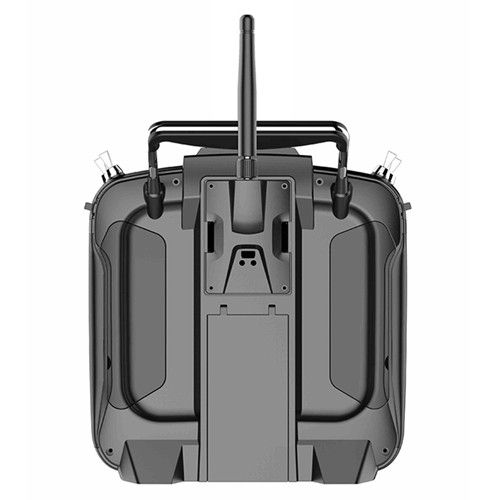

Detailed Images
