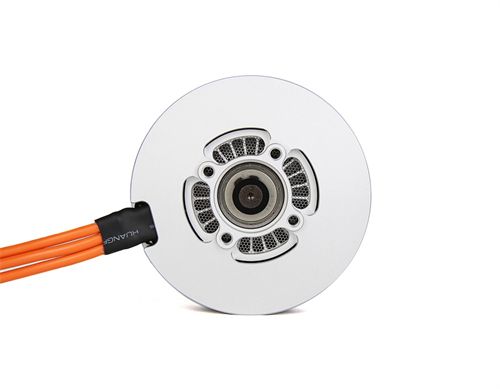

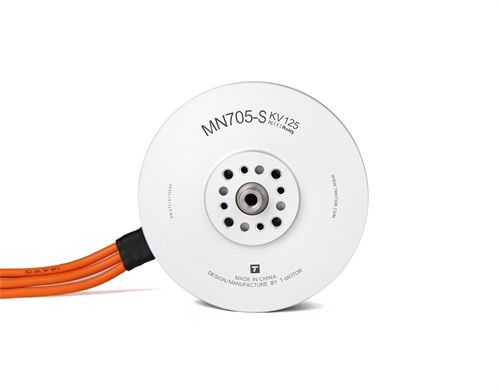

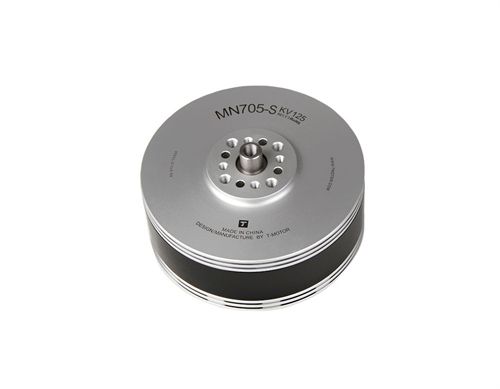

MN705-S T-MOTOR KV125 Brushless motor two piece set working rated voltage12S maximum power2200W

Part No.:	MN705-S
Manufacturer:	T-MOTOR

Send to a friend

Features

*The centrifugal fan design of the bell cap actively cools the motor. The divergent and upward fin design of the motor base enlarges the heat dissipation area. The heat dissipation performance is 15% better than that of ordinary motors.
*Manual winding with special varnished wires of high temperature resistance.
*Magnets of high temperature resistance are employed for motor heat and overload resistance.
*The MIN601S adopts a semi-closed design. The grid-shaped structure of the bell cap allows efficient ventilation while protecting the motor from dust and other debris. The grid-shaped inlet holes on the base further keep the motor away from foreign objects even when the motor is mounted upside down.
*The alloy shaft, bearing, varnished wires, silicon steel sheet, magnet and bell are treated with the latest anti-rust and anti-corrosion technology, providing remarkable protection for the motor parts.

Product Details

Motor Size: 79.2*42.4mm.
Stator: Imported silicon steel sheet with anti-rust treatment and 180°C high temperature-resisting coatings.
Configuration: 24N28P.
Shaft Diameter: IN: 8mm, OUT: 8mm.
Bearing: Imported 608ZZ.
Magnet Level: 150°C high temperature resistance.
Lead Cable: 14AWG*150mm.
Copper Wire: 220°C high temperature resistance, Level C.
Coil Insulation Test: 500V.
Centrifugal Cooling Design: YES.
Rotor Dynamic Balance Standard: s5Mg.
Motor Dynamic Balance Standard: s10Mg.
IP: IP45.
KV: 125.
Rated Voltage (Lipo): 12S.
Idle Current(22V): 1.4A.
ESC Recommendation: FLAME 60A 12S, FLAME 80A 12S V2.0.
Peak Current(180s): 45A.
Propeller Recommendation: 26 - 27".
Max. Power (180s): 2200W.
Internal Resistance: 63m.
Motor Weight (Indl. Cable): 450g.
Package Weight: 1250g(2PCS/SET).

Item Packing

2×MN705-S T-MOTOR KV125 Brushless motor
