SUNNYSKY EOLO 50A Industry ESC Support 3-6S Voltage For Industrial Rating Multi-rotor UAV

SUNNYSKY EOLO 50A Industry ESC Support 3-6S Voltage For Industrial Rating Multi-rotor UAV
Part No.: EOLO-50A
Manufacturer: SUNNYSKY

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Wide Application: Construction Industry、Aerial Photography And Survey、Powerline Inspection、Security Monitoring、Precision Agriculture、Disaster Rescue。

EOLO ESC has PCBA Nano waterproof coatingand anti-corrosion housing with IP67 protectionlevel that can avoid rain , dust and corrosion fromCorrosive liquid like salt mist . The full protectionfor ESC ensure its stable performance in badworking condition and weather.

High efficiency, low noise and fast response. Extreme dissipation structure, advanced control algorithm for precise and fast motor driving control.

POST Protection, Locked-rotor protection , over-current protection , over-temperatureprotection , throttle signal lost protection . The multi-protection function can reliablyprotect power system from damage by accident.

Product Details

ESC Model: EOLO 3-6S 50A
Maximum allowed voltage: 25.2V
Maximum allowed current: 50A
Maximum allowed peak current(3s): 70A
OneShot125 Maximum compatible signal frequency: 500 Hz
Maximum compatible normal signal frequency: 500 Hz
PWM Default output frequency: 16 KHz
Power cord: 400mm/16AWG
Motor wire: 100mm/16AWG
ESC weight(wire included): about63 g
Battery support: 3S - 6S LiPo
Working temperature: -20 - 40°C
Motor recommended use( including but not limited): 3506、3508、3510、3708、3712、3515、3520、4004、4006、4008、4010、4012、4014、 4110、4112、4115、4510、4806、4808、4810、5008、5010、5208、5210、5212、5310、 5312、6008、6010、6210、7204、7205、7206、7208、8108、8110、8114

Item Packing

EOLO 50A ESC x 1

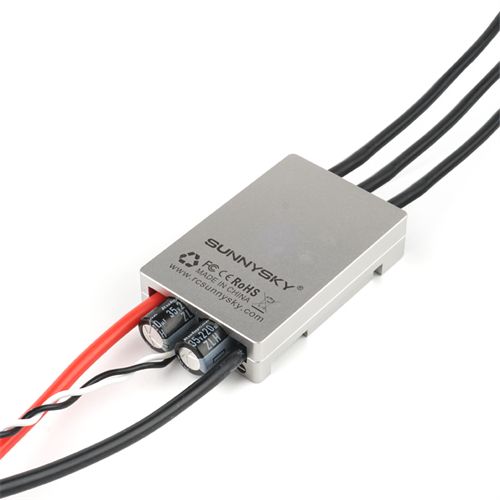

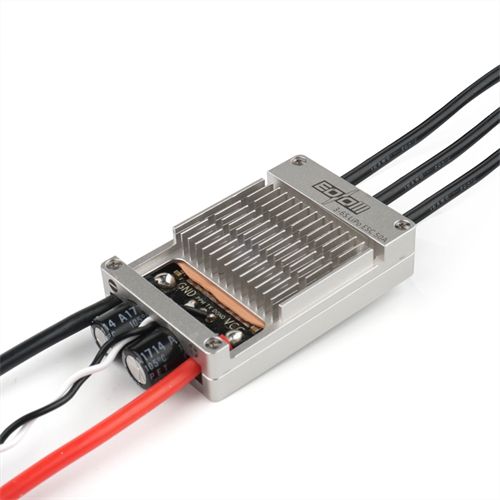

Detailed Images
